Sony HCD-GNZ5D - Disassemble Motor (TB) Board; Disassemble Motor (LD) Board

18
HCD-GNZ5D

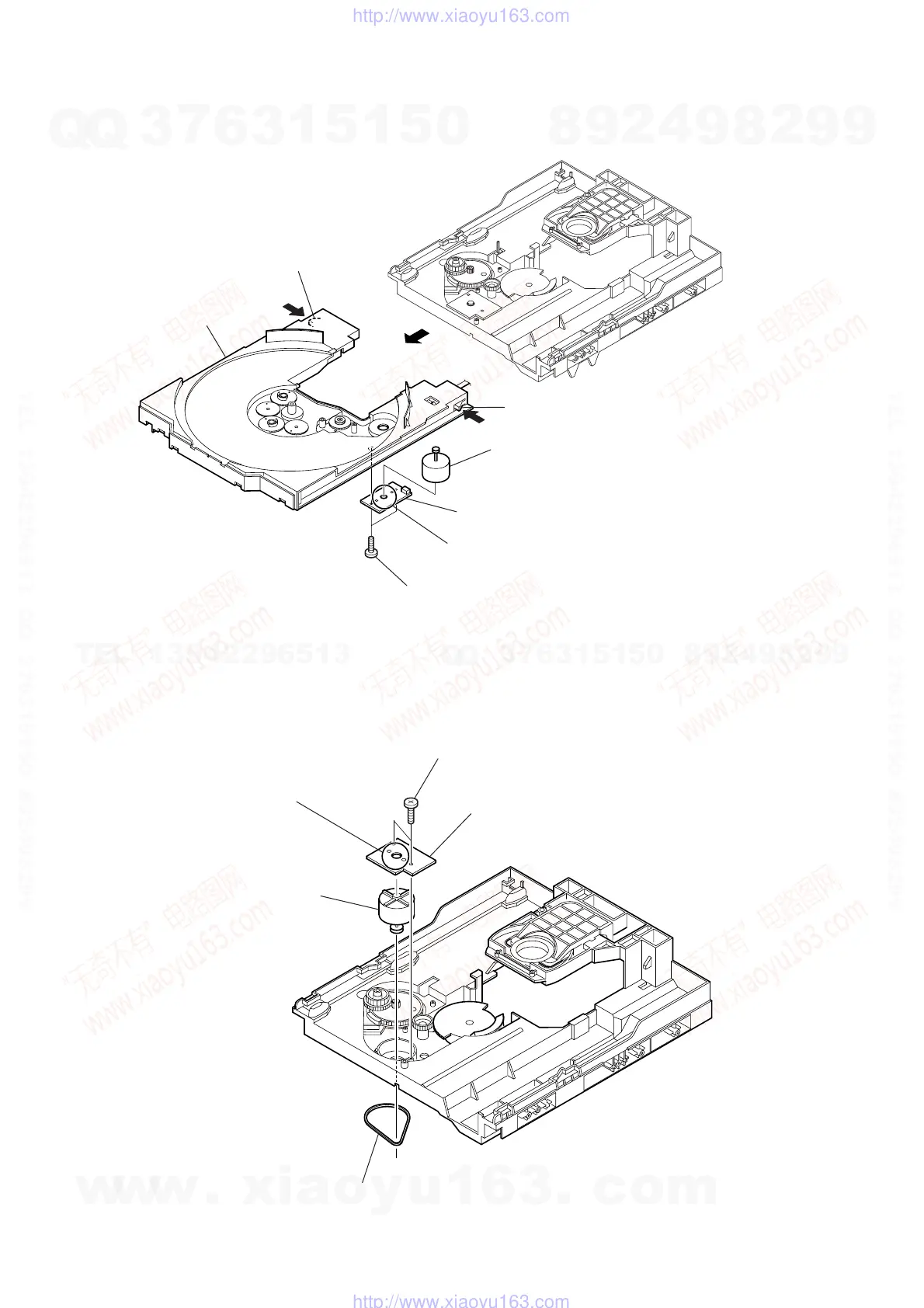

3-15. MOTOR (TB) BOARD
3-16. MOTOR (LD) BOARD
5 Remove the two solders of motor.
4 MOTOR (TB) board
2 stopper
2 stopper
6 table motor assy (M741)
table assy
3 two screws
(+BTTP (M2.6))
1
4 Remove the two solders of motor.
3 MOTOR (LD) board
1 belt (loading)
5 loading motor assy (M751)
2 two screws
(+BTTP (M2.6))
