HCD-GNZ5D

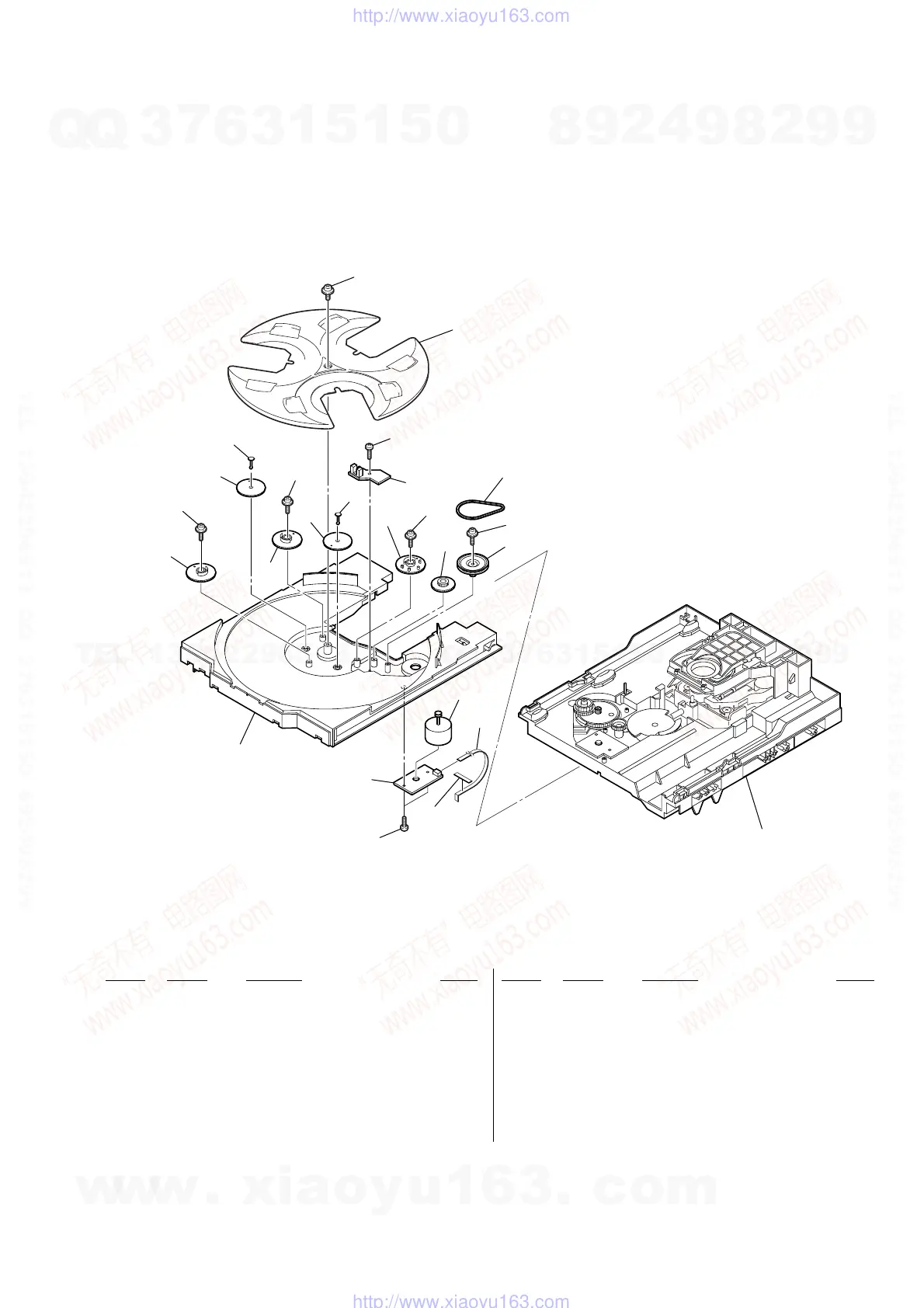

8-8. DVD MECHANISM DECK SECTION (1)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
351 4-218-253-62 SCREW (M2.6), +BTTP
352 1-776-182-11 WIRE (FLAT TYPE) (5 CORE)
353 1-687-134-12 MOTOR (TB) BOARD
354 4-243-815-11 TABLE (LOADING)
355 4-245-571-02 GEAR (STOPPER)
356 4-218-252-61 SCREW (+PTPWH M2.6), FLOATING
357 4-245-570-01 GEAR (JOINT)
358 4-245-572-01 BUSHING (GEAR)
359 1-687-132-12 SENSOR BOARD
360 4-243-820-01 GEAR (TABLE)
361 4-243-819-01 GEAR (GENEVA)
362 4-243-816-21 TRAY
363 4-243-823-01 BELT (TABLE)
364 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
365 4-243-821-01 PULLEY (TABLE)
366 3-231-598-01 SHEET (BA)
M741 A-1108-965-A MOTOR ASSY, TABLE (TABLE)
351
352
366
353
354
355
355
356
356
357
357
358
358
359
351
356
362
363
364
365
360
361
364
M741
