64
HCD-GNZ5D
SECTION 8
EXPLODED VIEWS
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Accessories are given in the last of this
parts list.
• Abbreviation
E3 : 240 V AC area in E model
E12 : 220 – 240 V AC area in E model
E13 : 220 – 230 V AC area in E model
E15 : Iran model
PH : Philippine model
Ref. No. Part No. Description Remark

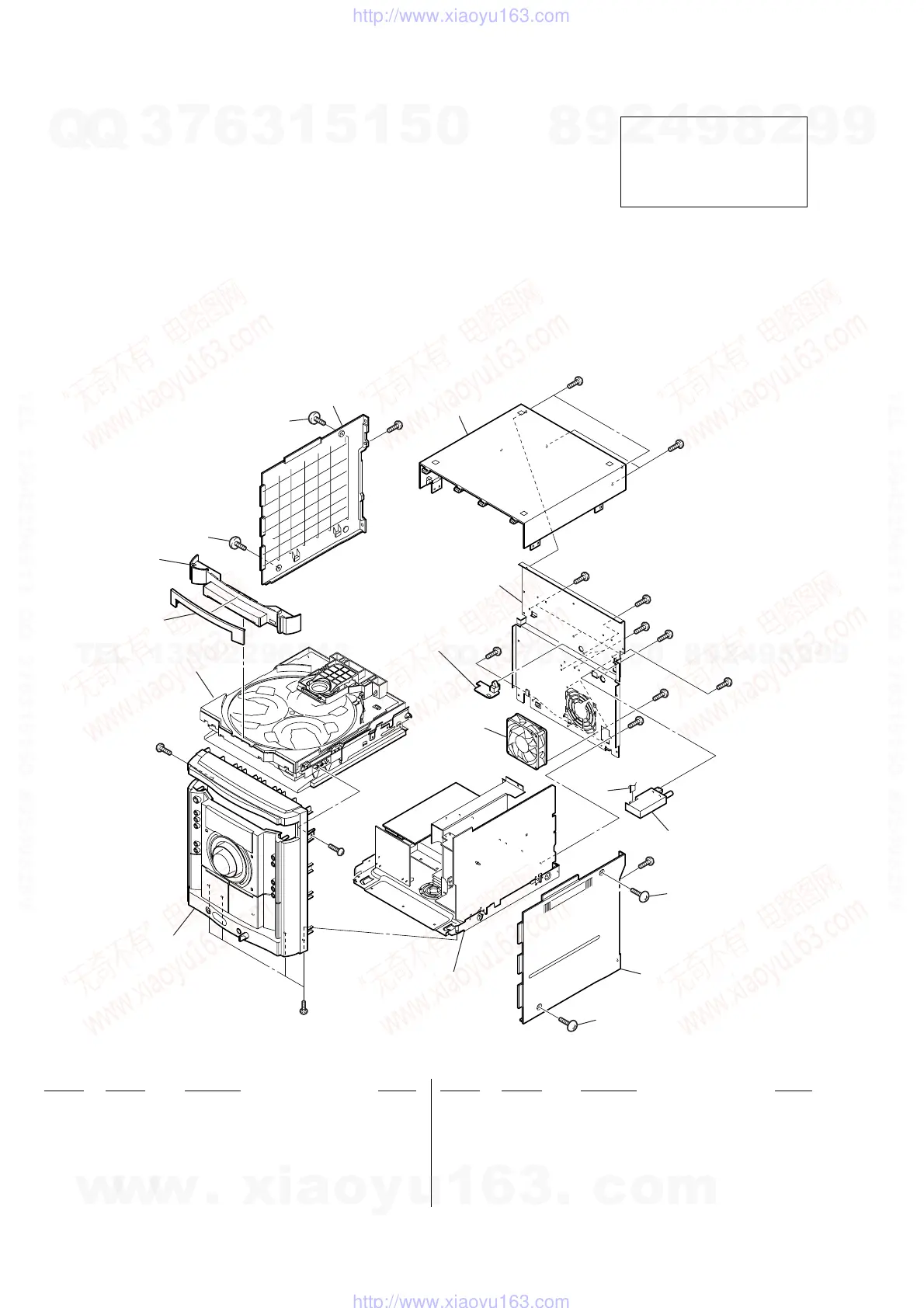

8-1. MAIN SECTION
Ref. No. Part No. Description Remark
1 2-582-718-31 ESCUTCHEON (LOADING)
2 2-582-709-51 PANEL, LOADING
3 3-363-099-02 SCREW (CASE 3 TP2)
4 3-363-099-32 SCREW (CASE 3 TP2)
5 4-245-183-71 CASE (SIDE-L)
6 4-244-849-71 CASE (TOP)
7 1-828-956-11 WIRE (FLAT TYPE) (9 CORE)
8 4-245-184-71 CASE (SIDE-R)
FAN901 1-763-072-11 FAN, DC
TN1 1-693-671-11 TUNER (FM/AM) (TM-10E)
#1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT (B)
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
#2
#2
#2
#1
#1
#2
#2
#
#2
#1
#1
#1
#1
#2
FAN901
not supplied
not supplied
(OPTICAL board)
front panel
section
chassis section
DVD block section
TN1
