Sony HCD-GNZ5D - Disassemble DVD Mechanism, Video, DMB11 Boards; Disassemble Pick-up Unit

16
HCD-GNZ5D

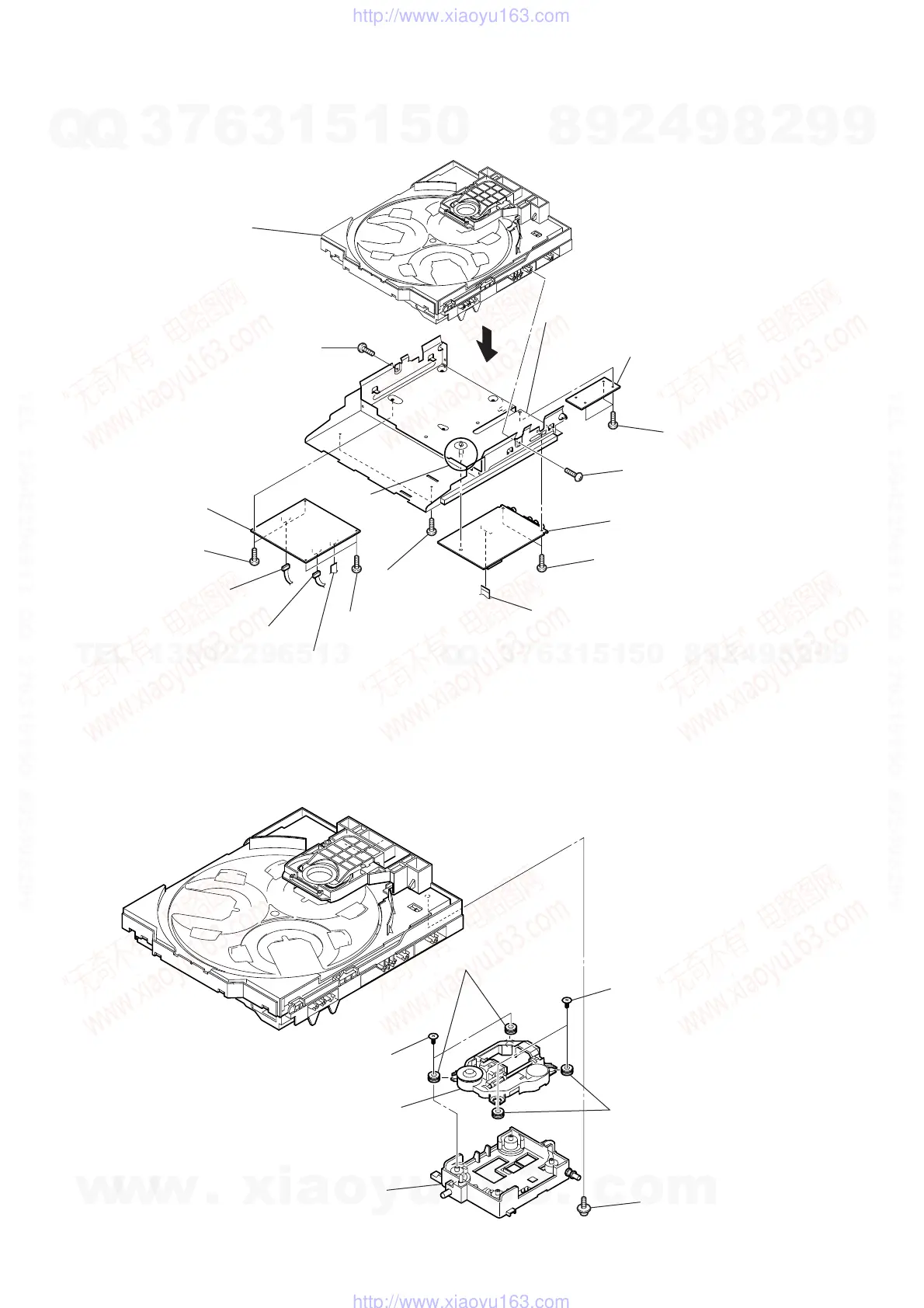

3-12. PICK-UP UNIT
3-11. DVD MECHANISM BLOCK, VIDEO BOARD, DMB11 BOARD
qf screw
(+BVTP 3
× 8)
qj bracket (DVD)
qg screw
(+BVTP 3
× 8)
qh
3
two screws
(+BVTT 3
× 6)
6 three screws
(+BVTT 3
× 6
)
0 two screws
(+BVTT 3
× 6)
qd two screws
(+BVTP 3
× 8)
qa two screws
(+BVTT 3
× 6)
5 VIDEO board
7 REINFORCE (CDM) board
qs DMB11 board
8 CN201 (6P)
9 CN101 (24 core)
qk DVD mechanism block
2 CN401 (5P)
1 CN801 (5P)
4 claw
2 two insulator screws
4 two insulators
5 two insulators
3 two insulator screws
6 pick-up unit
7 holder (310)
1 floating screw
(+PTPWH M2.6
)
Note : Be short-circuited of the land of optical pick-up when CN101
is done in pulling out.
