HCD-GNZ7D/GNZ8D/GNZ9D

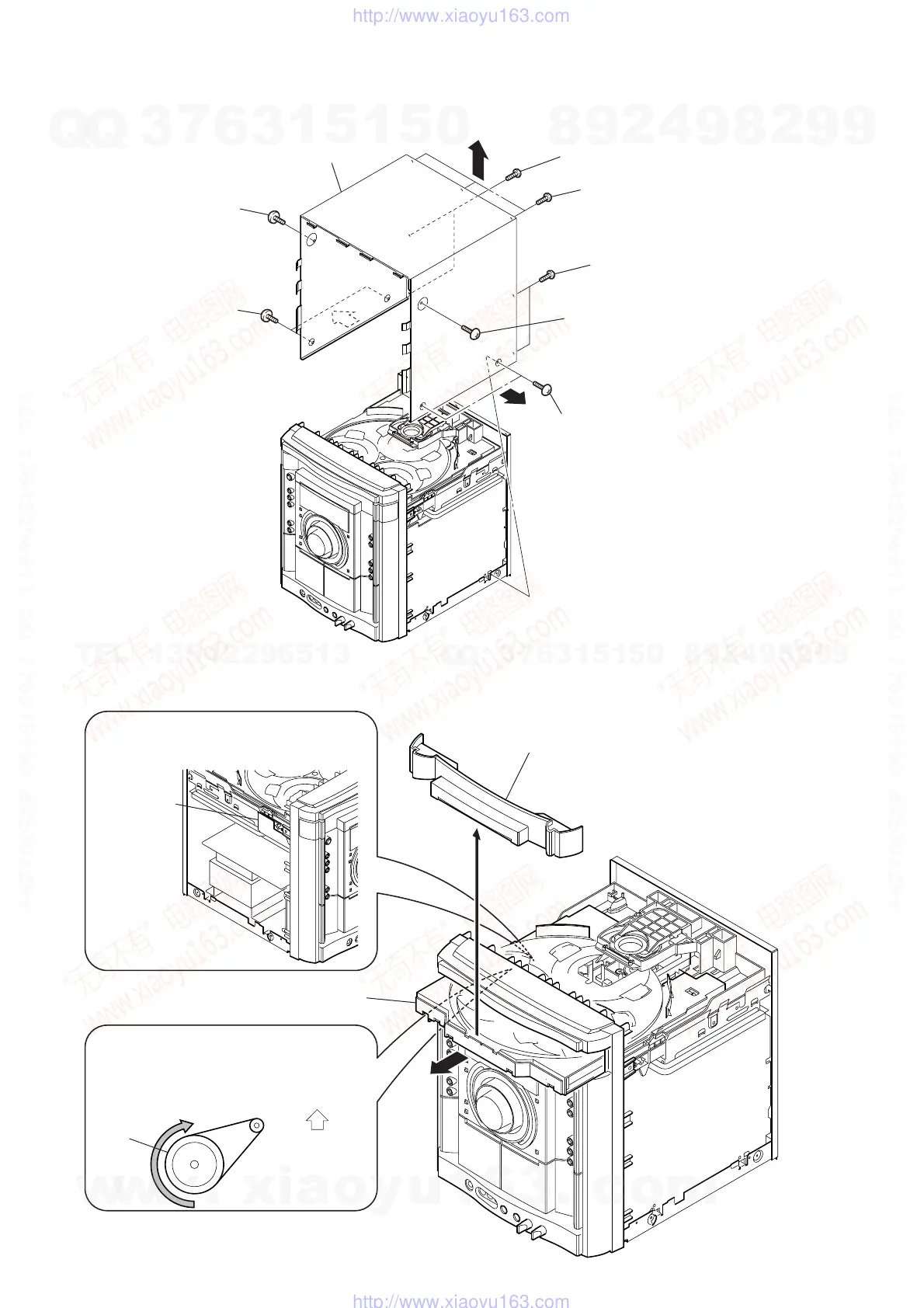

3-2. LOADING PANEL ASSY
Note : Follow the disassembly procedure in the numerical order given.
3-1. CASE
1
two screws
(case 3 TP2)
2
screw
(case 3 TP2)
4
screw
(case 3 TP2)
3
two screws
(case 3 TP2)
6
two screws (+BVTT 3
×
6)
0
case
5
three screws
(+BVTT 3
×
6)
7
two screws
(+BVTT 3
×
6)
8
8
9
3
Pull-out the disc tray.
5
loading panel assy
2
Turn the pulley to the direction of arrow.
1
The DVD mechanism block has a cover.
So the pulley may not be rotated unless
the cover is opened.
pulley
Front panel side
CD mechanism deck (CDM74HF)
cover (B-CDM)
