HCD-GNZ7D/GNZ8D/GNZ9D

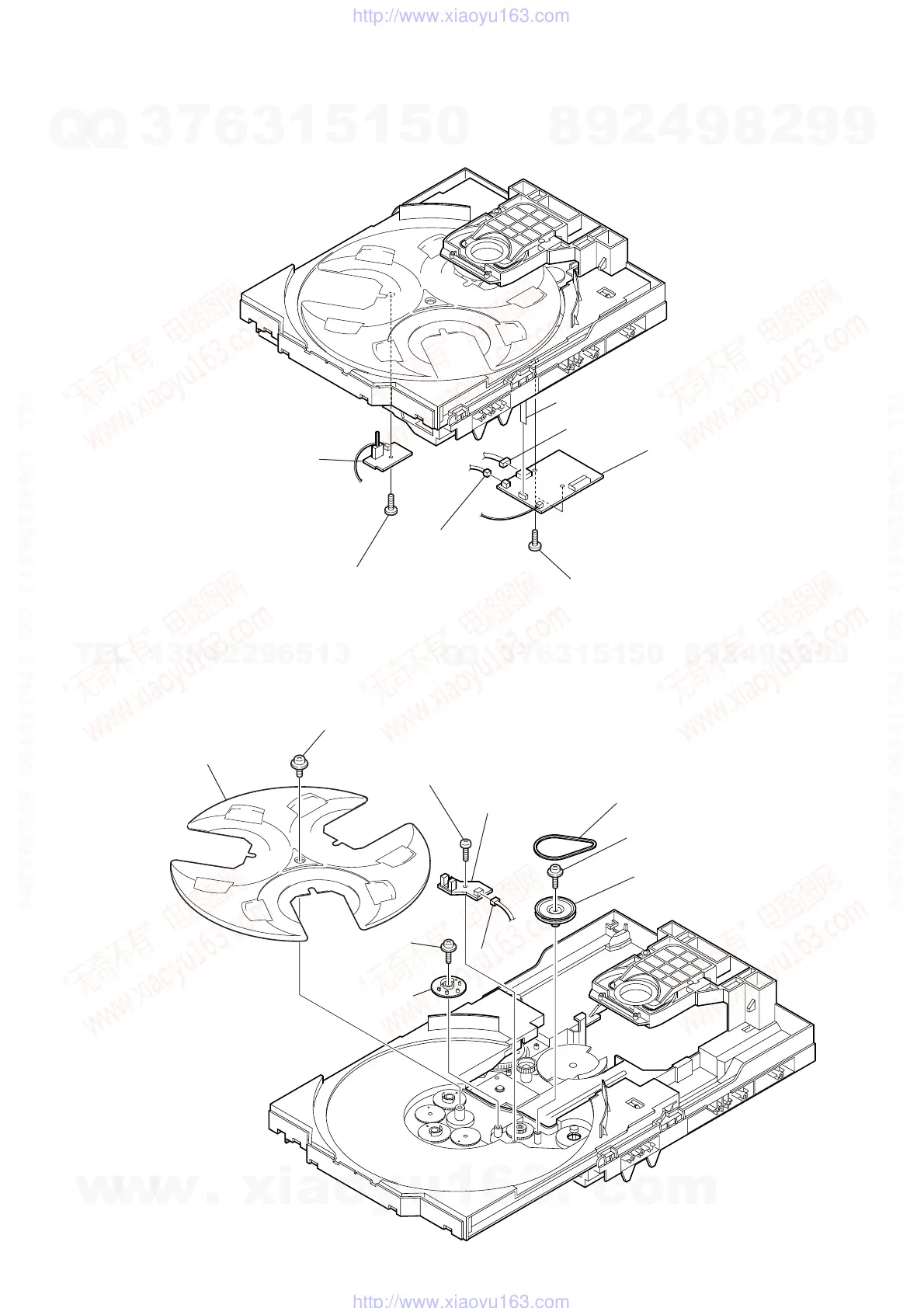

3-15. SW BOARD, DRIVER BOARD
6 DRIVER boar
d
2 SW board
3 CN704
4 CN703
7 CN702 (flat type)
5 two screws
(+BTTP (M2.6))
1 screw
(+BTTP (M2.6))
3-16. SENSOR BOARD
2 tray
3 belt (table)
5 pulley (table)
8 screw
(+BTTP (M2.6))
9 SENSOR board
7 gear (geneva)
0 CN731
1 floating screw
(+PTPWH M2.6)
6 floating screw
(+PTPWH M2.6)
4 floating screw
(+PTPWH M2.6)
