HCD-GNZ7D/GNZ8D/GNZ9D

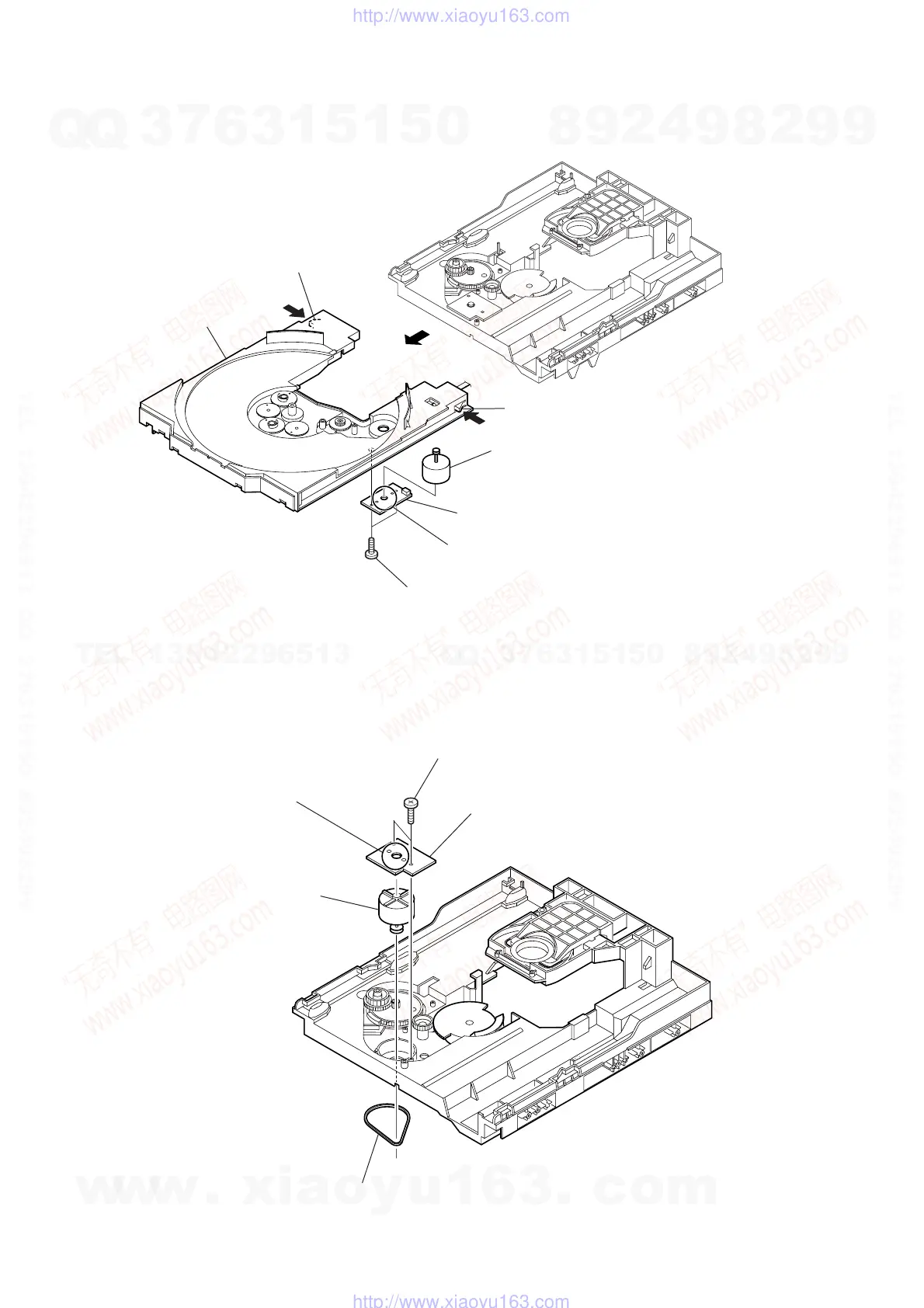

3-17. MOTOR (TB) BOARD
3-18. MOTOR (LD) BOARD
5 Remove the two solderings of motor.
4 MOTOR (TB) board
2 stopper
2 stopper
6 table motor assy (M741)
table assy
3 two screws
(+BTTP (M2.6))
1
4 Remove the two solderings of motor.
3 MOTOR (LD) board
1 belt (loading)
5 loading motor assy (M751)
2 two screws
(+BTTP (M2.6))
