76
HCD-GNZ7D/GNZ8D/GNZ9D

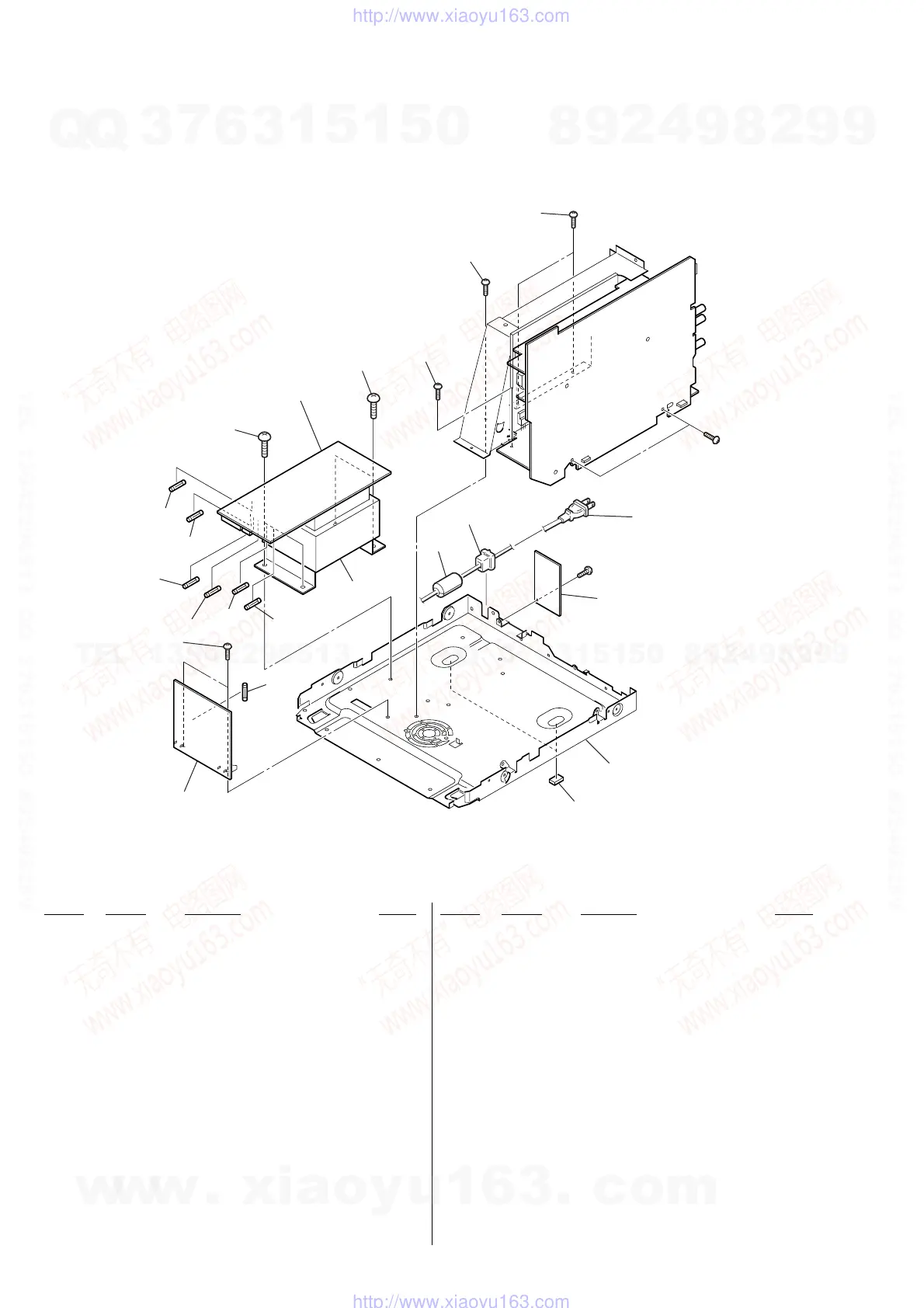

8-6. CHASSIS SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
251 4-233-980-01 RUBBER, FOOT
252 4-900-386-01 SCREW
253 3-703-244-00 BUSHING (2104), CORD
(EXCEPT E2,E3,E15,MX)
* 253 3-703-571-12 BUSHING (S) (4516), CORD (E2,E3,E15,MX)
0 254 1-696-847-22 CORD, POWER (AUS)
0 254 1-777-071-23 CORD, POWER (E12,E13,E51,EA,SP,PH)
0 254 1-824-818-21 CORD, POWER (WITH CONNECTOR) (TH)
0 254 1-827-226-11 CORD, POWER (E2,E3,E15,MX)
0 255 1-468-737-21 POWER, SWITCHING
256 1-500-386-11 FILTER, CLAMP (FERRITE CORE) (AUS,EA)
257 2-630-050-01 +BVTT 3X6 (SUMITITE)
0 F910 1-532-505-32 FUSE (5A/250V)
(GNZ7D:EXCEPT E12,E13,TH)
0 F910 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (8A/250V)
(GNZ8D:EXCEPT E12,E13,TH/
GNZ9D:EXCEPT E12,E13,AUS,TH)
0 F914 1-532-506-33 FUSE (6.3A/250V) (GNZ7D/GNZ8D)
0 F914 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (8A/250V)
(GNZ9D)
0 F915 1-532-506-33 FUSE (6.3A/250V) (GNZ7D/GNZ8D)
0 F915 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (8A/250V)
(GNZ9D)
0 F916 1-532-506-33 FUSE (6.3A/250V) (GNZ8D/GNZ9D)
0 F917 1-532-506-33 FUSE (6.3A/250V) (GNZ8D/GNZ9D)
0 F918 1-532-504-33 FUSE (4A/250V) (GNZ7D)
0 F918 1-532-505-33 FUSE (5A/250V) (GNZ8D/GNZ9D)
0 F919 1-532-504-33 FUSE (4A/250V)
0 T911 1-443-174-11 TRANSFORMER, POWER (GNZ7D:EXCEPT EA)
0 T911 1-443-175-11 TRANSFORMER, POWER (GNZ7D:EA)
0 T911 1-443-352-11 TRANSFORMER, POWER (GNZ8D:EXCEPT EA)
0 T911 1-443-362-11 TRANSFORMER, POWER (GNZ8D:EA)
0 T911 1-443-690-11 TRANSFORMER, POWER
(GNZ9D:EXCEPT EA,MX)
0 T911 1-443-691-11 TRANSFORMER, POWER (GNZ9D:EA,MX)
#2 7-685-871-01 SCREW +BVTT 3X6 (S)
251
252
252
253
256
257
257
257
257
254
255
F917
F916
F910
F914
F915
F918
F919
T911
#2
#
2
not supplied
not supplied
(TRANS board)
