HCD-GNZ7D/GNZ8D/GNZ9D

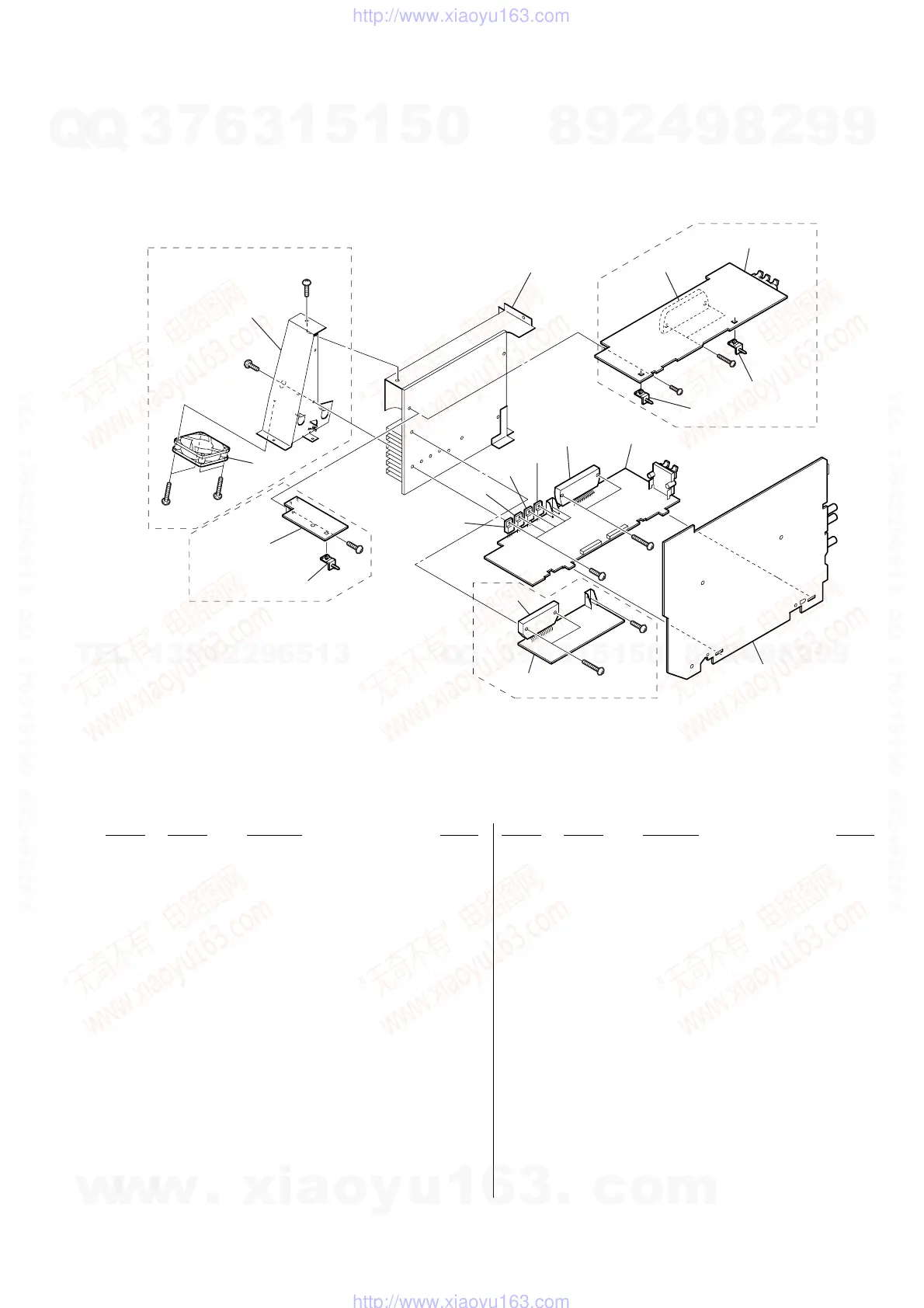

8-7. AUDIO BOARD SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
301 A-1095-768-A AUDIO BOARD, COMPLETE
(GNZ9D:EXCEPT E2,TH)
301 A-1095-769-A AUDIO BOARD, COMPLETE (GNZ8D:EXCEPT TH)
301 A-1095-770-A AUDIO BOARD, COMPLETE
(GNZ7D:EXCEPT E2,TH)
301 A-1111-480-A AUDIO BOARD, COMPLETE (GNZ9D:TH)
301 A-1111-481-A AUDIO BOARD, COMPLETE (GNZ8D:TH)
301 A-1111-482-A AUDIO BOARD, COMPLETE (GNZ7D:TH)
301 A-1122-987-A AUDIO BOARD, COMPLETE (GNZ9D:E2)
301 A-1122-988-A AUDIO BOARD, COMPLETE (GNZ7D:E2)
302 A-1095-778-A SUBWOOFER BOARD, COMPLETE
(GNZ9D:EXCEPT TH)
302 A-1111-488-A SUBWOOFER BOARD, COMPLETE (GNZ9D:TH)
303 A-1095-771-A FRONT AMP BOARD, COMPLETE
(GNZ9D:EXCEPT TH)
303 A-1095-772-A FRONT AMP BOARD, COMPLETE
(GNZ8D:EXCEPT TH)
303 A-1095-773-A FRONT AMP BOARD, COMPLETE
(GNZ7D:EXCEPT TH)
303 A-1111-483-A FRONT AMP BOARD, COMPLETE (GNZ9D:TH)
303 A-1111-484-A FRONT AMP BOARD, COMPLETE (GNZ8D:TH)
303 A-1111-485-A FRONT AMP BOARD, COMPLETE (GNZ7D:TH)
304 A-1095-774-A SURROUND AMP BOARD, COMPLETE
(GNZ9D:EXCEPT TH)
304 A-1095-775-A SURROUND AMP BOARD, COMPLETE
(GNZ8D:EXCEPT TH)
304 A-1111-486-A SURROUND AMP BOARD, COMPLETE
(GNZ9D:TH)
304 A-1111-487-A SURROUND AMP BOARD, COMPLETE
(GNZ8D:TH)
FAN902 1-787-336-11 FAN, DC (GNZ9D)
IC401 6-600-221-01 IC STK403-130 (GNZ9D)
IC401 6-705-853-01 IC STK403-120 (GNZ7D/GNZ8D)
IC501 6-707-960-01 IC STK433-270 (GNZ8D/GNZ9D)
IC601 6-600-182-01 IC STK404-140S (GNZ9D)
IC941 8-759-198-03 IC PQ09RF21J00H
IC942 8-759-701-59 IC NJM78M09FA
IC943 8-759-701-59 IC NJM78M09FA
IC945 6-703-546-01 IC TA7804LS
#1 7-685-650-79 SCREW +BVTP 3X16 TYPE2 IT-3
#3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B)
304
#1
#1
#1
#1
#3
#3
#3
#1
#3
IC601
IC501
IC401
IC945
IC943
IC942
IC941
not supplied
not supplied
not supplied
not supplied
FAN902
#3
#3
not supplied
