Sony HCD-GNZ8D - Jack Board; Back Panel Section

15
HCD-GNZ7D/GNZ8D/GNZ9D

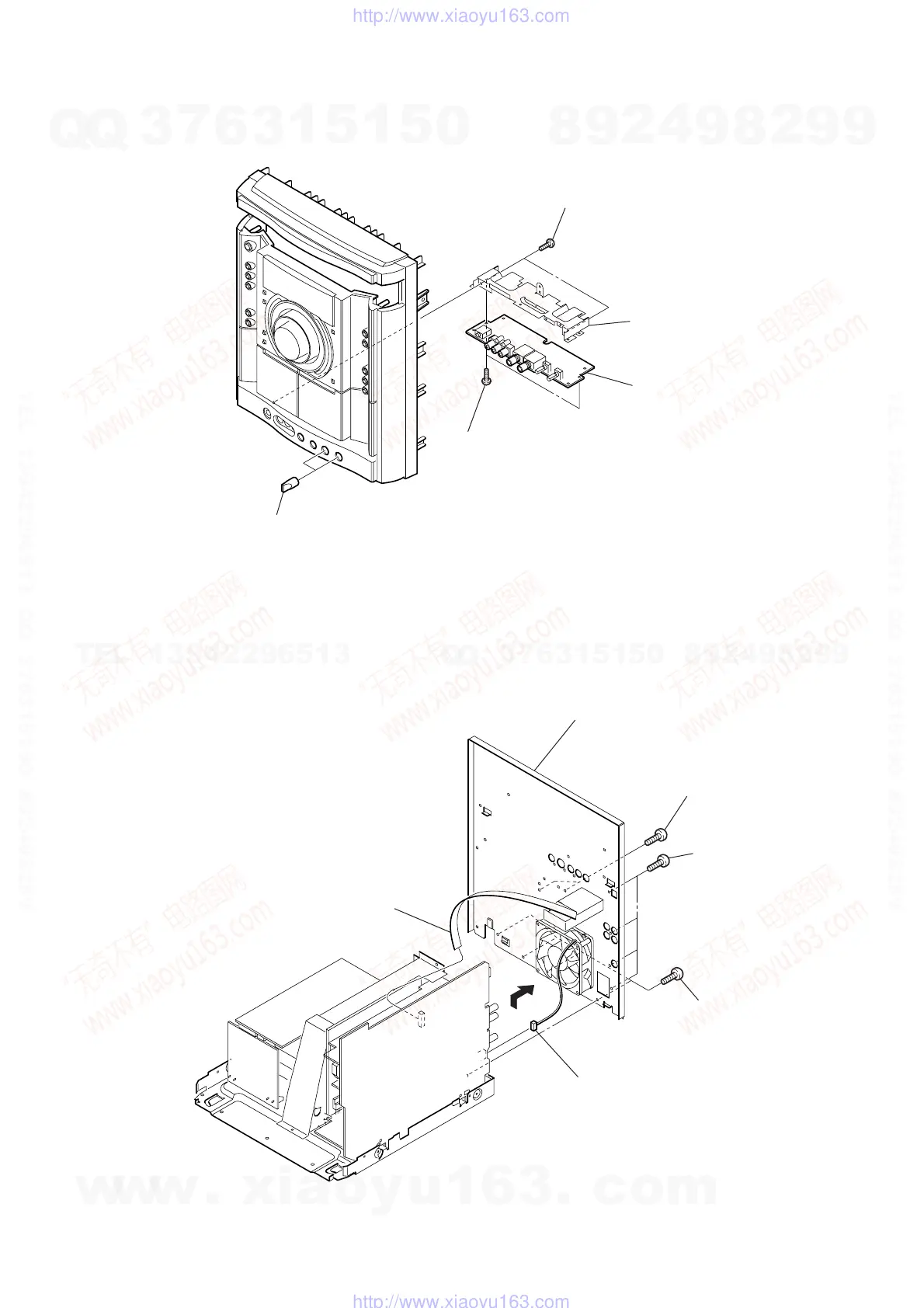

3-7. JACK BOARD
4 bracket (TC-JACK
)
5 JACK board
1 two mic knobs
2 two screws
(+BVTP 2.6 (3CR))
3 two screws
(+BVTT 3
× 6)
3-8. BACK PANEL SECTION
7 back panel section
4 four screws
(+BVTT 3
× 6)
3 two screws
(+BVTT 3
× 6)
2 four screws
(+BVTP 3
× 10
)
6 CN754 (2P)
5
1
CN753 (9P)
