HCD-GNZ7D/GNZ8D/GNZ9D

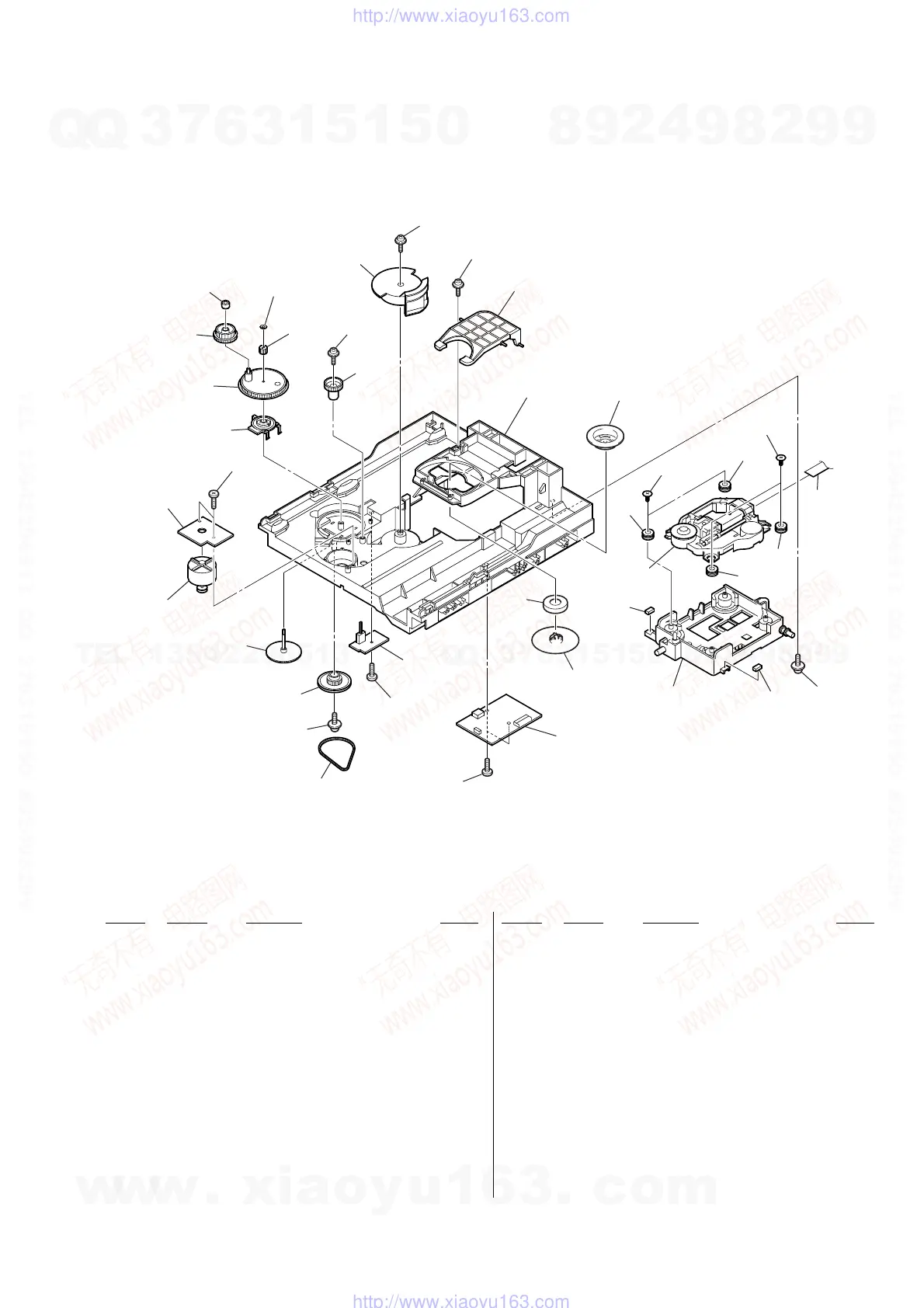

8-9. DVD MECHANISM DECK SECTION (2)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
401 A-1103-756-A DRIVER BOARD, COMPLETE
402 4-218-253-52 SCREW (M2.6), +BTTP
403 1-687-669-12 SW BOARD
404 4-244-034-01 BELT (LOADING)
405 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING
406 4-225-844-01 GEAR (LOADING A)
407 4-224-613-01 GEAR (SHAFT)
408 1-687-133-12 MOTOR (LD) BOARD
409 4-244-108-01 GEAR, SWING
410 4-224-609-01 GEAR (LOADING C)
411 4-224-608-01 COLLAR, SWING
412 3-016-533-11 WASHER (FR), STOPPER
413 4-224-611-01 GEAR (LOADING B)
414 4-224-606-01 GEAR (RV)
415 4-243-818-01 GEAR (U/D)
416 2-541-918-01 LIFTER (H), LEVER
417 4-243-817-41 CHASSIS
418 2-345-983-01 PULLEY B (310), CHUCKING
419 3-087-599-01 INSULATOR SCREW
420 3-088-372-01 INSULATOR
421 1-828-771-11 WIRE (FLAT TYPE) (24 CORE)
0422 8-820-291-02 OPTICAL PICK-UP (KHM-310CAB/C2RP)
423 4-250-098-11 CUSHION
424 4-251-923-01 YOKE (310)
425 2-345-982-01 PULLEY A (310), CHUCKING
M751 A-4736-655-A MOTOR ASSY, LOADING (LOADING)
RE701 1-477-680-12 ENCODER, ROTARY
(DISC TRAY ADDRESS DETECT)
401
402
402
402
403
404
405
405
406
407
408
409
410
411
412
413
414
415
416
418
419
419
420
420
420
420
421
422
423
423
417
425
424
405
405
405
M751
not supplied
RE701
