Sony HCD-GNZ8D - Tape Mechanism Section; Panel Board

14
HCD-GNZ7D/GNZ8D/GNZ9D

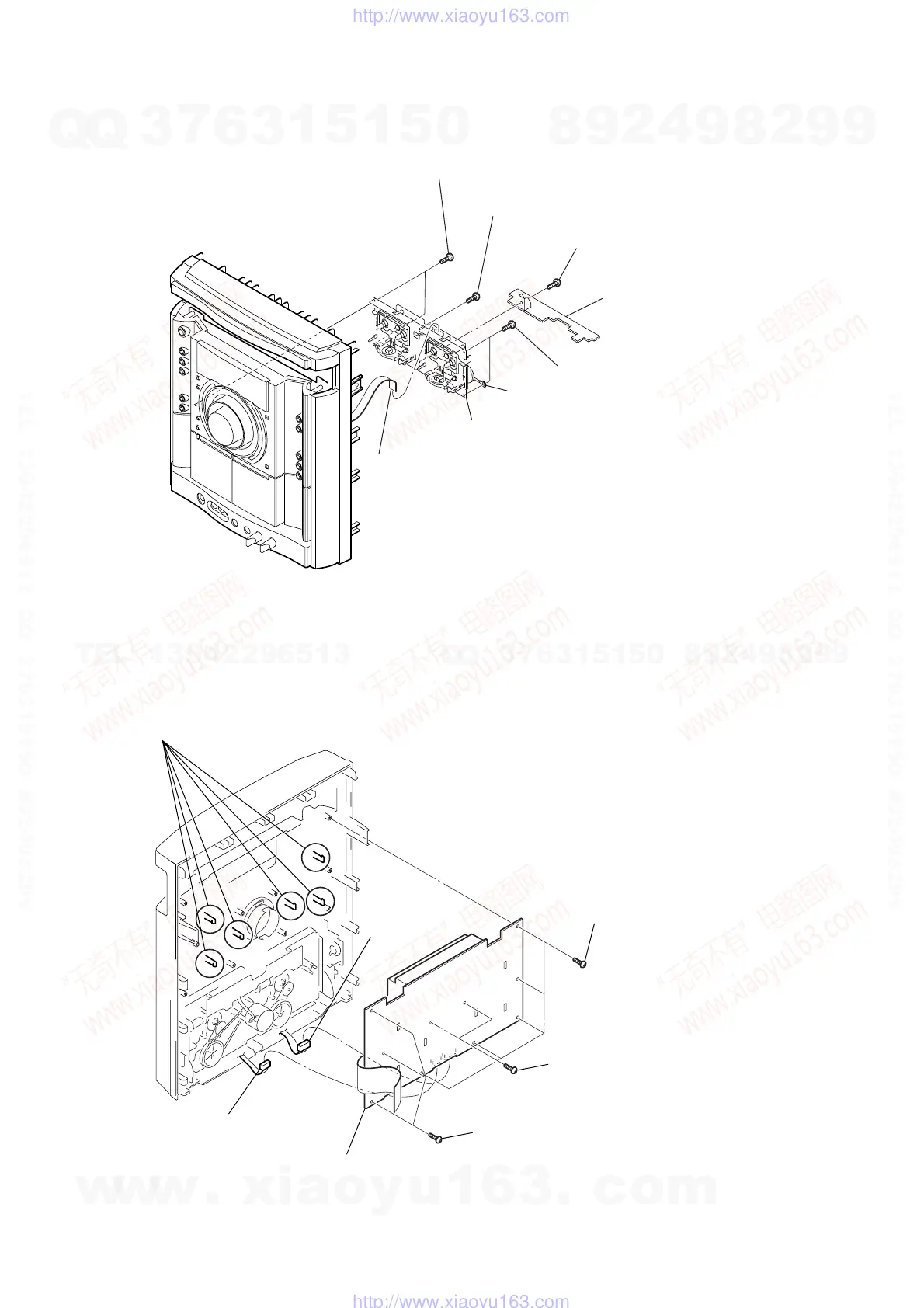

3-6. PANEL BOARD
3-5. TAPE MECHANISM SECTION
4 two screws
(+BVTP 2.6 (3CR))
5 two screws
(+BVTP 2.6 (3CR))
2 screw
(+BVTP 2.6 (3CR))
3 TEMP board
6 screw
(+BVTP 2.6 (3CR))
7 tape mechanism deck
clamp
1 connector
6 CN151 (7P)
5 CN152 (5P)
7 PA NEL board
4 six claws
1 five screws
(+BVTP 2.6 (3CR)
)
2 two screws
(+BVTP 2.6 (3CR))
3 three screws
(+BVTP 2.6 (3CR))
