Sony hcd-m700 - MD Mechanism Deck Section-2 (MDM-7 B4 M)

113
HCD-M700
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks

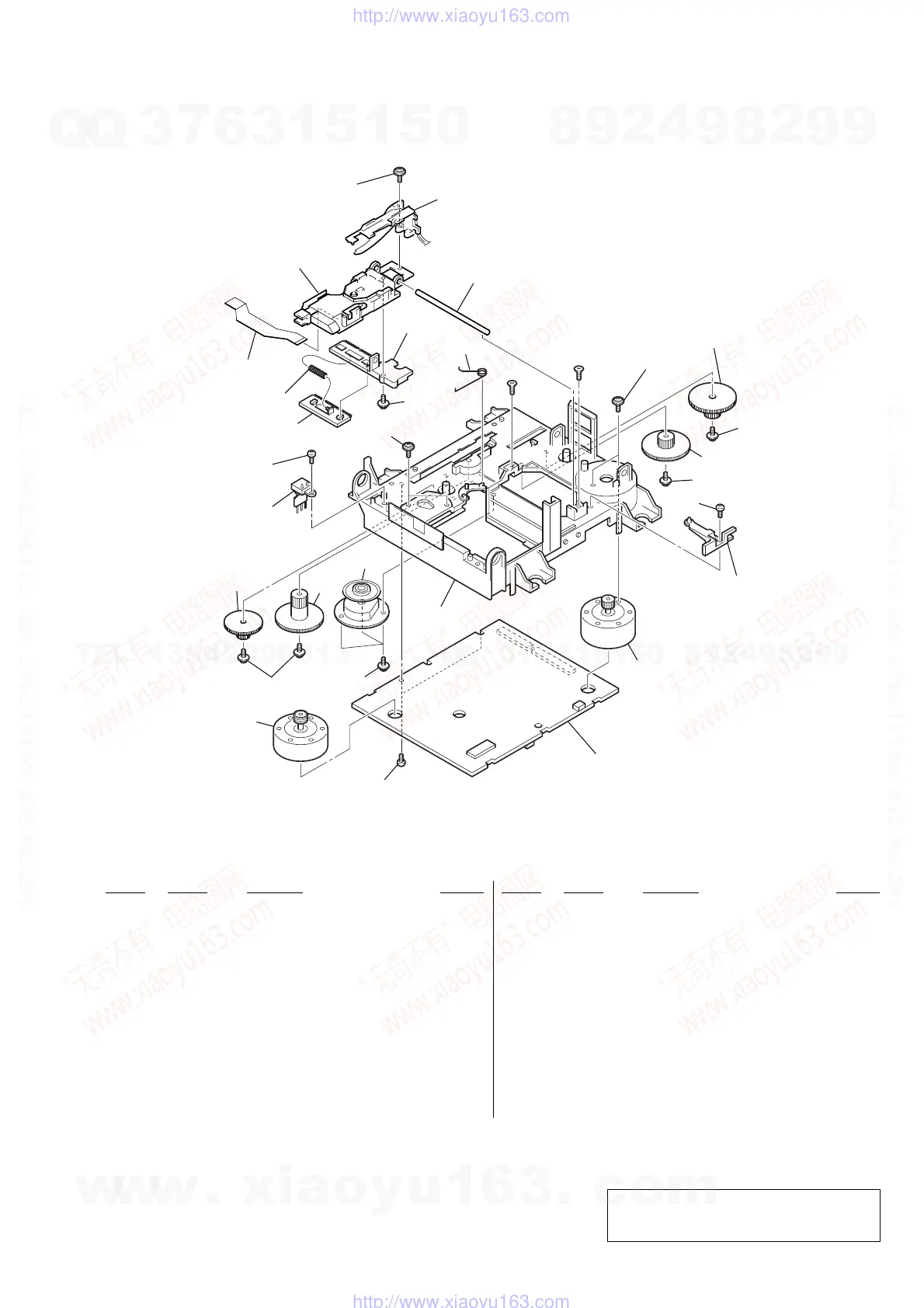

7-8. MD Mechanism Deck Section-2 (MDM-7B4M)
761
760
759
758
757
763
762
764
761
756
751
752
753
754
752
751
768
767
751
752
756
HR901
S102
M701
M703
M702
#10
#10
752
755
765
766
751 4-231-319-01 SCREW (2X6) CZN, +B (P) TRI
752 3-372-761-01 SCREW (M1.7), TAPPING
753 4-227-008-01 GEAR (SC)
754 4-227-009-01 GEAR (SD)
755 4-226-989-01 CHASSIS
756 4-232-270-01 SCREW (1.7X3.5), +PWH
757 4-226-993-01 RACK
758 4-227-014-01 SPRING (RACK), COMPRESSION
759 1-678-514-11 PWB, FLEXIBLE
0760 A-4672-541-A OPTICAL PICK-UP BLOCK (MD) KMS-260E
761 4-988-560-01 SCREW (+P 1.7X6)
762 4-996-265-01 SHAFT, MAIN
763 4-226-992-01 BASE, SL
764 4-227-023-01 SPRING (SPINDLE), TORSION
765 4-227-004-01 GEAR (LC)
766 4-227-005-01 GEAR (LD)
767 4-226-990-01 BASE (BU-A)
768 A-4726-344-A BD BOARD COMPLETE
HR901 1-500-670-22 HEAD, OVER LIGHT
M701 A-4735-757-A MOTOR ASSY, SPINDLE
M702 A-4735-076-A MOTOR ASSY, SLED
M703 A-4735-074-A MOTOR ASSY, LOADING
S102 1-771-957-11 SWITCH, PUSH (2 KEY)
#10 7-685-204-19 SCREW +KTP 2X6 TYPE2 NON-SLIT
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
