Sony hcd-m700 - DVD Board; DVD Mechanism Deck (CDM55 A-DVBU8)

22
HCD-M700

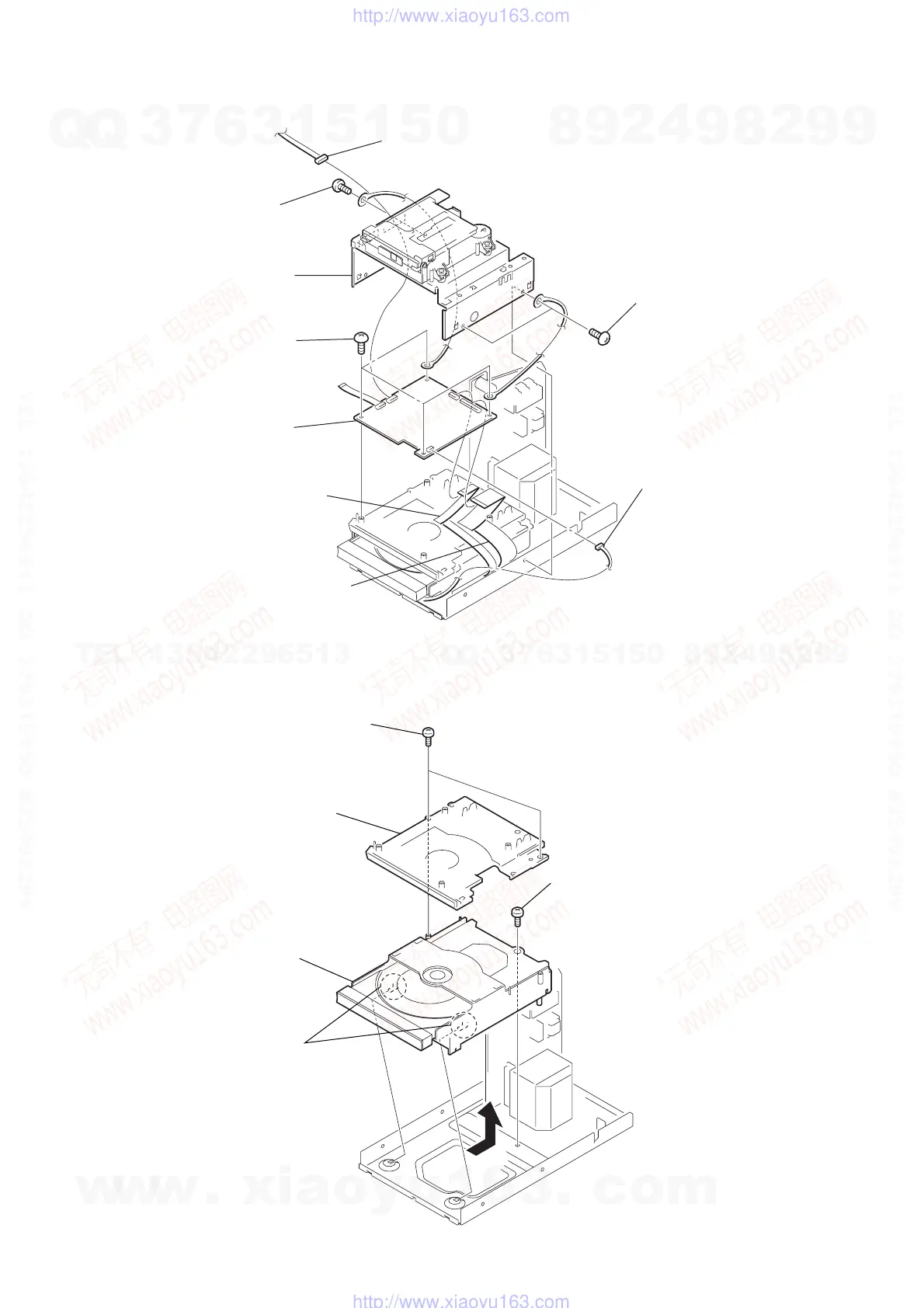

3-11. DVD Board
3-12. DVD Mechanism Deck (CDM55A-DVBU8)
9 DVD board
6 connector
(CN402)
1 connector (CN008)
(to POWER board)
3 two screws (+BVTP 3 × 8
)
5 four screws (+BVTP 3 × 8 )
2 screw (+BVTP 3 × 8 )
4 MD bracket
7 flexible flat cable
(CN009)
8 flexible flat cable
(CN010)
4
2 DVD board chassis
5 DVD mechanism deck
(CDM55A-DVBU8)
3 screw (+BVTP 3 × 8 )
1 two screws (+BVTP 2.6 × 8 )
two hooks
