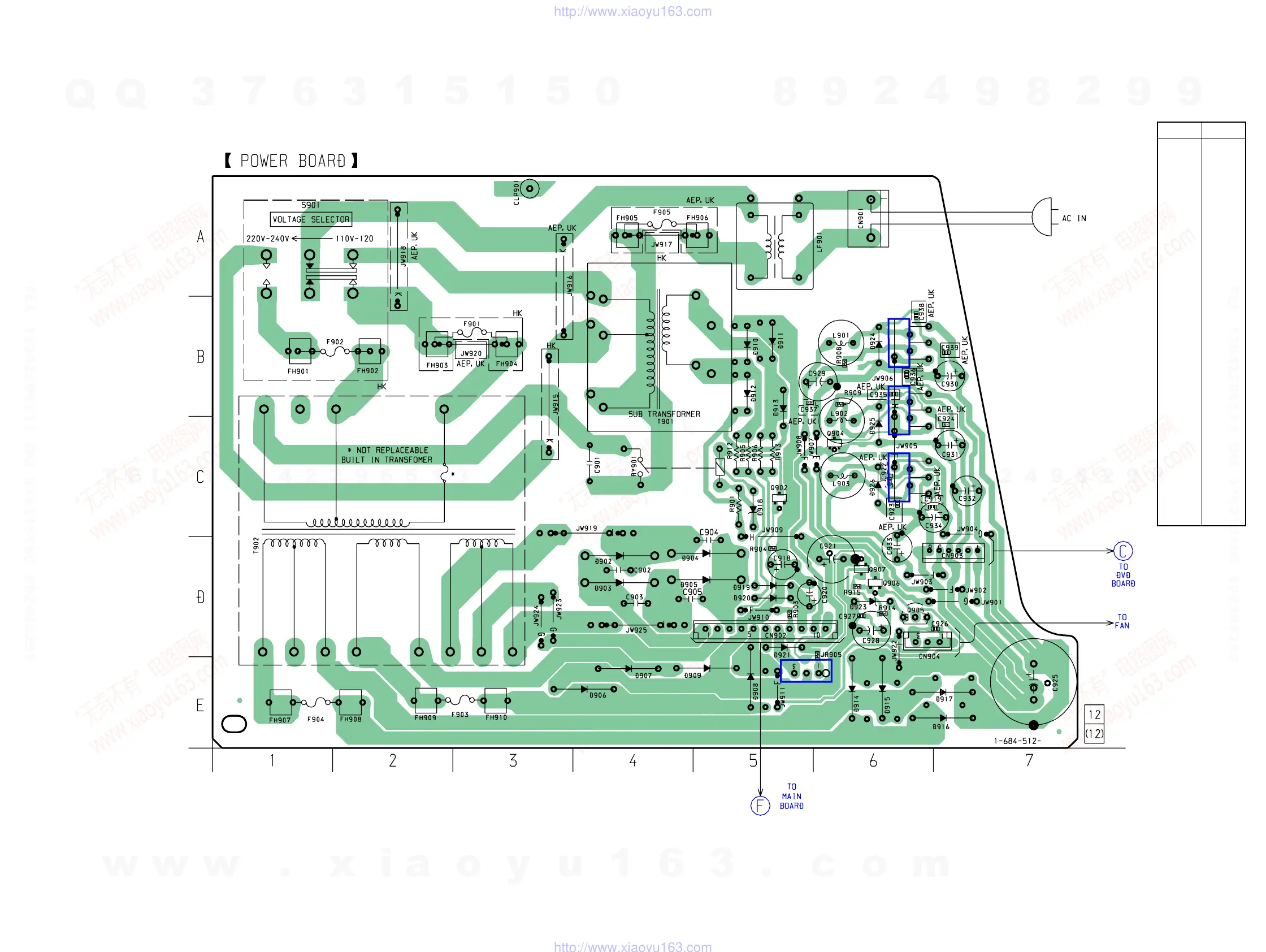

6-38. Printed Wiring Board – POWER Board –
• See page 54 for Circuit Boards Location.
E
E
E
(Page 84)
(Page 74)
IC904
IC903
IC902
IC901
Ref. No. Location
D902 D-4
D903 D-4
D904 D-5
D905 D-5
D906 E-4
D907 E-4
D908 E-5
D909 E-5
D910 B-5
D911 B-5
D912 B-5
D913 B-5
D914 E-6
D915 E-6
D916 E-7
D917 E-7
D918 C-5
D919 D-5
D920 D-5
D921 D-5
D923 D-6
D924 B-6
D925 B-6
D926 C-6
IC901 B-6
IC902 B-6
IC903 C-6
IC904 E-5
Q902 C-5
Q904 B-6
Q905 D-6
Q906 C-6
Q907 C-6
