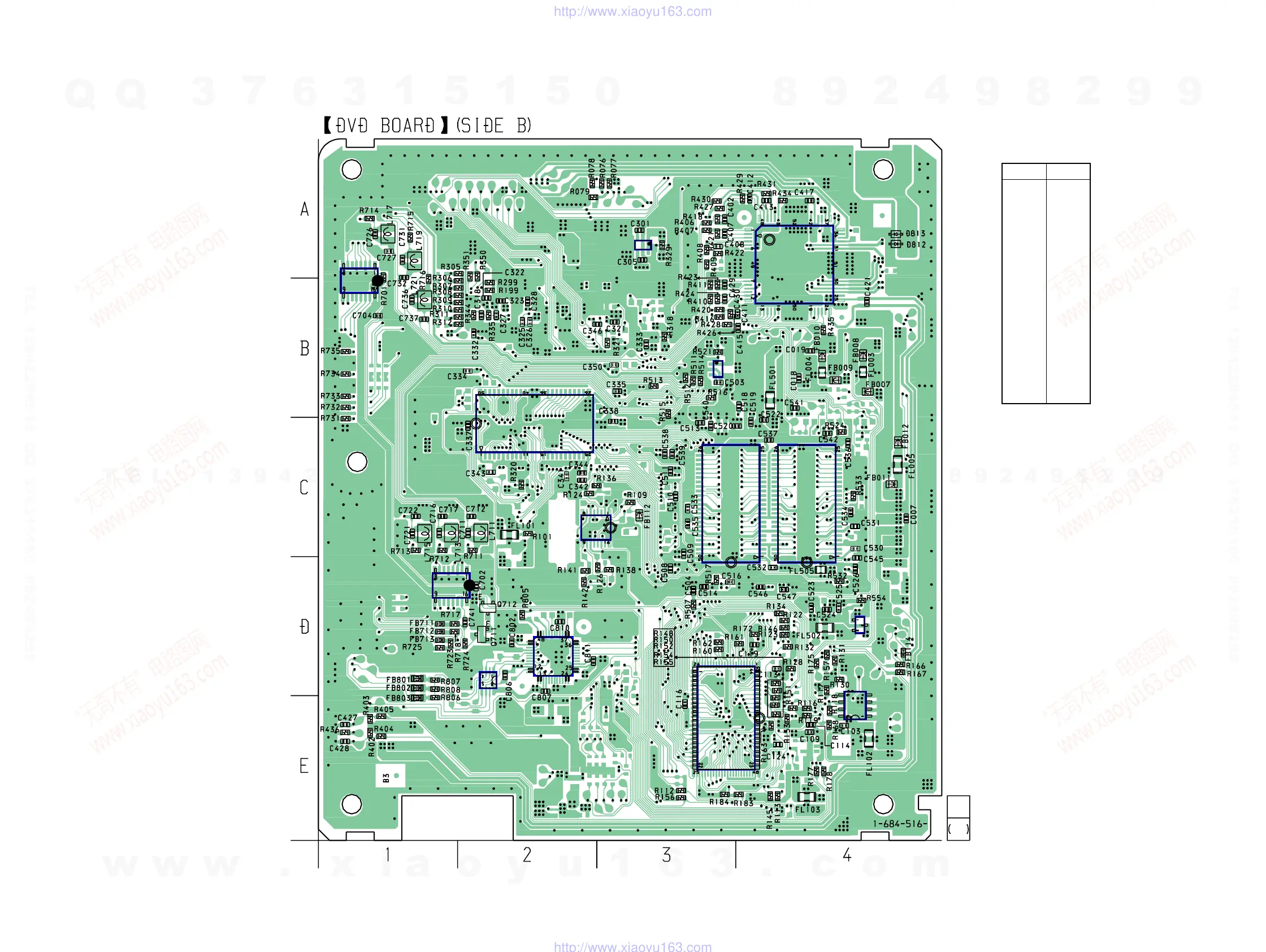

6-18. Printed Wiring Board – DVD (SIDE B) Board –
• See page 54 for Circuit Boards Location.
IC702
IC301
IC401
IC502
IC303
IC504
IC505
IC102
IC701
IC801
IC802
IC501
IC101
IC108
12
12
Ref. No. Location
D812 A-4
D813 A-4
IC101 E-4
IC102 C-2
IC108 D-3
IC301 A-3
IC303 B-2
IC401 A-4
IC501 D-4
IC502 B-4
IC504 C-4
IC505 C-3
IC701 D-1
IC702 A-1
IC801 D-2
IC802 D-2
Q711 D-2
Q712 D-2
• Semiconductor
Location
