HCD-M700

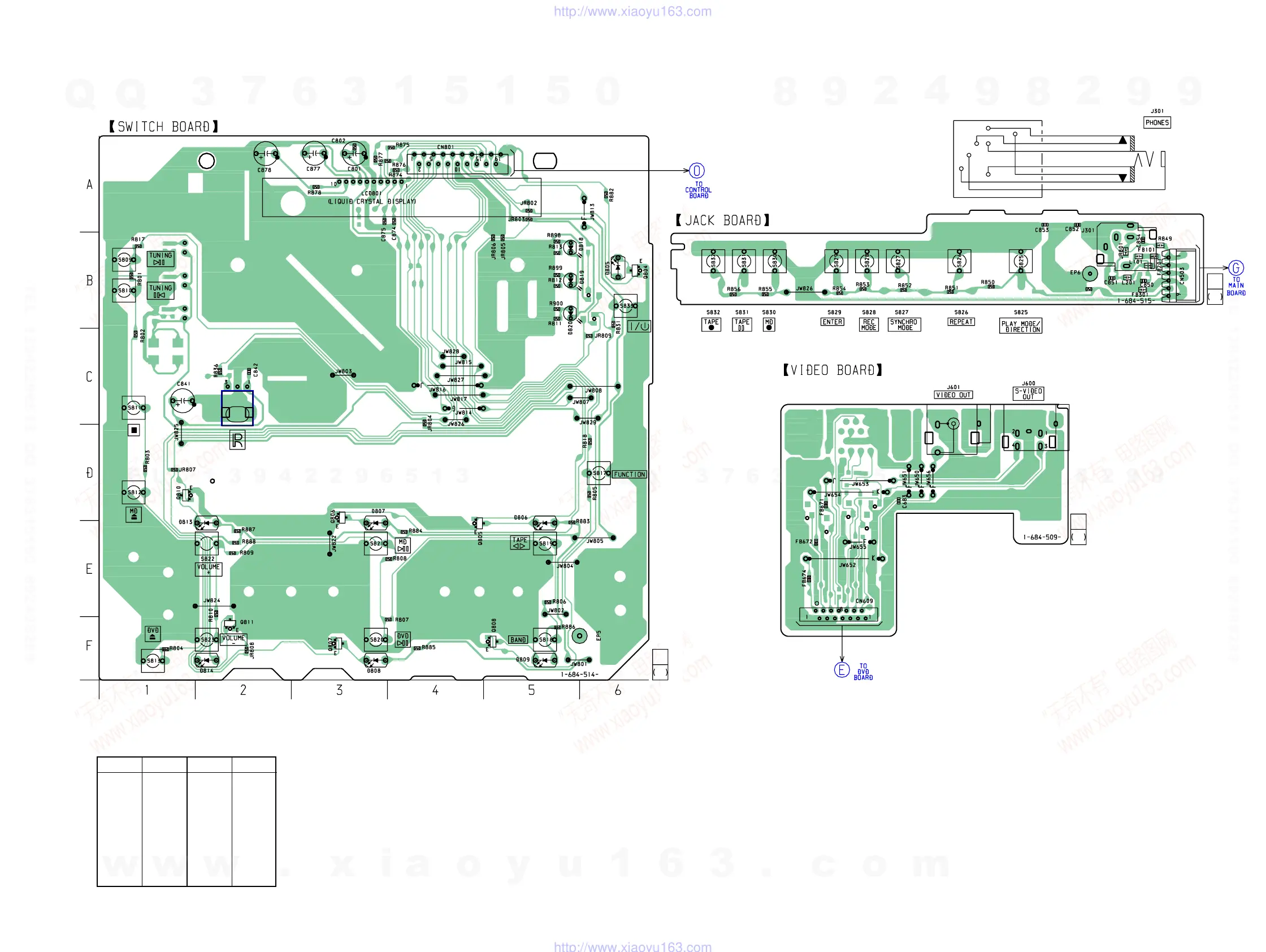

6-34. Printed Wiring Board – PANEL Section –
• See page 54 for Circuit Boards Location.
IC801
12
12
12
12
12
12
4
(Page 90)
(Page 74)
(Page 84)
Ref. No. Location
D805 B-6
D806 D-5
D807 D-3
D808 F-3
D809 F-5
D813 D-1
D814 F-2
D818 B-6
D819 B-6
D820 B-6
Ref. No. Location
IC801 C-2
Q804 B-6
Q805 E-4
Q806 E-3
Q807 F-3
Q808 F-5
Q810 D-1
Q811 E-2
• Semiconductor Location
(SWITCH Board)
