Sony hcd-m700 - Printed Wiring Board - MAIN Board

8484
HCD-M700

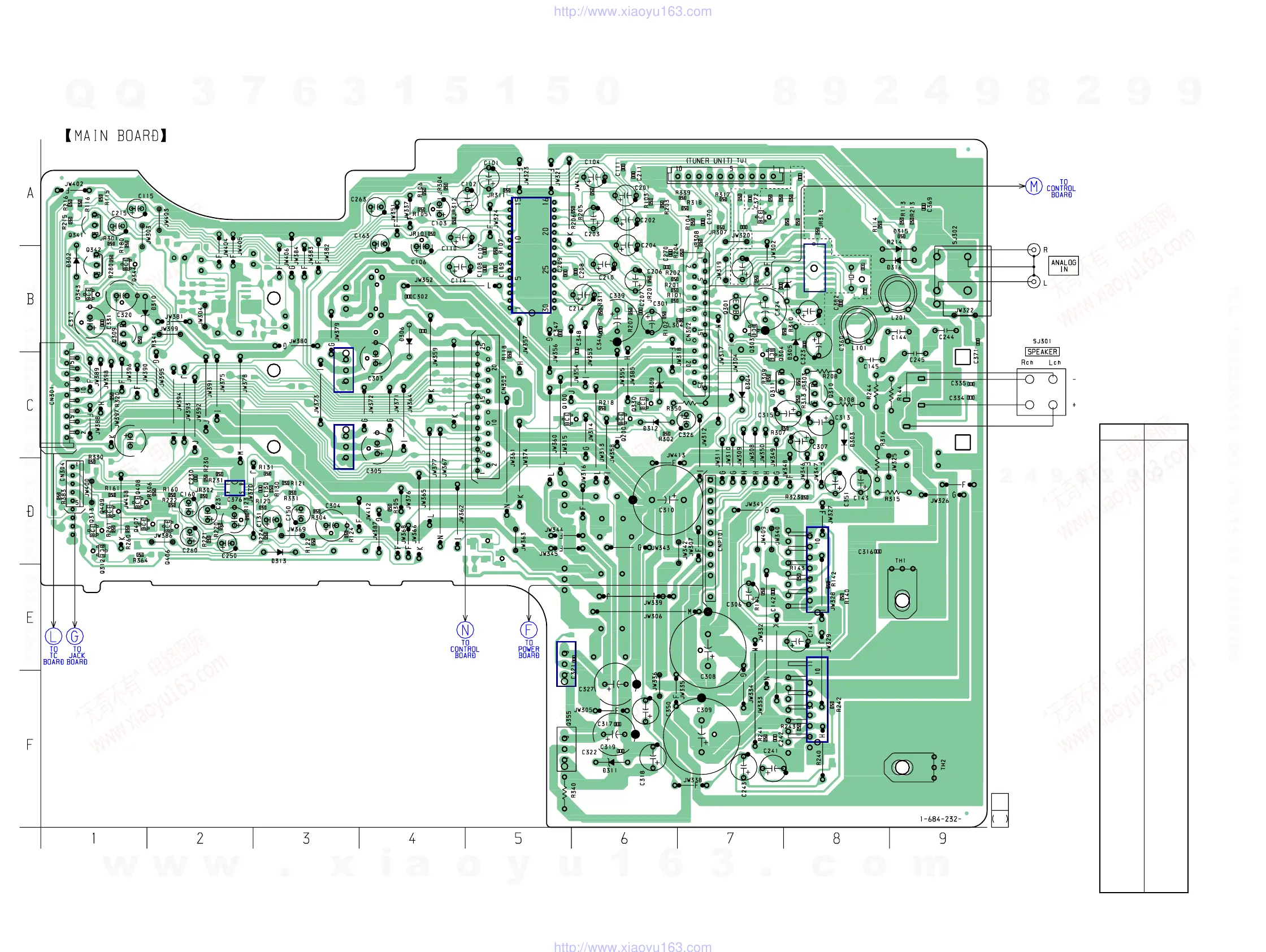

6-27. Printed Wiring Board – MAIN Board –
• See page 54 for Circuit Boards Location.
IC323
IC305
IC307
IC101
IC201
IC304
IC324
23
23
C336
R376
R377
C381
Q302
C387
C385
R373 R374
R371
C386
C384
C383
X301
D320
IC326
R372
R375
C380
1
8
9
16
AEP,UK
(Page 90)
(Page 97)
(Page 90)
(Page 93)
(Page 81)
Ref. No. Location
D302 B-1
D303 C-8
D304 C-7
D305 B-7
D306 B-4
D309 C-6
D310 B-2
D311 F-6
D312 C-6
D313 D-3
D315 A-9
D316 A-9
IC101 D-8
IC201 F-8
IC304 E-5
IC305 B-3
IC307 C-3
IC323 B-5
IC324 D-2
Q100 C-6
Q200 C-6
Q301 B-7
Q303 B-7
Q304 B-7
Q309 B-1
Q310 B-8
Q311 B-7
Q312 D-1
Q313 D-1
Q330 C-6
Q341 A-1
Q342 B-1
Q343 B-1
Q344 B-1
Q355 F-5
Q406 D-2
Q407 D-2
Q408 D-1
Q409 D-1
• Semiconductor
Location
