HCD-M700

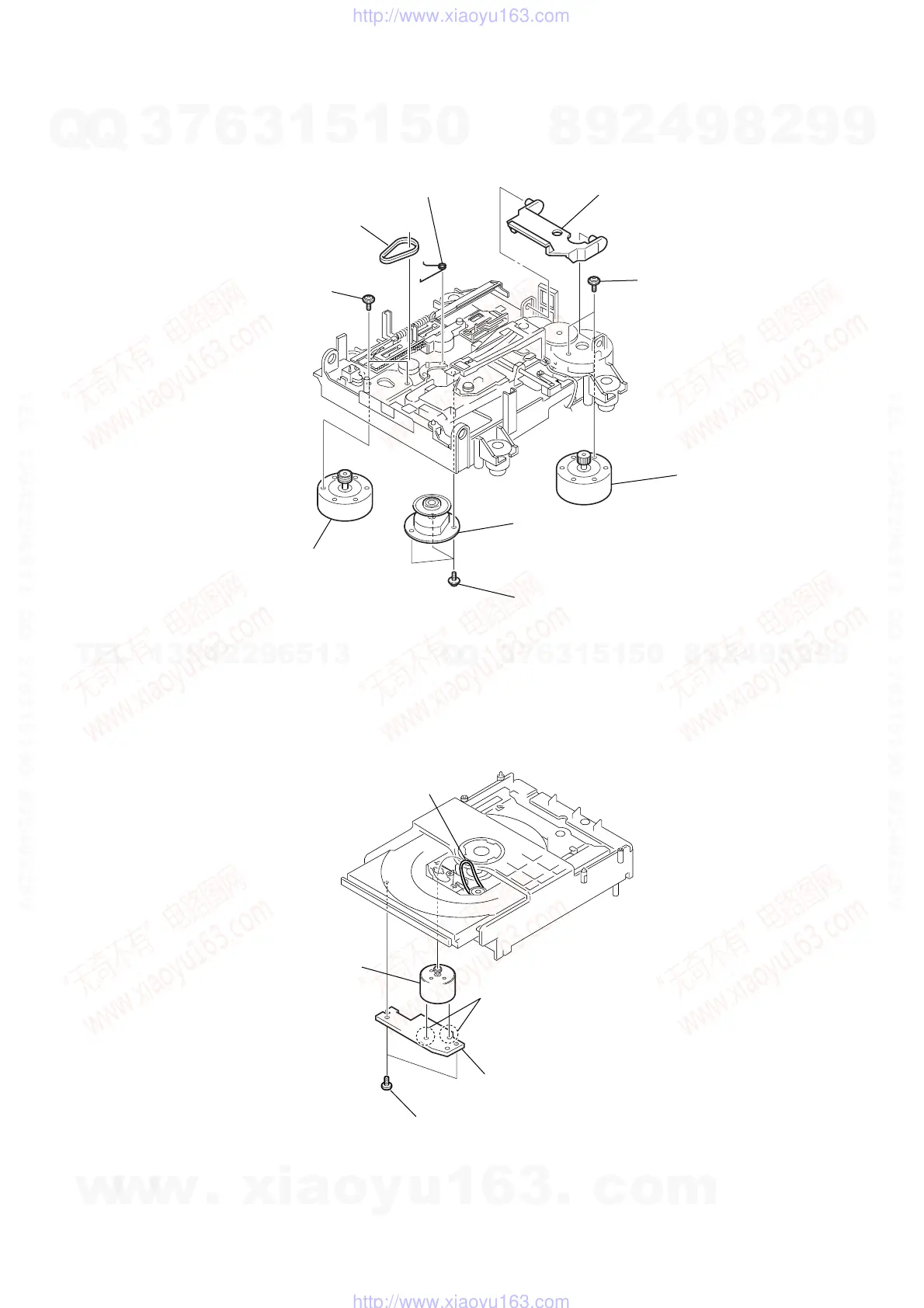

3-17. Loading Motor Assy (M103), Spinde Motor Assy (M101), Sled Motor Assy (M102)
9
sled motor assy (M102)
5
loading motor assy (M103)
1
lever (HEAD)
2
belt (loading)
3
torsion spring (SPDL)
7
spinde motor assy (M101)
8
two
screws (+PWH 1.7x 3.5)
6
three
screws (M 1.7)
4
two
screws (+PWH 1.7x 3.5)
3-18. LOADING Board, Motor (LD) Assy (M901)
2
two
screws (+BTP 2.6
×
6)
4
motor
(LD) assy
(M901)
1
Remove the belt.
3
Remove soldering from the two points.
5
LOADING board
