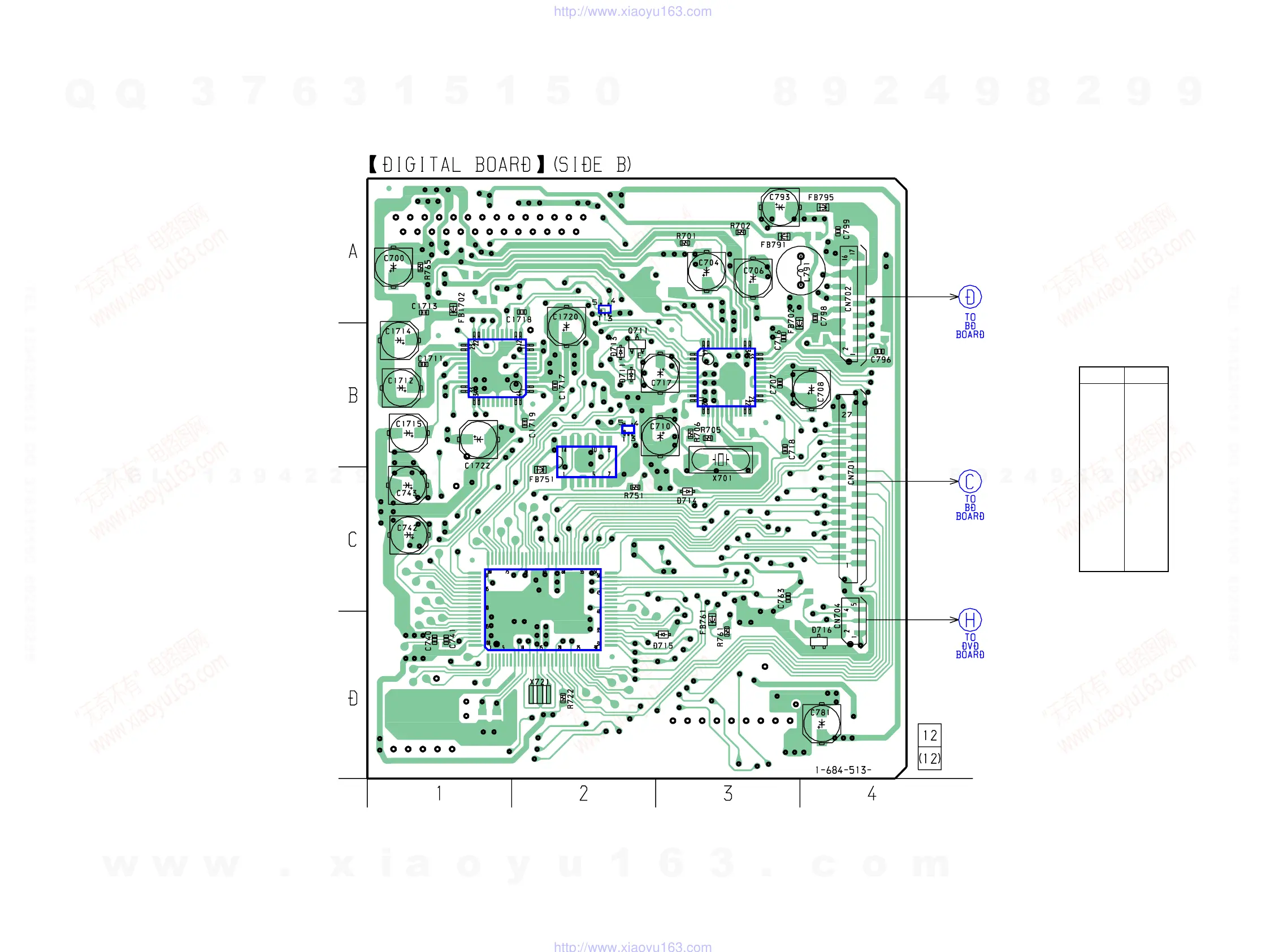

6-22. Printed Wiring Board – DIGITAL (SIDE B) Board –
• See page 54 for Circuit Boards Location.
(Page 65)
(Page 65)
(Page 74)
IC762
IC751
IC701
IC752
IC721
IC1701
Ref. No. Location
D711 C-2
D713 B-2
D714 C-2
D715 D-3
D716 D-4
IC701 B-3
IC721 D-2
IC752 B-2
IC753 C-2
IC754 C-2
IC755 B-2
IC756 B-2
IC762 A-2
IC1701 B-1
Q711 B-2
• Semiconductor
