111
HCD-M700

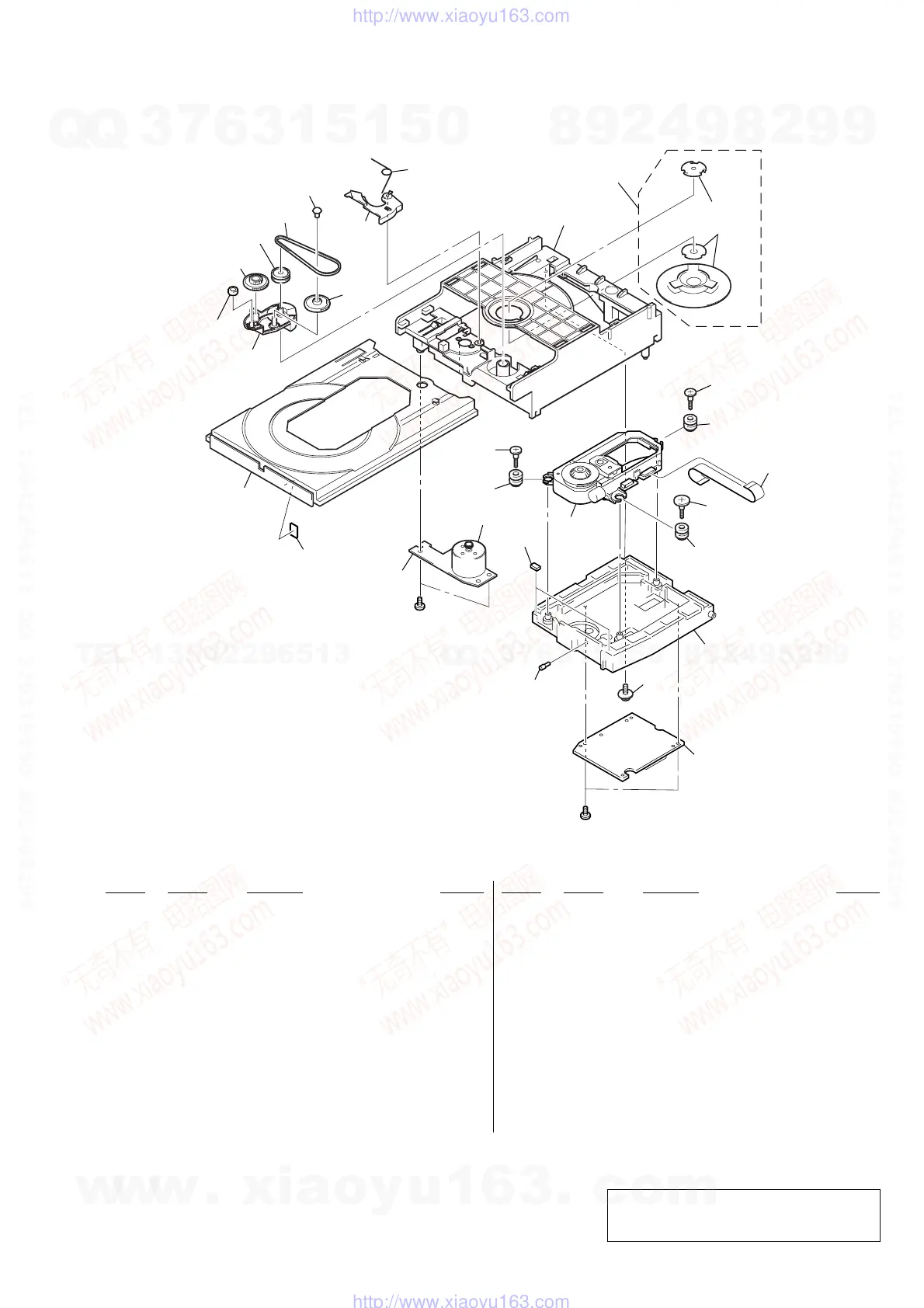

7-6. DVD Mechanism Deck Section (CDM55A-DVBU8)
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
#8
#8
M901
401
402
402
403
404
405
406
407
408
409
410
411
412
413
415
417
419
421
422
423
424
417
417
418
416
416
not
supplied
414
401 1-674-336-12 LOADING BOARD
402 4-925-315-31 DAMPER
403 4-224-894-02 TRAY (CDM55D)
404 4-220-233-01 CAM (CDM55)
405 4-221-815-11 ROLLER
406 4-220-237-01 GEAR (A)
407 4-220-234-01 PULLEY (LDG)
408 4-221-816-01 BELT (CDM55)
409 4-220-238-01 GEAR (B)
410 4-227-598-01 SPACER (55)
411 4-220-229-01 LEVER (SW)
412 4-220-239-01 SPRING, TORSION
413 4-220-230-01 CHASSIS
414 X-4954-059-1 PULLEY (240) ASSY
415 4-236-450-01 SCREW (L), STEP
416 4-981-923-01 SCREW (M), STEP
417 3-053-847-31 INSULATOR
0418 8-820-144-06 OPTICAL PICK-UP (CD) KHM-240AAA (TYPE A)
0418 A-6062-709-A OPTICAL PICK-UP (CD) KHM-270AAA (TYPE B)
419 1-823-072-11 CABLE, FLEXIBLE FLAT 26P
421 4-234-374-01 HOLDER (KHM-240)
422 4-229-358-01 SHAFT (BU21)
423 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING
424 A-4728-685-A RF-240 BOARD COMPLETE
M901 A-4735-337-A MOTOR (LD) ASSY (LOADING)
#8 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S
The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
Ver 1.1 2003.09
