Sony hcd-m700 - VIDEO Board, OPTICAL Board; SWITCH Board, JACK Board

18
HCD-M700

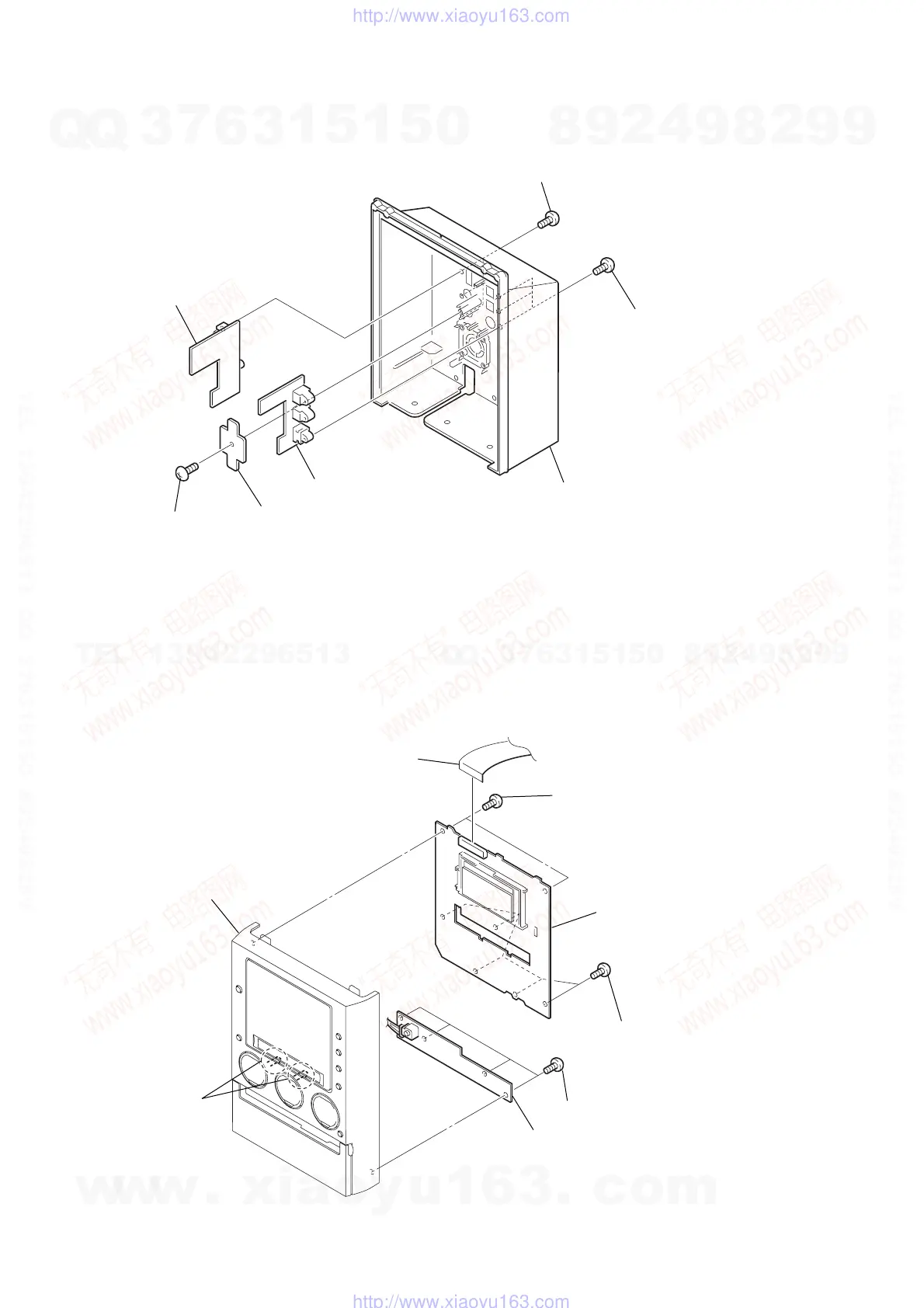

3-3. VIDEO Board, OPTICAL Board
3-4. SWITCH Board, JACK Board
back panel
6 OPTICAL board
5 VIDEO board
4 RETEINER board
2 three screws (+BVTP 3 × 10
)
1 three screws (+BVTP 3 × 10)
3 screw (+BVTP 3 × 8 )
4 flexible flat cable
(CN801)
7 JACK board
5 SWITCH board
front panel
6 four screws (+BVTP 2.6 × 8
)
2 five screws (+BVTP 2.6 × 8 )
1 two screws (+BVTP 2.6 × 8 )
3 two claws
