HCD-M700

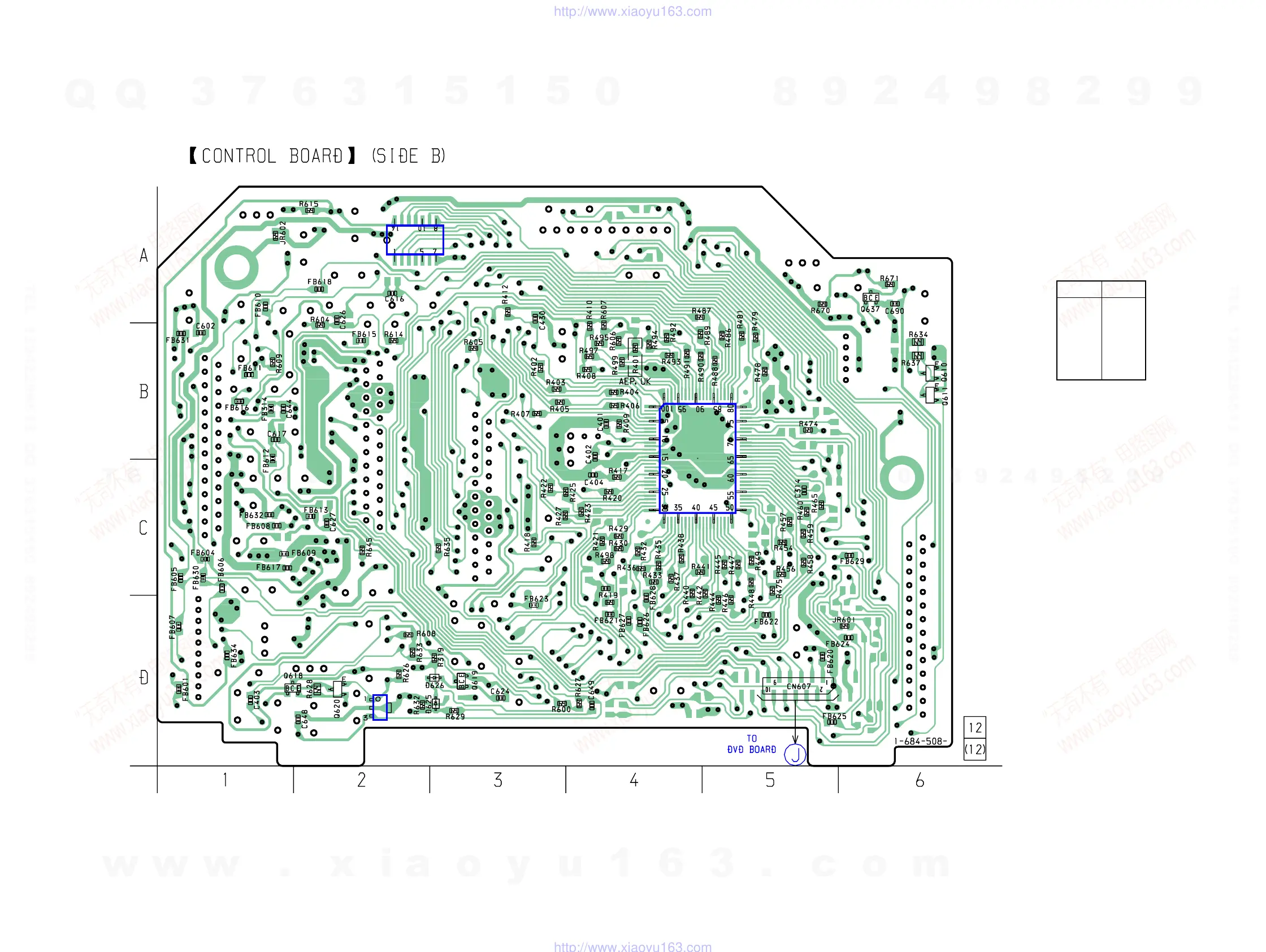

6-32. Printed Wiring Board – CONTROL (SIDE B) Board –
• See page 54 for Circuit Boards Location.
(Page 74)
IC306
IC302
IC602
Ref. No. Location
IC302 A-3
IC306 B-4
IC602 D-2
Q618 D-2
Q619 D-3
Q637 A-6
• Semiconductor
Location
