HCD-SLK10D/SLK20D

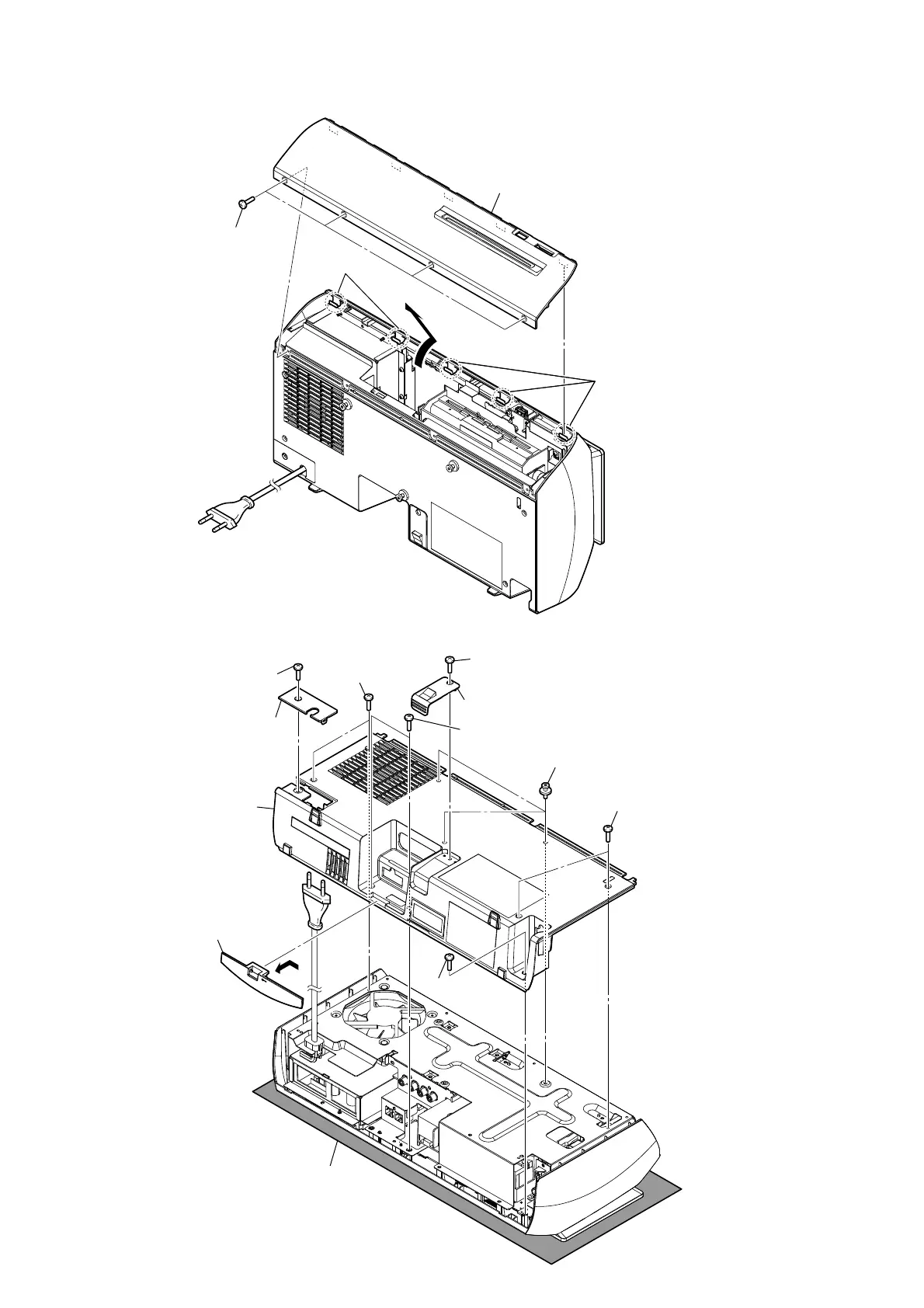

2-3. PANEL BACK

Note:

Follow the disassembly procedure in the numerical order given.

2-2. TOP PANEL ASSY

1 four screws

(BVTP3 u 8)

3 two craws

3 three craws

4 top panel assy

– Rear side view –

3 screw

(BVTP3 u 8)

5 screw

(BVTP3 u 8)

8 two screws

(BVTP3 u 8)

7 screw

(BVTP2.6)

7 two screws

(BVTP2.6)

2 foot (front)

– Rear bottom view –

4 lid (cord)

6 lock (WH)

Note:

Please spread a sheet under a unit

not to injure front panel.

8 two screws

(BVTP3 u 8)

9 three screws

(hook)

0 panel back
