75
HCD-SLK10D/SLK20D

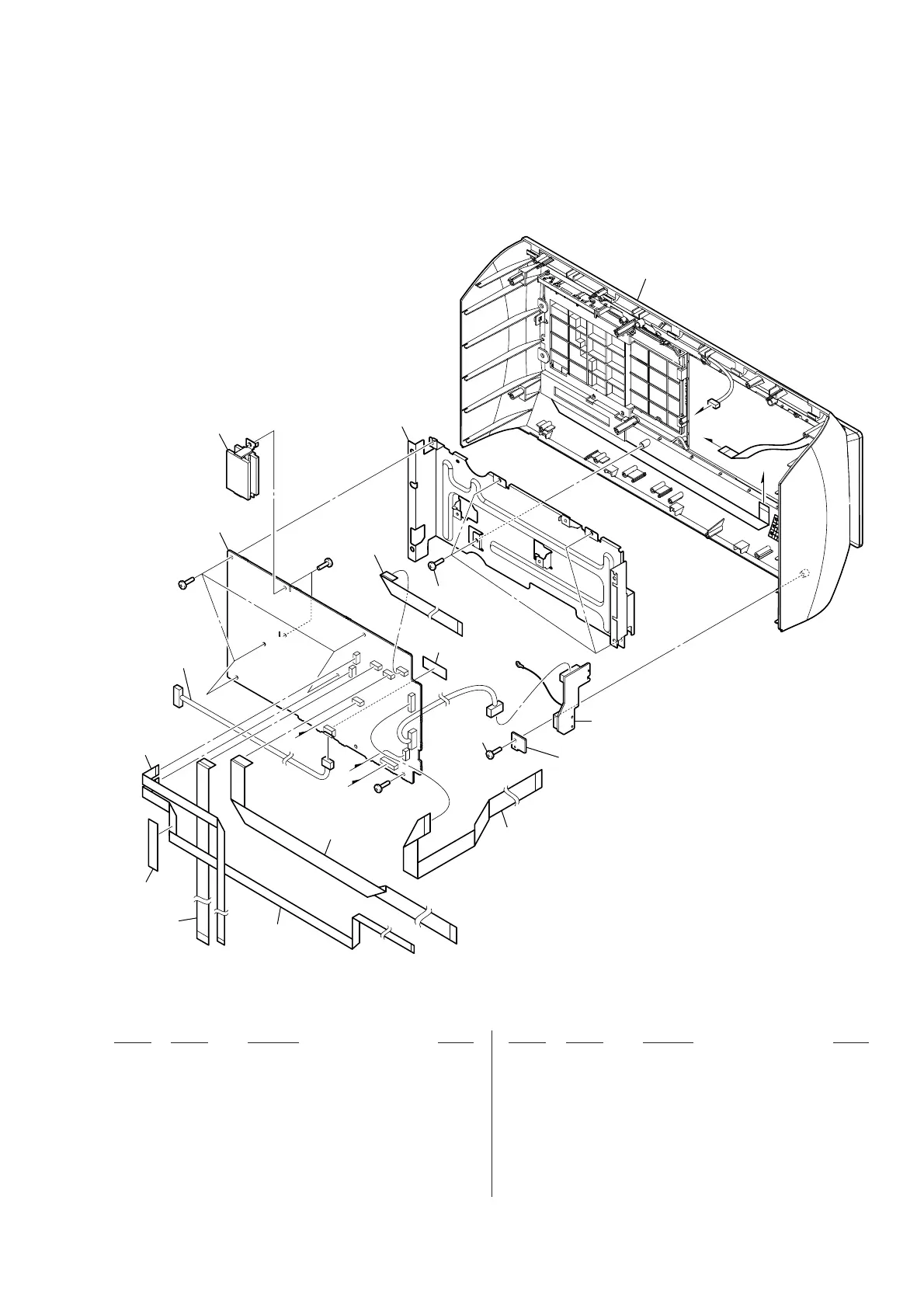

6-6. MAIN BOARD SECTION
• Rear side view
251 3-087-053-01 +BVTP2.6 (3CR)
252 A-1821-478-A MAIN BOARD, COMPLETE (E2)
252 A-1821-512-A MAIN BOARD, COMPLETE (E51)
252 A-1821-521-A MAIN BOARD, COMPLETE (MX)
252 A-1821-539-A MAIN BOARD, COMPLETE (IND)
252 A-1821-800-A MAIN BOARD, COMPLETE (SP, TH)
252 A-1821-807-A MAIN BOARD, COMPLETE (CH)
252 A-1822-470-A MAIN BOARD, COMPLETE (BR)
252 A-1831-525-A MAIN BOARD, COMPLETE (EA)
253 1-828-310-61 WIRE (FLAT TYPE) (9 CORE) (160 mm)
254 1-827-731-61 WIRE (FLAT TYPE) (11 CORE) (200 mm)
255 1-828-333-61 WIRE (FLAT TYPE) (13 CORE) (320 mm)
256 1-838-111-21 CABLE, FLEXIBLE FLAT (5 CORE) (620 mm)
257 1-828-312-61 WIRE (FLAT TYPE) (9 CORE) (250 mm)
258 1-828-320-61 WIRE (FLAT TYPE) (11 CORE) (160 mm)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
not supplied
251
252
253
254
256
257
258
255
not supplied
not supplied
#2
#2
#2
not supplied
not supplied
front panel section
251
not supplied
(HP board)
not supplied
(HP HOLDER board)
I
J
K
I
J
K
To Next Page
