HCD-SLK10D/SLK20D
14

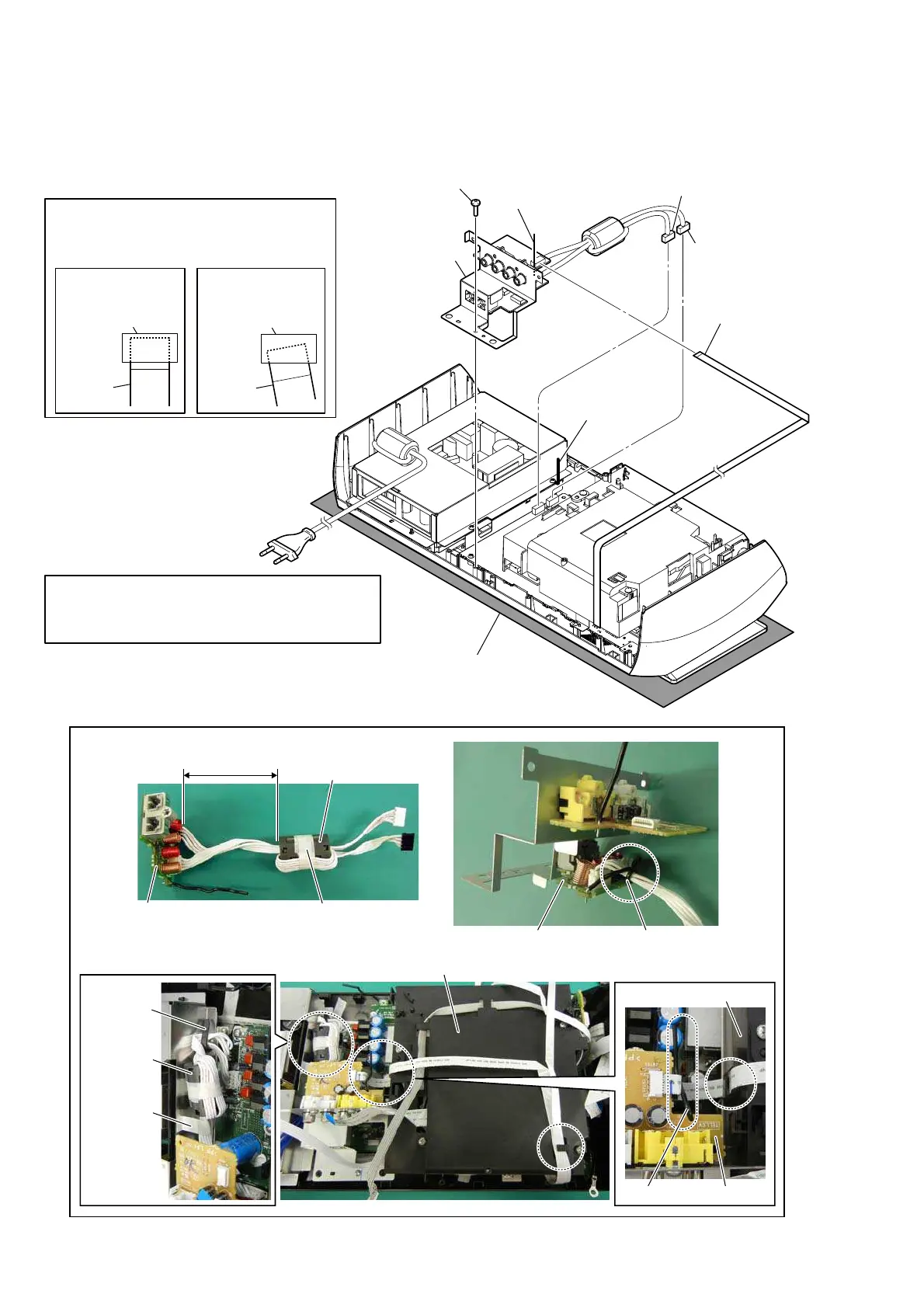

2-8. HOLDER (JACK) BLOCK
– Rear bottom view –
Note 1:
Please spread a sheet under a unit
not to injure front panel.
2 wire (flat type)
(7 core)
(CN705)
1 Lift up the lead pin.
7 holder (jack) block
6 screw
(BVTP2.6)
3 Lift up the
clamp (L35).
4 connector
(SLK10D: CN601/
SLK20D: CN603)
5 connector
(SLK10D: CN602/
SLK20D: CN604)
‡
:
ire
V
etti
QJ
lead pin
80 mm
TERMINAL board
TERMINAL board
tape
filter clamp (ferrite core)
lead pin
clamp (L35)
JACK board
tape
filter clamp
(ferrite core)
cover (CDM) 86S
cover (CDM) 86S
Note 2:
When you install the wire (flat type), please
install them correctly.
There is a possibility that this machine damages
when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline.
wire
(flat type)
wire
(flat type)
connector
OK NG
Note 3:
Do not insert
the wire (flat type)
in the same amount of
connector by mistake. Refer to
“2-21. HOW TO BEND
WIRE (FLAT TYPE)”
(page 24) and “5-1. FLAME
PRINTED WIRING BOARDS”
(page 31) for details.
