78
HCD-SLK10D/SLK20D

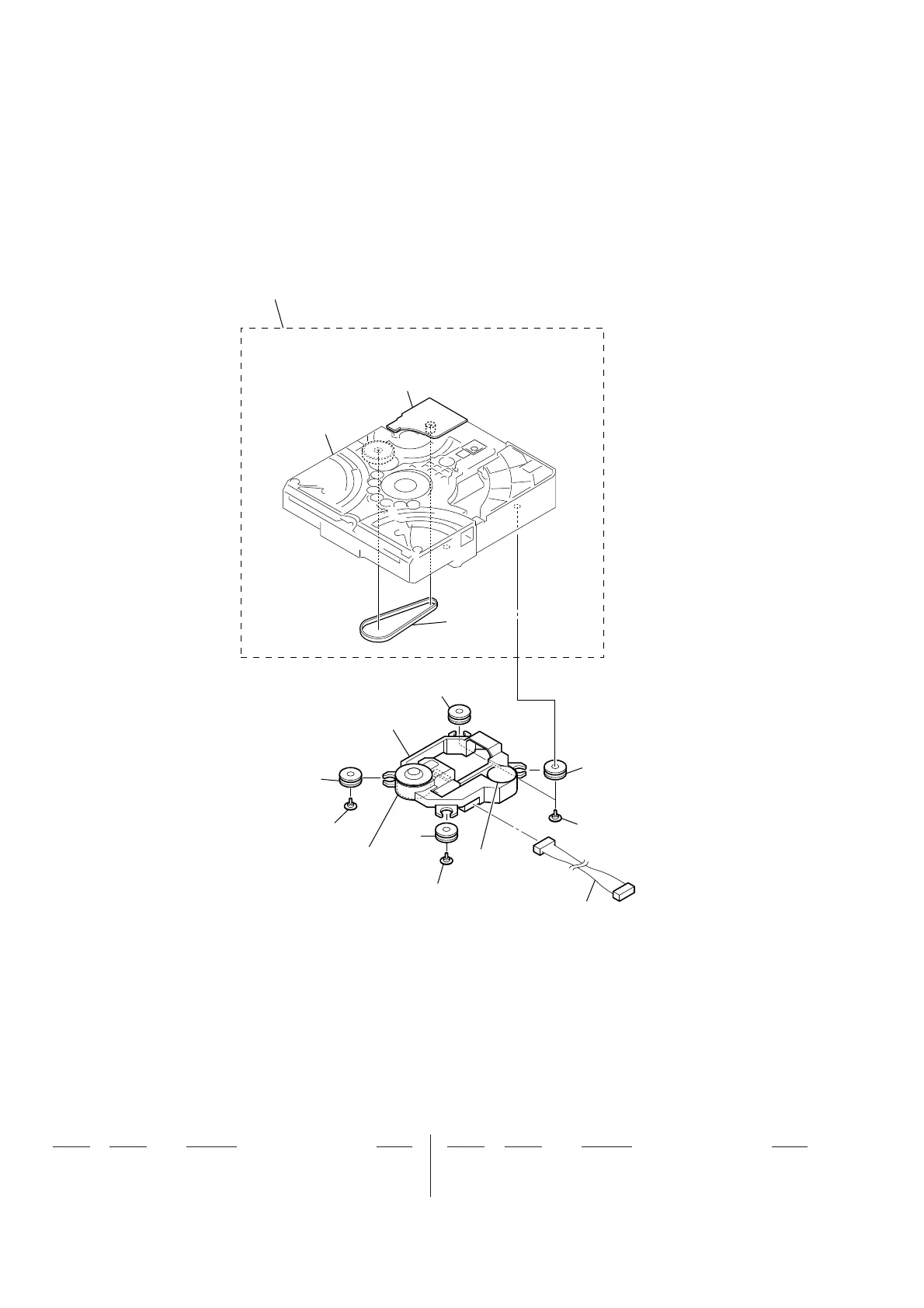

6-9. DVD MECHANISM DECK SECTION
(CDM86S-DVBU101)
401 A-1800-839-A CDM86 (S) ASSY (Including MS-214 board)
402 4-245-653-01 BELT (MOT)
403 2-634-618-31 INSULATOR
404 3-087-599-01 INSULATOR SCREW
0
405 8-820-322-04 OPTICAL PICK-UP BLOCK (KHM-313CAB/C2RP)
(Including sled motor, spindle motor)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
404
404
403
403
405
(including sled motor, spindle motor)
403
403
404
spindle motor
sled motor
401 (including
MS-214
board)
402
not supplied
not supplied
not supplied
(MS-214 board)
