72
HCD-SLK10D/SLK20D

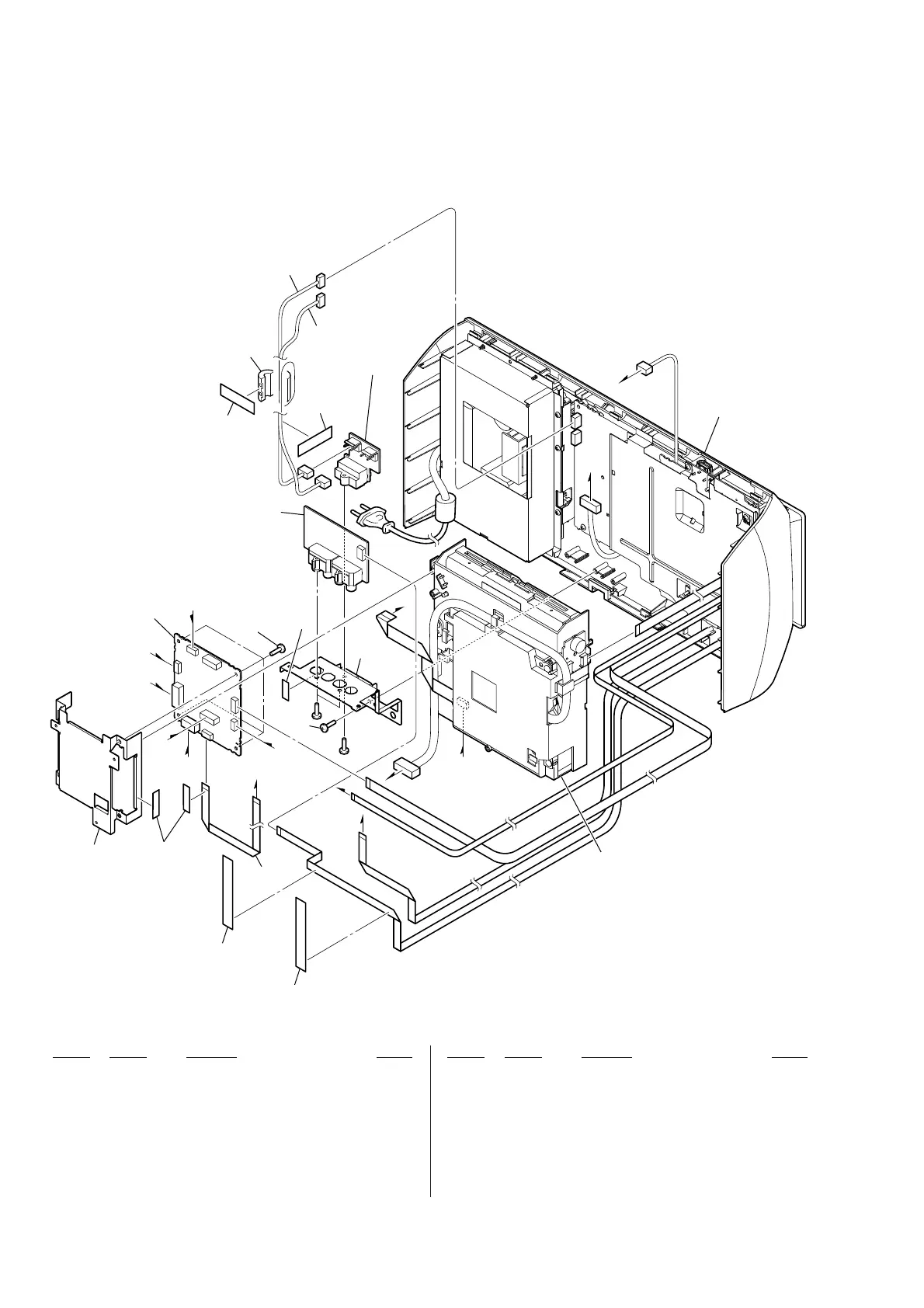

6-3. DMB19 BOARD SECTION
• Rear side view
101 A-1847-209-A DMB19 BOARD, COMPLETE (for SERVICE)
(E2, E51)
101 A-1847-210-A DMB19 BOARD, COMPLETE (for SERVICE) (MX)
101 A-1847-211-A DMB19 BOARD, COMPLETE (for SERVICE) (IND)
101 A-1847-212-A DMB19 BOARD, COMPLETE (for SERVICE) (EA)
101 A-1847-213-A DMB19 BOARD, COMPLETE (for SERVICE)
(SP, TH)
101 A-1847-214-A DMB19 BOARD, COMPLETE (for SERVICE) (CH)
101 A-1847-215-A DMB19 BOARD, COMPLETE (for SERVICE) (BR)
102 3-077-331-21 +BV3 (3-CR)
103 1-500-386-11 FILTER, CLAMP (FERRITE CORE) (SLK20D)
103 1-543-798-11 FILTER, CLAMP (FERRITE CORE) (SLK10D)
104 3-087-053-01 +BVTP2.6 (3CR)
105 1-828-301-61 WIRE (FLAT TYPE) (7 CORE) (200 mm)
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
B
B
D
C
C
D
H
H
F
E
E
F
G
G
not supplied
not supplied
not
supplied
not
supplied
#2
#2
not supplied
not supplied
DISPLAY board section
cover (CDM) section
101
102
104
105
not supplied
(TERMINAL board)
not supplied
(JACK board)
not supplied
not supplied
not supplied
not supplied
103
To Next Page
