Sony HCD-SLK20D User Manual

HCD-SLK10D/SLK20D
19

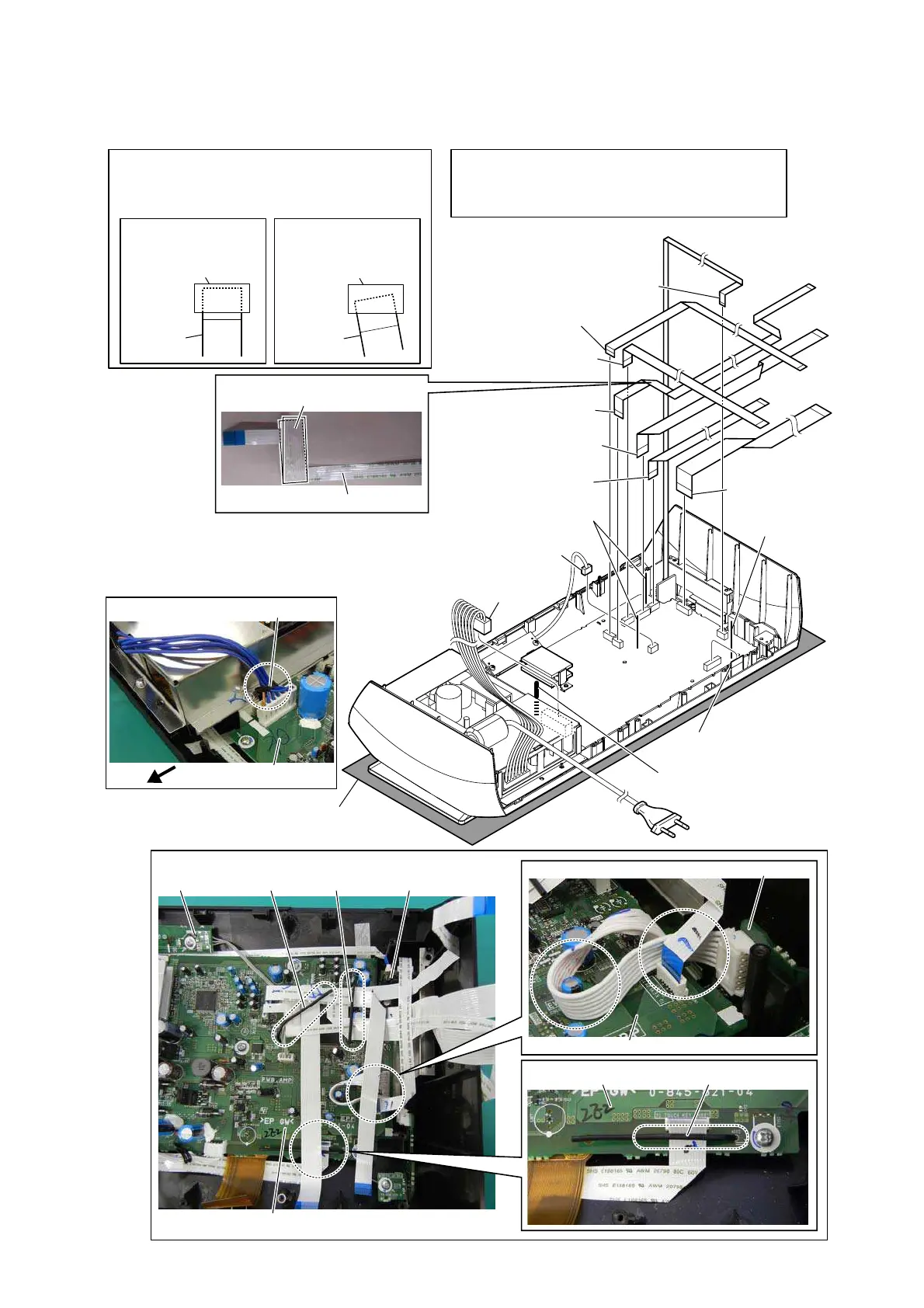

2-14. MAIN BOARD-1
MAIN board
‡:LUHVHWWLQJ
Note 3:
When you install the wire (flat type), please
install them correctly.
There is a possibility that this machine damages
when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline.
wire
(flat type)
wire
(flat type)
connector
OK NG
–5HDUERWWRPYLHZ–
1 Lift up two lead pins.
1 Lift up the lead pin.
qa Lift up the clamp (L35).
clamp (L35)
2
wire (flat type) (7 core)
(CN103)
3
wire (flat type) (9 core)
(CN301)
7
wire (flat type) (9 core)
(CN105)
4
wire (flat type) (11 core)
(CN101)
8
wire (flat type) (11 core)
(CN302)
0
wire (flat type) (11 core)
(CN109)
5
wire (flat type) (5 core)
(CN305)
6
wire (flat type) (13 core)
(CN102)
9
connector (CN107)
Note 2:
When you remove the connector, it is necessary
to note it because it is very hard.
qs
connector
(CN900)
Note 1:
Please spread a sheet under a unit
not to injure front panel.
Note 4:
Do not insert
the wire (flat type)
in the same amount of
connector by mistake. Refer to
“2-21. HOW TO BEND
WIRE (FLAT TYPE)”
(page 24) and “5-1. FLAME
PRINTED WIRING BOARDS”
(page 31) for details.
‡:LUHVHWWLQJ
wire (flat type) (5 core)
tape
‡:LUHVHWWLQJ
lead pin
lead pin lead pin KEY_LEFT boardLOGO board
MAIN board
MAIN board
MAIN board
HP board
bottom side
