HCD-SLK10D/SLK20D
51 4-182-889-01 SCREW (HOOK)
52 3-087-053-01 +BVTP2.6 (3CR)
53 4-269-755-01 PANEL BACK (SLK20D)
53 4-269-755-11 PANEL BACK (SLK10D: BR, SP, TH)
53 4-269-755-21 PANEL BACK (SLK10D: CH)
0
54 3-703-244-02 BUSHING (2104), CORD (EXCEPT TH)
0
54 4-916-783-01 BUSHING, CORD (TH)
55 4-198-670-01 SCREW, FLATHEAD (TP)
56 4-227-843-03 SCREW (TP), FLAT HEAD
0
M601 1-787-344-11 FAN, DC
TU1 1-693-737-21 TUNER (FM/AM)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#2 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

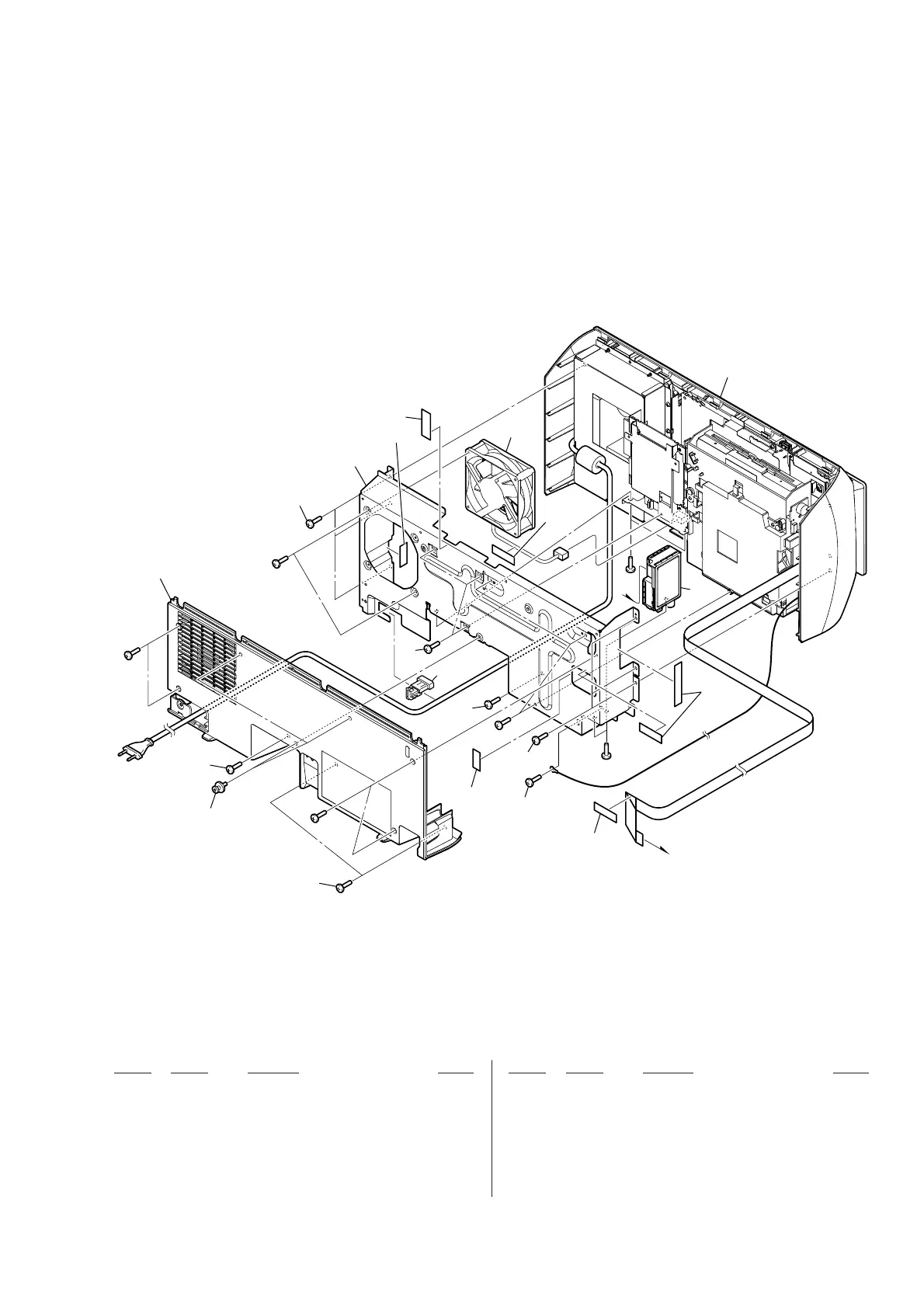

6-2. BACK PANEL SECTION
• Rear side view
#2
#2
#1
#1
TU1
M601
#2
#2
not
supplied
not
supplied
not supplied
not supplied
not supplied
not supplied
not supplied
A
A
51
52
53
55
56
52
52
55
54
52
DMB19 board section
