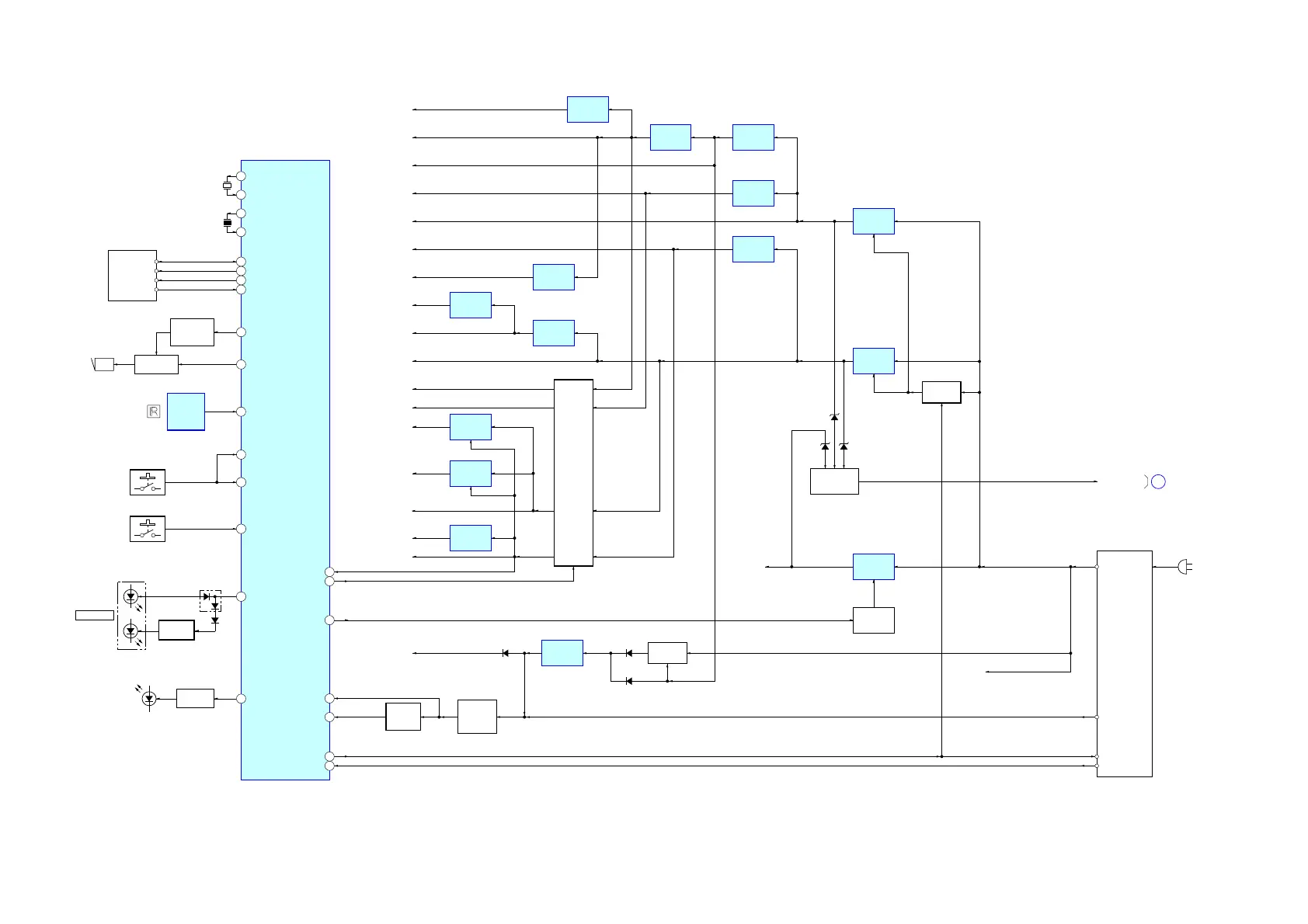

5-6. BLOCK DIAGRAM - POWER SUPPLY Section -
D908
(AC IN)
D909
SWR1
SWITCHING REGULATOR
PVDD
AC-DET
P. CONT
PROTECT
+12V
REGULATOR
IC901
+5V
REGULATOR
IC900
+5V
REGULATOR
IC902
SOFT START
Q903, 904
REGULATOR
CONTROL
Q918, 919
OVER VOLTAGE
DETECT
Q912
D910 D912
D913
+3.3V
REGULATOR
IC906
+9V
REGULATOR
IC903
+3.3V
REGULATOR
IC907
+5V
REGULATOR
IC905
+9V
REGULATOR
IC904
A+3.3V
+1.8V
REGULATOR
IC610
DC_1.8V
+3.3V
REGULATOR
IC609
DC_3.3V
+1.2V
REGULATOR
IC601
DC_1.2V
+1.8V
REGULATOR
IC111
DVD+1.8V
+3.3V
REGULATOR
IC105
DVD A+3.3V
+3.3V
REGULATOR
IC107
RF+3.3V
A+5V
A+9V
LED+9V
D+12V
D+3.3V
D+5V
B+ SWITCH
Q914 - 917,
920 - 923
DMB A+5V
DMB M+9V
DMB D+3.3V
DMB D+5V
VBUS5V
EVER+3.3V
D200
B+ SWITCH
Q905 - 907
+4V
REGULATOR
IC908
SYSTEM CONTROLLER
IC100 (4/4)
SIRCS IN
REMOTE
CONTROL
RECEIVER
IC242
4
TP INT
75
TP RESET
76
TP SCL
48
TP SDA
47
POWER-KEY
68
AD-KEY-0
X110
32.768kHz
XCout
XCIN
11
10
X114
5MHz
XOUT
XIN
13
15
SONYLOGO LED28
D1000, 1001
(SONY LOGO)
LED DRIVE
Q1000
BUZZER CONT3
BUZZER LEVEL
CONTROL
Q103
TP BUZZER26
BUZZER DRIVE
Q104
S261, 266
KEY0
KEY1
12RESET
60P. CONT
19PROTECT-INT
66USB POWER
67MTK POWER
RESET
SWITCH
Q202
RESET
SIGNAL
GENERATOR
Q201
LED DRIVE
Q261
D262
59
85
AD-KEY-1
S263, 265
84
STBY-LED
D270
D261
ON/STANDBY
F
PROTECT_AMP
TOUCH SENSOR
BOARD
BZ701
TP SDA
TP RESET
TP INT
TP SCL
82DVD 3.3V MONITOR
20/AC-CUT
PVDD
(Page 34)
