HCD-SLK10D/SLK20D
HCD-SLK10D/SLK20D
3737
For Schematic Diagrams.
Note:
• All capacitors are in —F unless otherwise noted. (p: pF) 50
WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ÿ and 1/4 W or less unless otherwise
specifi ed.
•
f
: Internal component.
• C : Panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground
under no-signal (detuned) conditions.
no mark
: TUNER
• Voltages are taken with VOM (Input impedance 10 M:).
Voltage variations may be noted due to normal production
tolerances.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
• Circled numbers refer to waveforms.
• Signal path.
F : AUDIO
E : VIDEO
J : DISC PLAY
f : TUNER
p : USB
l : MEMORY CARD
i : AUDIO IN
• Abbreviation
BR : Brazilian model
CH : Chinese model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
IND : Indian model
MX : Mexican model
SP : Singapore model
TH : Thai model
• The voltage and waveform of CSP (chip size package)
cannot be measured, becaise its lead layout is different
from that of conventional IC.
For Printed Wiring Boards.
Note:
• X : Parts extracted from the component side.
• Y : Parts extracted from the conductor side.
•
f
: Internal component.
•
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• Indication of transistor.
C
B
These are omitted.
E
Q
B
These are omitted.
CE
Q
• Abbreviation
BR : Brazilian model
CH : Chinese model
E2 : 120V AC area in E model
E51 : Chilean and Peruvian models
IND : Indian model
MX : Mexican model
SP : Singapore model
TH : Thai model
• Lead layouts
surface
CSP (Chip Size Package) Lead layout of conventional IC
Caution:
Pattern face side:
(Conductor Side)
Parts face side:
(Component Side)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
• DISPLAY board is multi-layer printed board. However, the
patterns of intermediate-layers have not been included in
this diagrams.

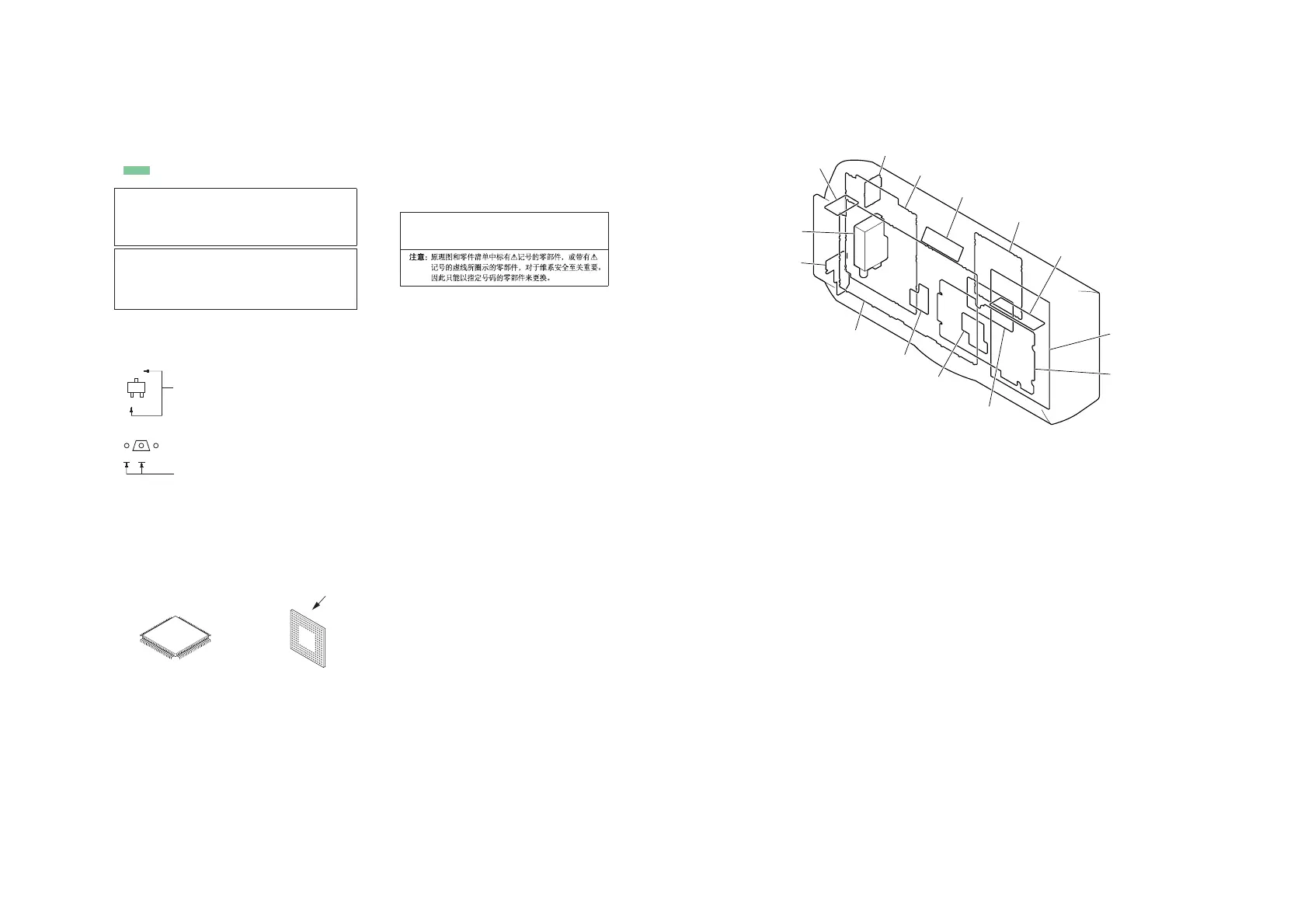

• Circuit Boards Location
Caution:
Pattern face side:
(SIDE B)
Parts face side:
(SIDE A)
Parts on the pattern face side seen
from the pattern face are indicated.
Parts on the parts face side seen from
the parts face are indicated.
Note:
The components identifi ed by mark 0 or
dotted line with mark 0 are critical for safety.
Replace only with part number specifi ed.
HP board
MAIN board
BUZZER board
JACK board
TERMINAL board
KEY_LEFT board
KEY_RIGHT board
TOUCH PANEL board
LOGO board
DMB19 board
DISPLAY board
TUNER (FM/AM)
MS-214 board
SWITCHING REGULATOR
To Next Page
