HCD-SLK10D/SLK20D
11

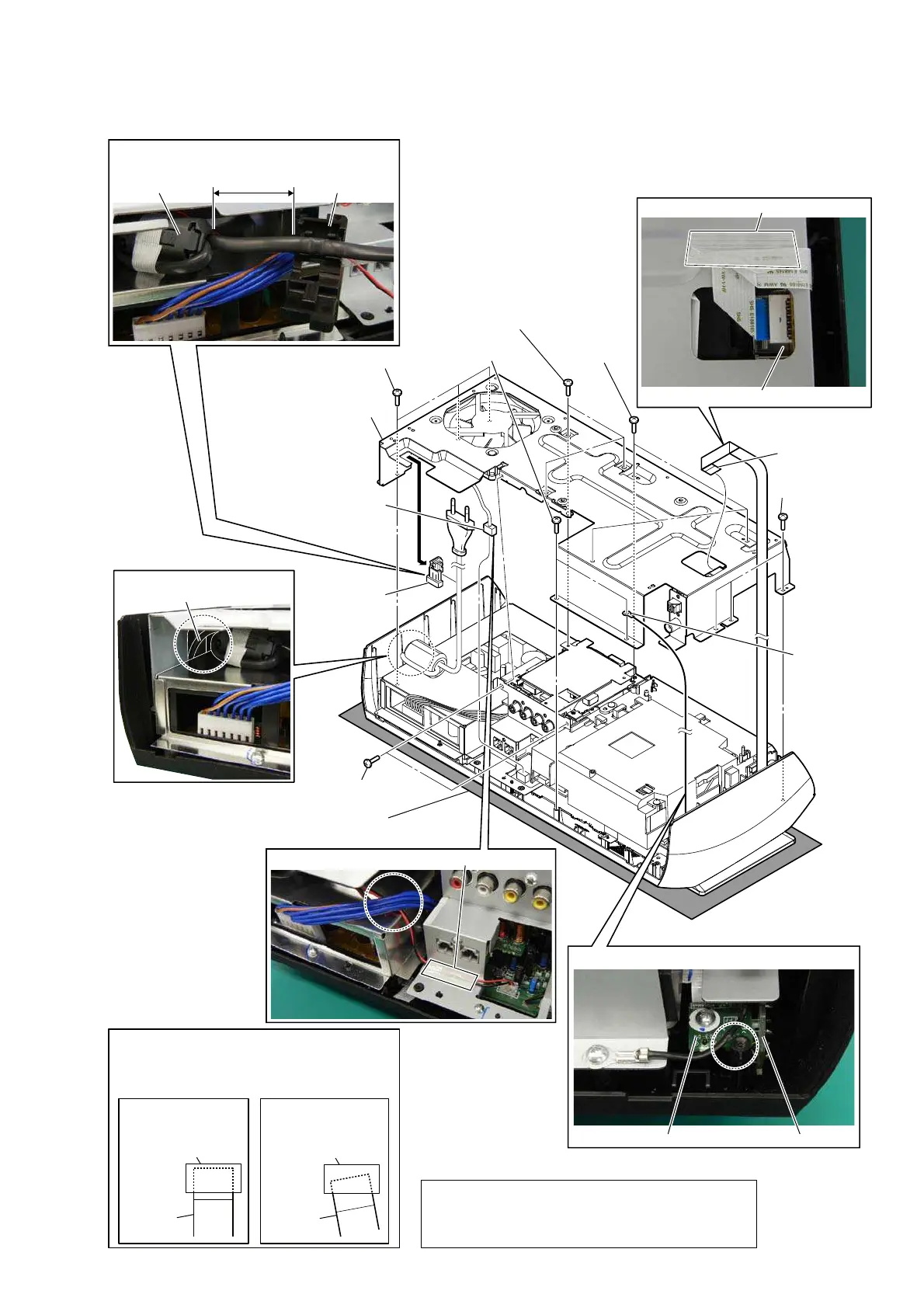

2-4. CHASSIS BLOCK
5 two screws
(BVTP2.6)
7 three flat head screws
(TP)
0 chassis block
7 three flat head
screws (TP)
9 three flat head screws
(TP)
1 wire (flat type)
(11 core)
tuner (FM/AM) (TU1)
6 lug wire
2 fan connector
(CN600)
4 cord
bushing
3
8 two screws
(BVTP3 u 8)
8 three screws
(BVTP3 u 8)
– Rear bottom view –
Note 1:
Please spread a sheet under a unit
not to injure front panel.
Note 2:
When you install the wire (flat type), please
install them correctly.
There is a possibility that this machine damages
when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline.
wire
(flat type)
wire
(flat type)
connector
OK NG
tape
‡
: ire V etti QJ
power cord
‡
3 ower F or G V etti QJ
cord bushing
‡
3 ower F or G V etti QJ
30 ± 5 mm
filter clamp
(ferrite core)
tape
HP HOLDER board HP board
‡ : ire V etti QJ
‡
: ire V etti QJ
Note 3:
Do not insert
the wire (flat type)
in the same amount of
connector by mistake. Refer to
“2-21. HOW TO BEND
WIRE (FLAT TYPE)”
(page 24) and “5-1. FLAME
PRINTED WIRING BOARDS”
(page 31) for details.
