HCD-SLK10D/SLK20D
16

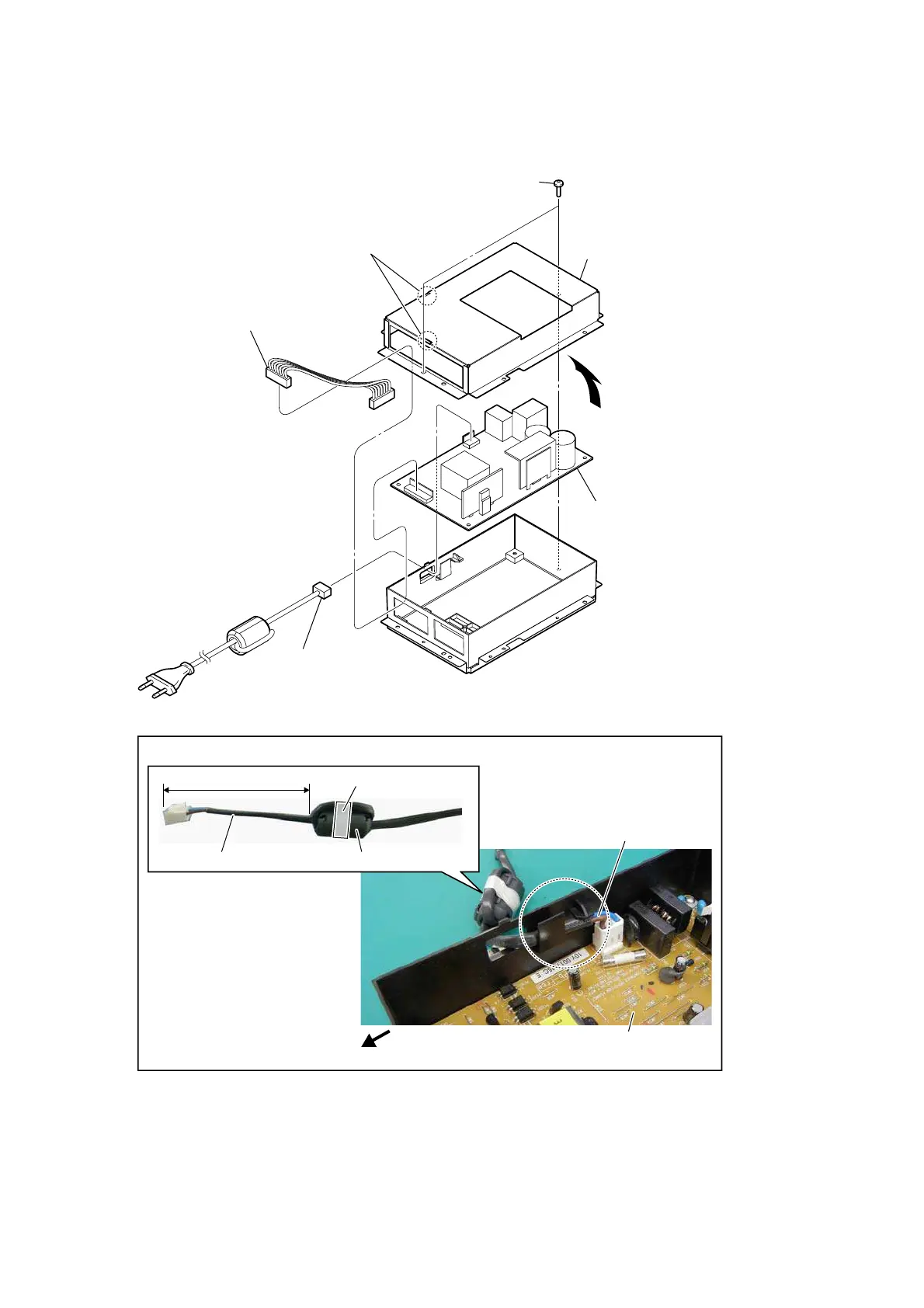

2-11. SWITCHING REGULATOR (SWR1)
‡3RZHUFRUGVHWWLQJ
switching regulator
(SWR1)
bottom side
tape
filter clamp (ferrite core)power cord
power cord
100 mm
–3RZHUEORFNUHDUERWWRPYLHZ–
2
1 two screws
(BVTP3 u 8)
4 connector
(CN2)
5 power cord connector
(CN1)
6 switching regulator
(SWR1)
3 shield case (power)
Note:
When you install the shield case (power),
confirm the position of the ditch.
