HCD-SLK10D/SLK20D
23

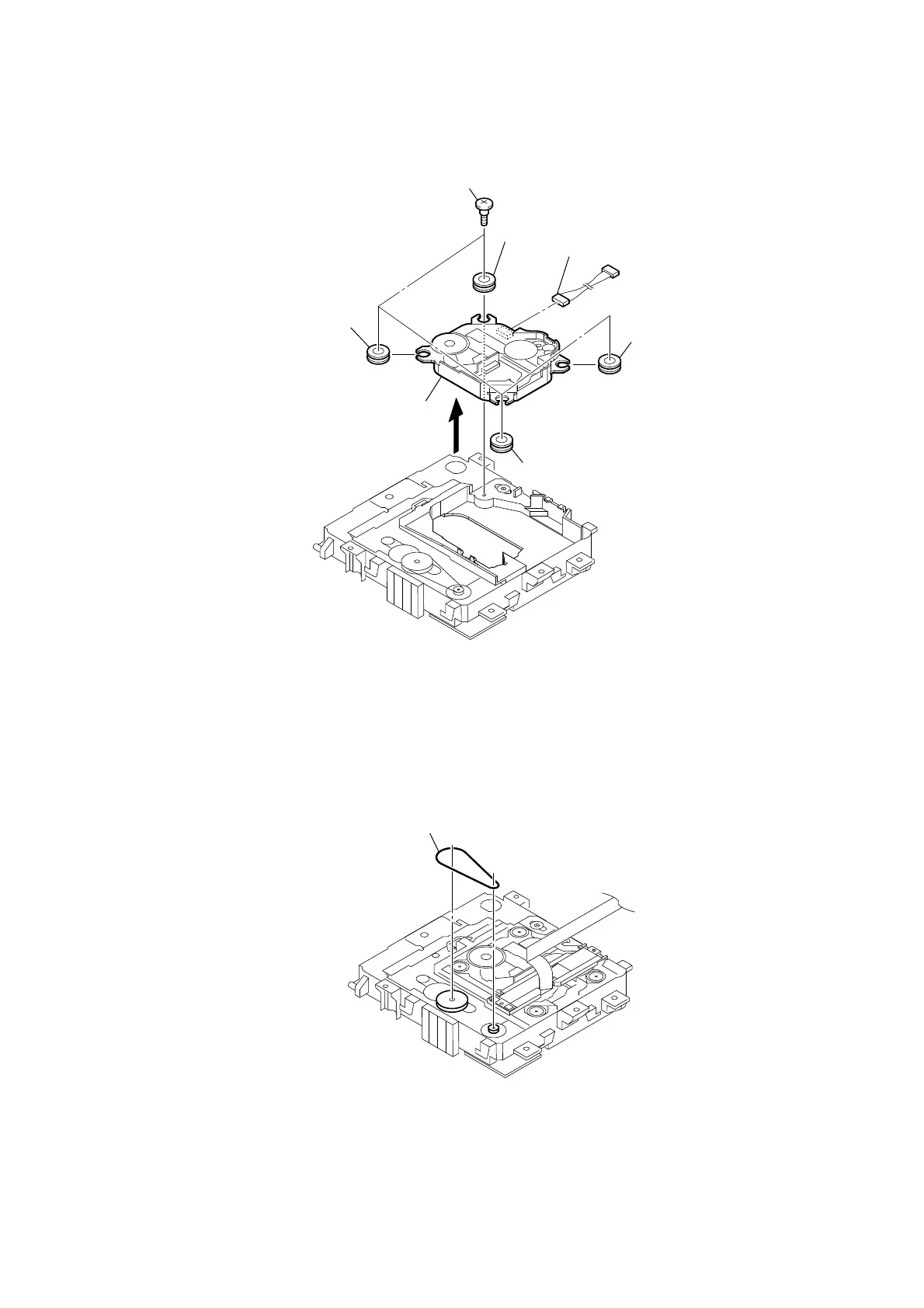

2-19. OPTICAL PICK-UP BLOCK (KHM-313CAB)
2-20. BELT (MOT)
– DVD mechanism deck block bottom view –
1 belt (MOT)
– DVD mechanism deck block bottom view –
1
four insulator screws
2
4
insulator
3
connector
5
optical pick-up block
(KHM-313CAB)
4
insulator
4
insulator
4
insulator
