HCD-SLK10D/SLK20D
12

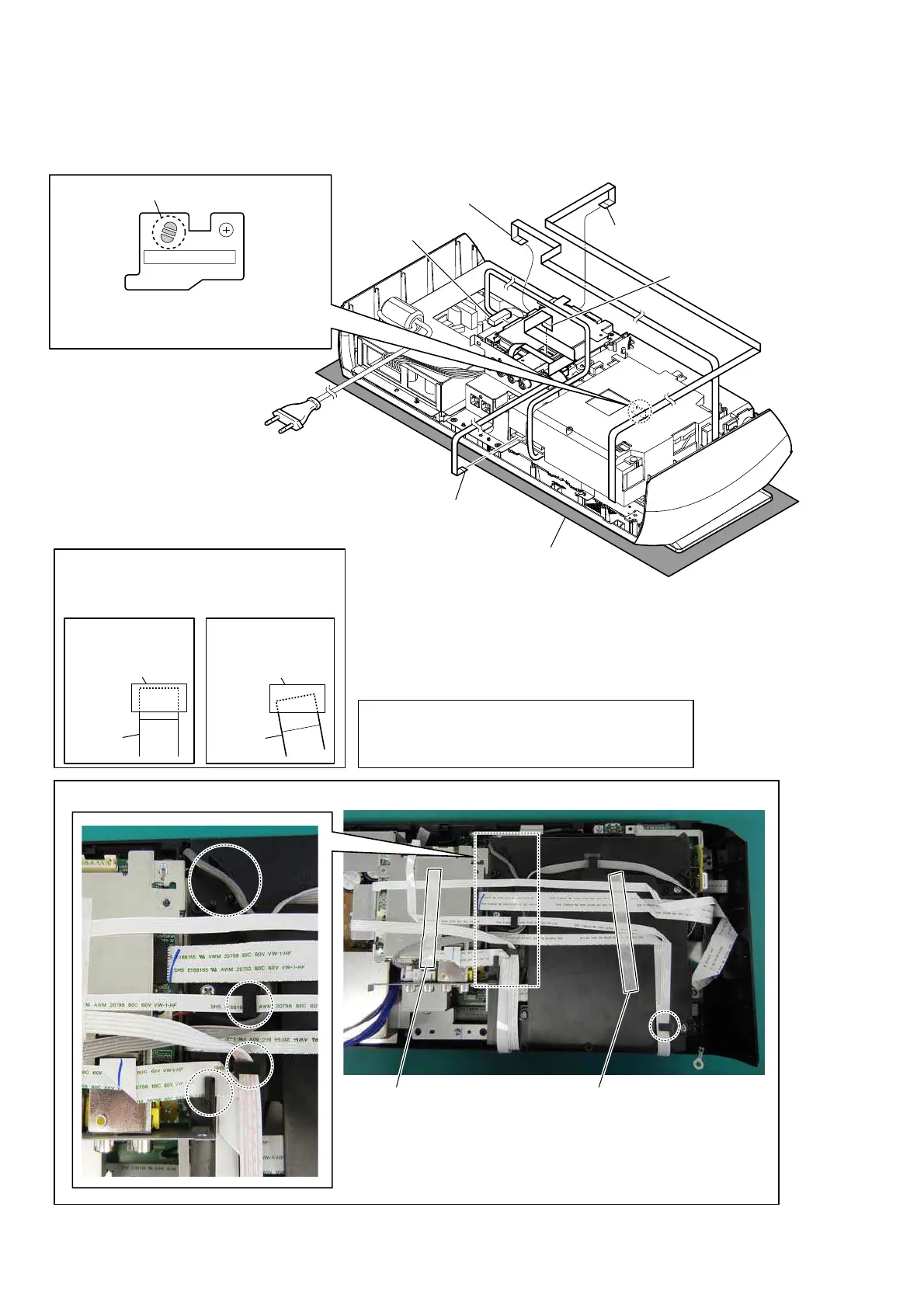

2-5. DMB19 BOARD BLOCK-1
Note 2: Before disconnecting the wire (fl at type) (24 core) of optical pick-up block, solder the short-land.
Note 3:
When assembling the optical pick-up block,
remove the solder of short-land after
connecting the flexible flat cable 24P.
2 flexible flat cable (5 core)
(CN1107)
5 flexible flat cable 24P
(CN101)
3 flexible flat cable (5 core)
(CN4601)
6 wire (flat type) (7 core)
(CN001)
tape
4 connector
(CN601)
– Rear bottom view –
Note 1:
Please spread a sheet under a unit
not to injure front panel.
tape
Note 4:
When you install the flat cable, please install
them correctly.
There is a possibility that this machine damages
when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline.
flat cable flat cable
connector
OK NG
‡:LUHVHWWLQJ
Note 5:
Do not insert
the wire (flat type)
in the same amount of
connector by mistake. Refer to
“2-21. HOW TO BEND
WIRE (FLAT TYPE)”
(page 24) and “5-1. FLAME
PRINTED WIRING BOARDS”
(page 31) for details.
1
Solder the short-land.
