HCD-SLK10D/SLK20D
15

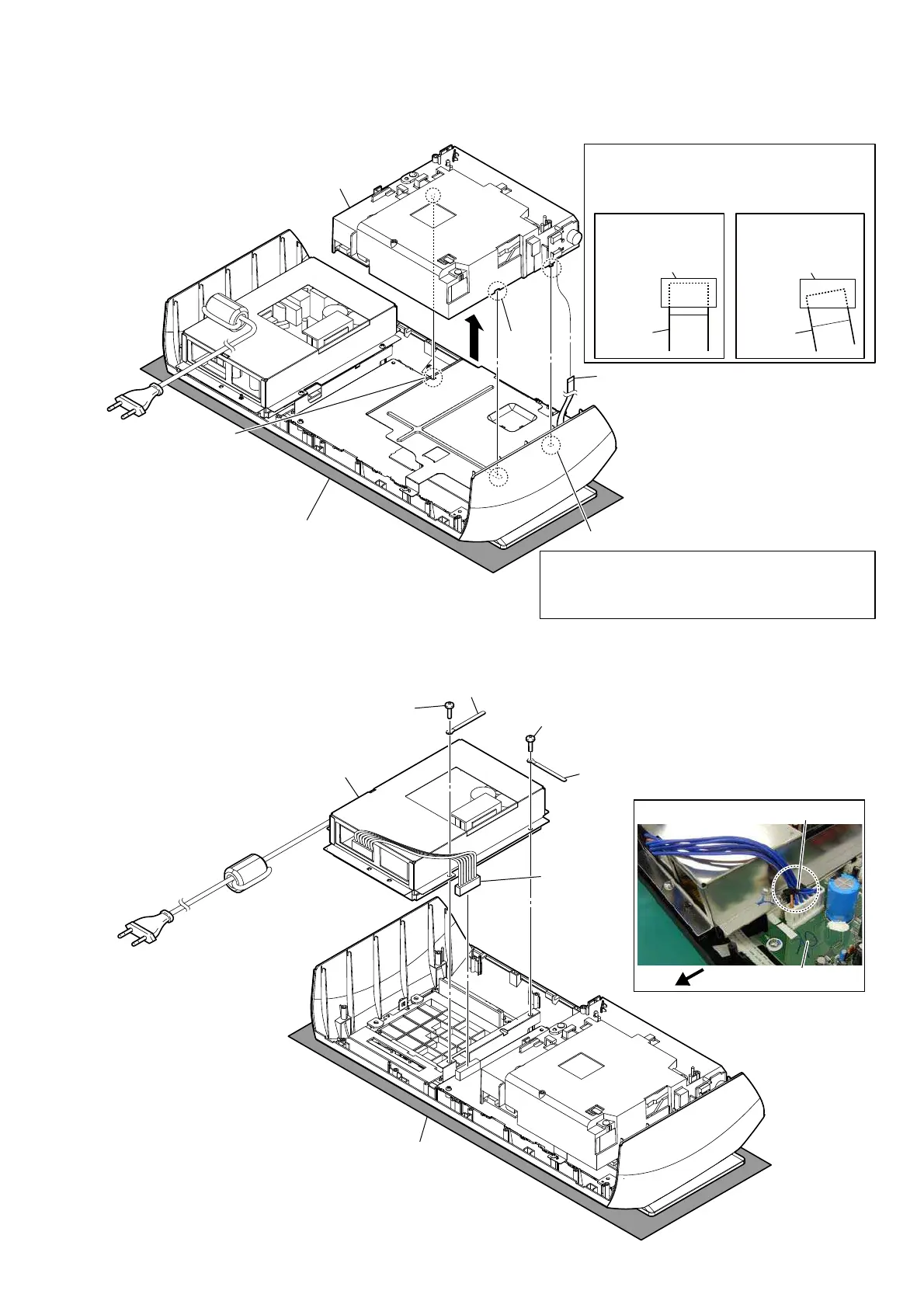

2-9. MD BLOCK
2-10. POWER BLOCK
– Rear bottom view –
Note 1:
Please spread a sheet under a unit
not to injure front panel.
2 wire (flat type) (9 core)
(CN703)
ditches
ditches
ditches
1
3
MD block
Note 2:
When you installing the cover (CDM)
block, match the position of three
ditches.
Note 3:
When you install the wire (flat type), please
install them correctly.
There is a possibility that this machine damages
when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline.
wire
(flat type)
wire
(flat type)
connector
OK NG
Note 4:
Do not insert
the wire (flat type)
in the same amount of
connector by mistake. Refer to
“2-21. HOW TO BEND
WIRE (FLAT TYPE)”
(page 24) and “5-1. FLAME
PRINTED WIRING BOARDS”
(page 31) for details.
2 screw
(BVTP2.6)
3 clamp (L35)
3 clamp (L35)
2 screw
(BVTP2.6)
1 connector
(CN900)
4 power block
– Rear bottom view –
Note:
Please spread a sheet under a unit
not to injure front panel.
MAIN board
‡
:
ire
V
etti
QJ
clamp (L35)
bottom side
