Sony HCD-SLK20D - TOUCH PANEL Board

HCD-SLK10D/SLK20D
21

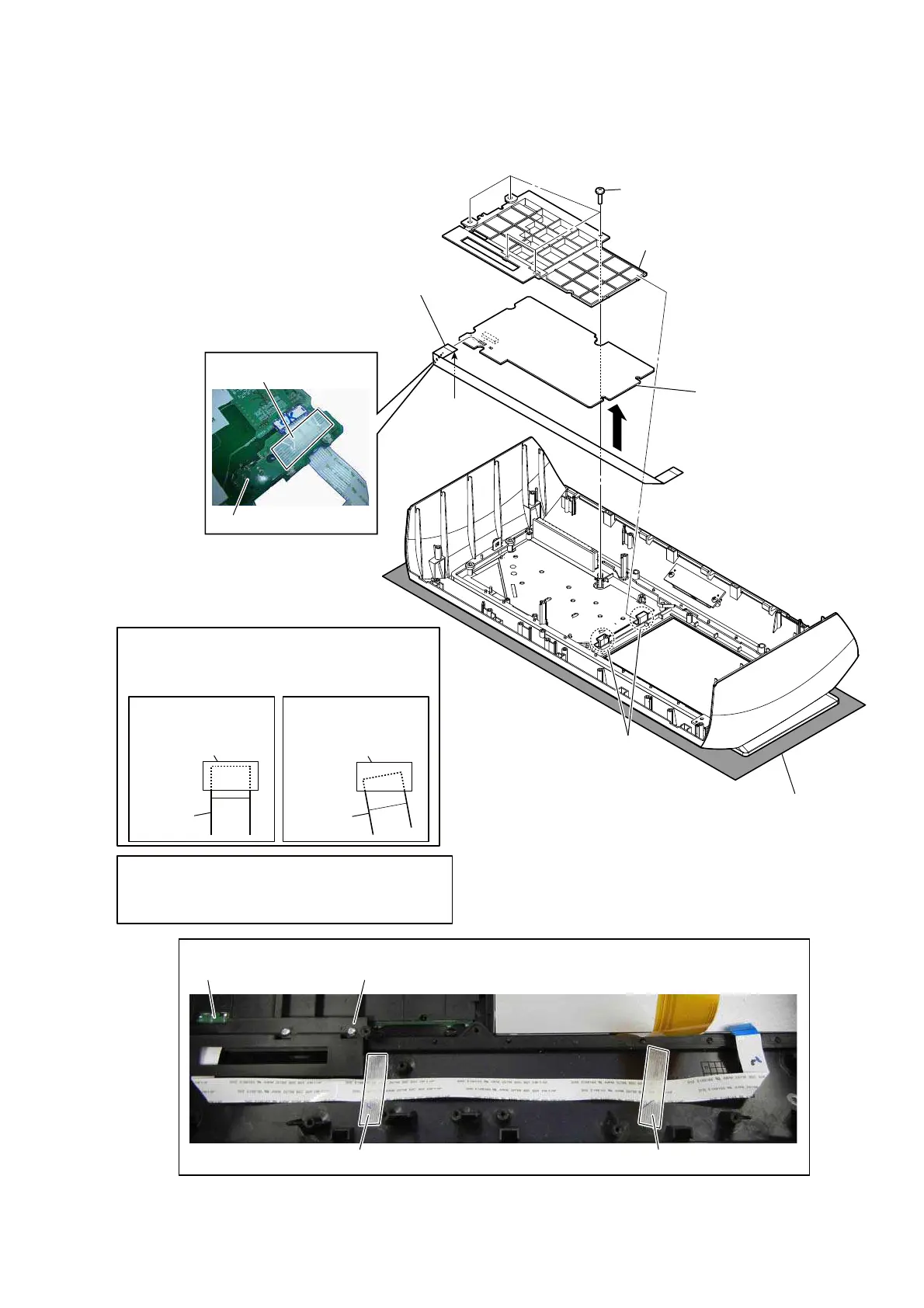

2-17. TOUCH PANEL BOARD
– Front panel inner view –
holder (sensor)
TOUCH PANEL board
tape
tape
‡ : ire V ettin J
1 five screws
(BVTP2.6)
3 holder (sensor)
2 two claws
– Rear bottom view –
4
6 TOUCH PANEL board
TOUCH PANEL board
tape
terminal side
‡ : ire V ettin J
Note 1:
Please spread a sheet under a uni
t
not to injure front panel.
5
wire (flat type) (11 core)
(CN801)
Note 2:
When you insert the wire (flat type) (11 core)
in CN801 on TOUCH PANEL board
, it is not
necessary to make a mistake in the terminal
side of the
wire (flat type) (11 core).
Note 3:
When you install the wire (flat type), please
install them correctly.
There is a possibility that this machine damages
when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline.
wire
(flat type)
wire
(flat type)
connector
OK NG
Note 4:
Do not insert
the wire (flat type)
in the same amount of
connector by mistake. Refer to
“2-21. HOW TO BEND
WIRE (FLAT TYPE)”
(page 24) and “5-1. FLAME
PRINTED WIRING BOARDS”
(page 31) for details.
