HCD-SLK10D/SLK20D
22

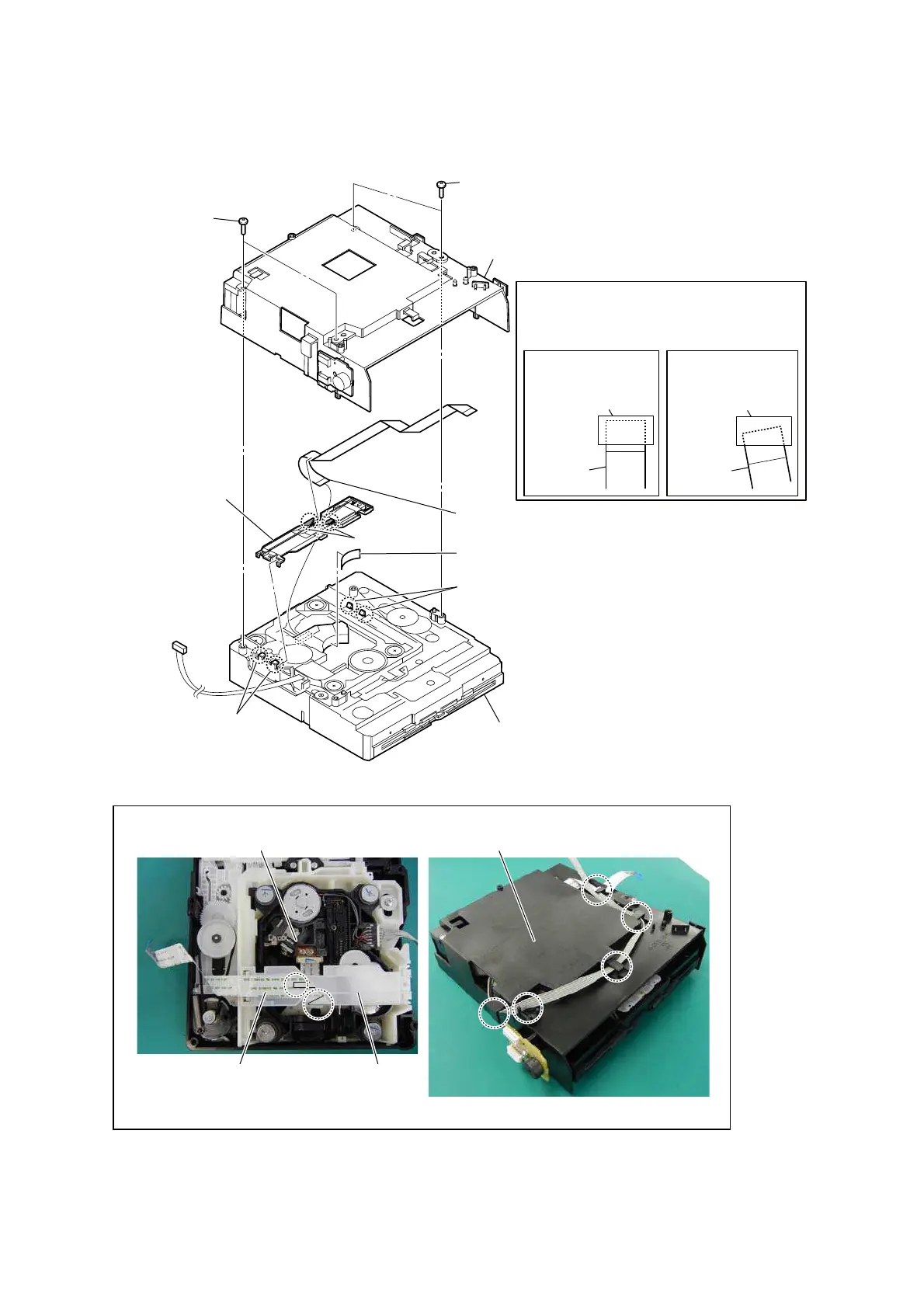

2-18. DVD MECHANISM DECK (CDM86S-DVBU101)
1 two screws
(BVTP3 u 8)
1 two screws
(BVTP3 u 8)
2 cover (CDM) 86S block
3 two claws
4 two claws
6 flexible flat cable 24P
flexible flat
cable
flexible flat
cable
7 sheet (BU)
8
DVD mechanism deck
(CDM86S-DVBU101)
4 two claws
– DVD mechanism deck block bottom view –
MD block
holder (FFC)flexible flat cable 24P
optical pick-up
– MD block rear top view –
– DVD mechanism deck block bottom view –
3
ower cord settin
J
Insert is straight
to the interior.
connector
Insert is incline.
connector
OK NG
5 holder (FFC)
Note 1:
The holder (FFC) is not
supplied.
Please detach from the
former unit, and install
it in a new unit again.
Note 2:
When you install the flexible flat cable, please
install them correctly.
There is a possibility that this machine damages
when not correctly installing it.
