HCD-SLK10D/SLK20D
13

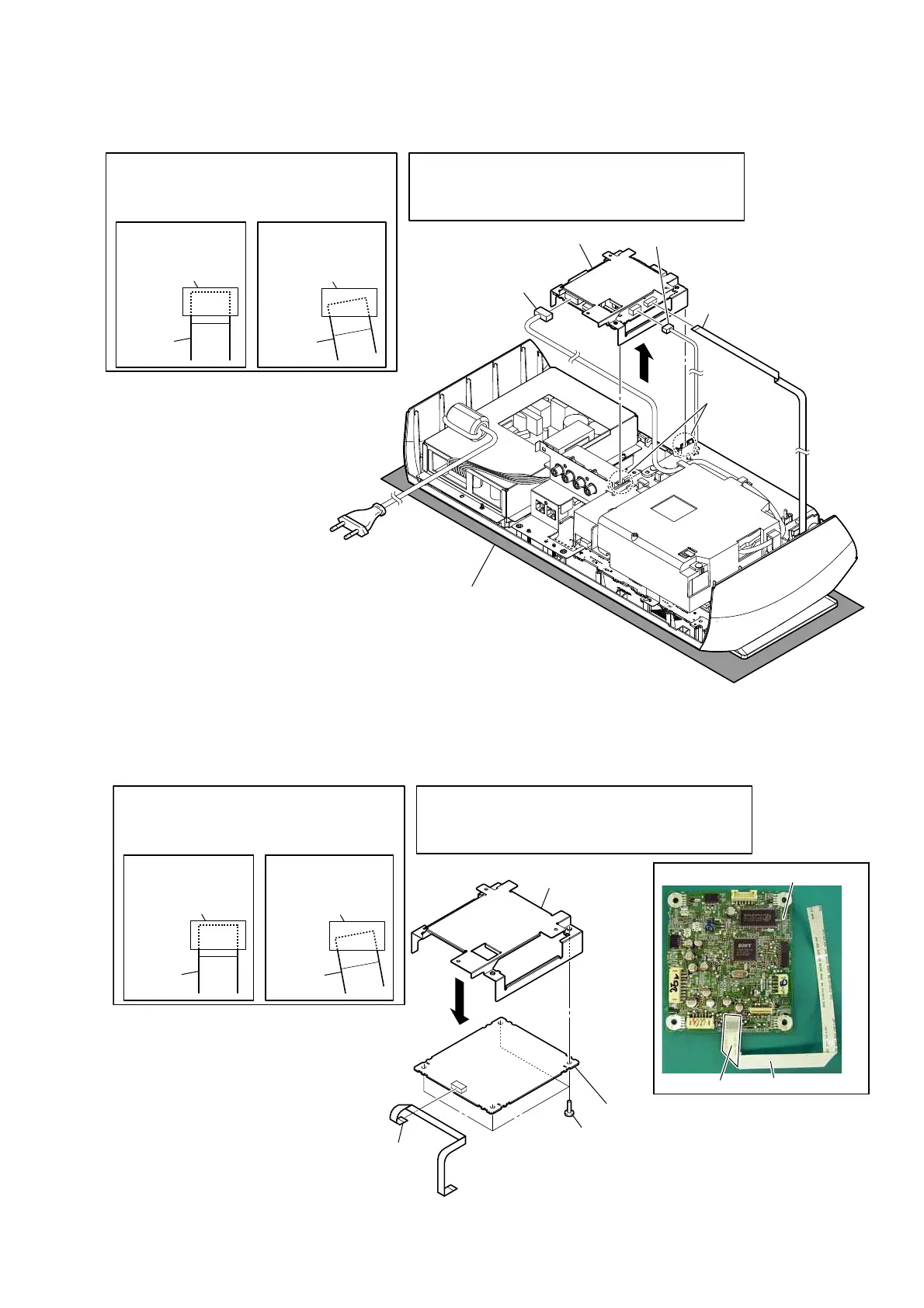

2-6. DMB19 BOARD BLOCK-2
2-7. DMB19 BOARD
– Rear bottom view –
Note 1:
Please spread a sheet under a unit
not to injure front panel.
4 wire (flat type) (13 core)
(CN1109)
1 two hooks
2
3 connector
(CN201)
6 DMB19 board block
5 connector (CN1105)
Note 2:
When you remove the connector,
it is necessary to note it because
it is very hard.
Note 3:
When you install the wire (flat type), please
install them correctly.
There is a possibility that this machine damages
when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline.
wire
(flat type)
wire
(flat type)
connector
OK NG
Note 4:
Do not insert
the wire (flat type)
in the same amount of
connector by mistake. Refer to
“2-21. HOW TO BEND
WIRE (FLAT TYPE)”
(page 24) and “5-1. FLAME
PRINTED WIRING BOARDS”
(page 31) for details.
– DMB19 board block rear bottom view –
1 four screws
(BV3)
3 holder (DMB)
5 DMB19 board
DMB19 board
tape
2
4 wire (flat type) (7 core)
(CN202)
wire (flat type) (7 core)
‡ : ire V etti QJ
Note 1:
When you install the wire (flat type), please
install them correctly.
There is a possibility that this machine damages
when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline.
wire
(flat type)
wire
(flat type)
connector
OK NG
Note 2:
Do not insert
the wire (flat type)
in the same amount of
connector by mistake. Refer to
“2-21. HOW TO BEND
WIRE (FLAT TYPE)”
(page 24) and “5-1. FLAME
PRINTED WIRING BOARDS”
(page 31) for details.
