Sony HCD-SLK20D - MAIN Board-2; LCD Module (LCD901)

HCD-SLK10D/SLK20D
20

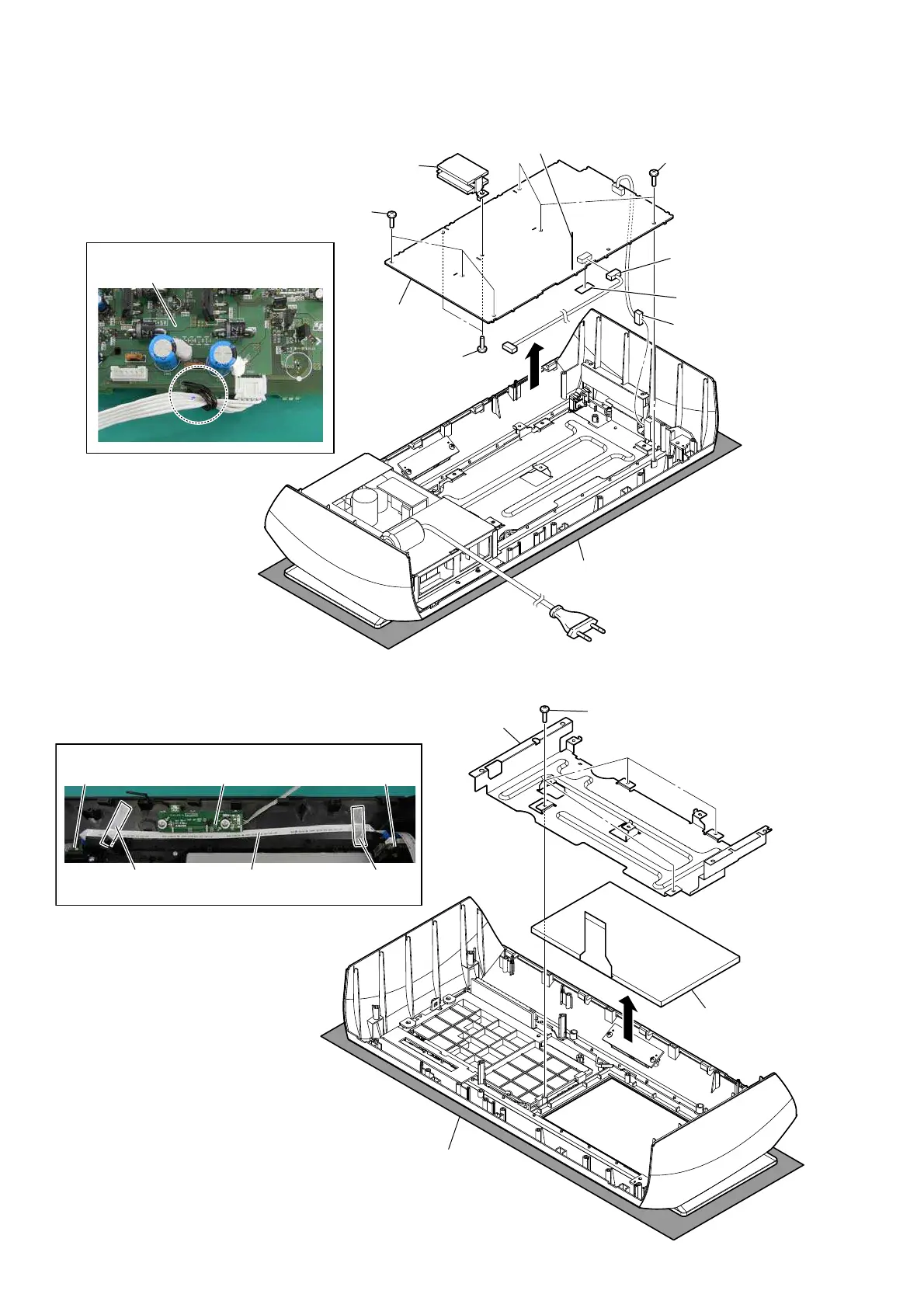

2-15. MAIN BOARD-2
2-16. LCD MODULE (LCD901)
– Rear bottom view –
4 Lift up the lead pin.
1 connector
(CN241)
6 cushion (FPC)
5 connector
(CN901)
2 three screws
(BVTP3 u 8)
2 three screws
(BVTP3 u 8)
7 two screws
(BVTP3 u 8)
8 heat sink (AMP)
9 MAIN board
3
Note:
Please spread a sheet under a unit
not to injure front panel.
MAIN board
‡
: ire V etti QJ
KEY_RIGHT board KEY_LEFT boardLOGO board
tape tape
‡:LUHVHWWLQJ
3
4 LCD module
(LCD901)
–5HDUERWWRPYLHZ–
1 four screws
(BVTP2.6)
2 bracket (LCD)
Note:
Please spread a sheet under a unit
not to injure front panel.
wire (flat type) (5 core)
–)URQWSDQHOLQQHUYLHZ–
