HCD-SLK10D/SLK20D
18

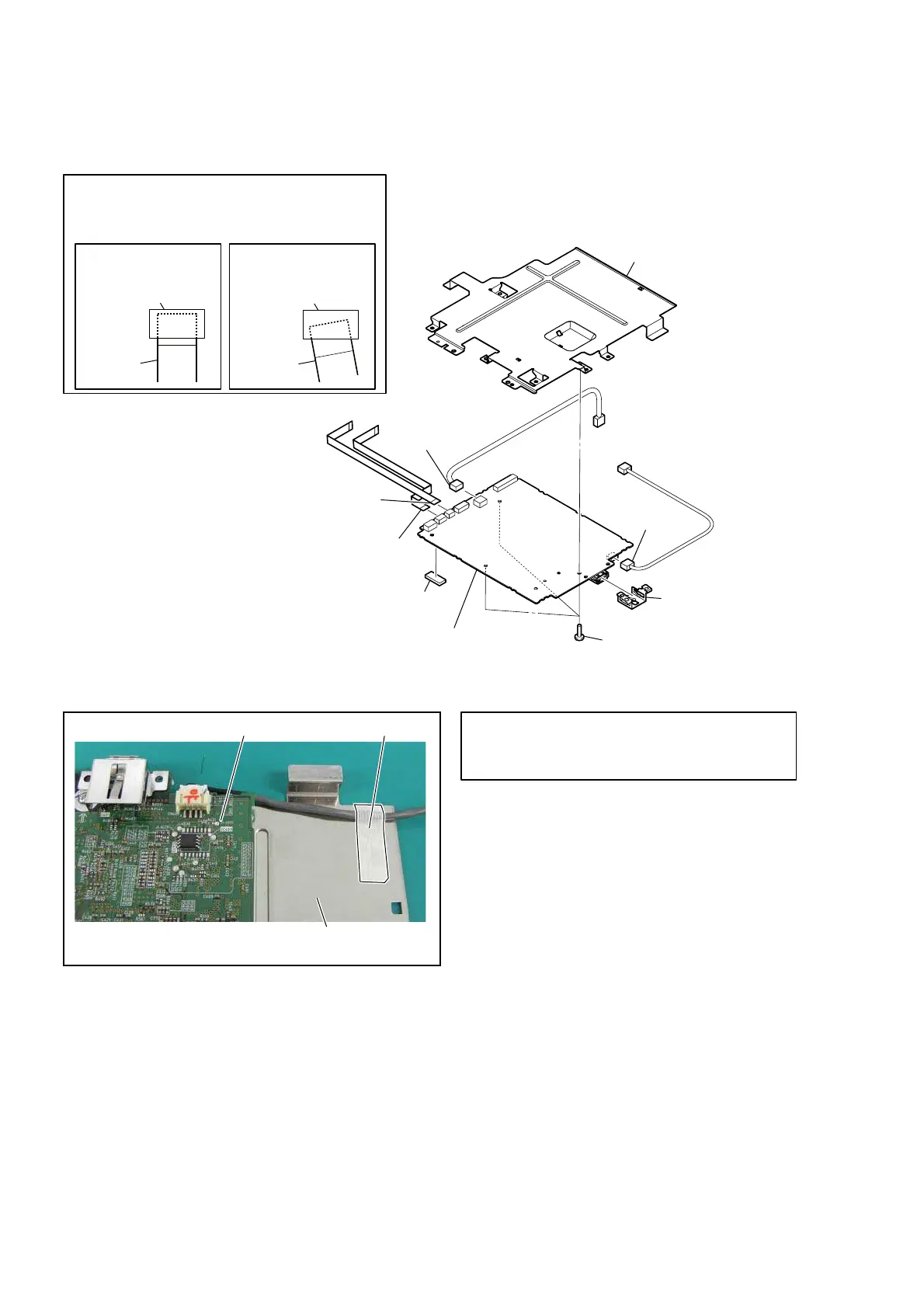

2-13. DISPLAY BOARD
1 three screws
(BVTP2.6)
2 holder (PWB DISPLAY)
holder (PWB DISPLAY)
3 cushion (WH)
6 connector
(CN405)
7 connector
(CN602)
8 ground plate (USB)
– DISPLAY board block rear bottom view –
4 wire (flat type) (7 core)
(CN604)
5 wire (flat type) (5 core)
(CN605)
9 DISPLAY board
DISPLAY board
Note 1:
When you install the wire (flat type), please
install them correctly.
There is a possibility that this machine damages
when not correctly installing it.
Insert is straight
to the interior.
connector
Insert is incline.
wire
(flat type)
wire
(flat type)
connector
OK NG
tape
‡
:
ire
V
etti
QJ
– DISPLAY board block i
QQ
er view –
tape
Note 2:
Do not insert
the wire (flat type)
in the same amount of
connector by mistake. Refer to
“2-21. HOW TO BEND
WIRE (FLAT TYPE)”
(page 24) and “5-1. FLAME
PRINTED WIRING BOARDS”
(page 31) for details.
