Disconnection
1. Open the connector open/close section to release the lock.
Note
Do not open the connector open/close section 90 degrees or more so as not to damage the connector.
2. Pull the flexible card wire.
Connection
1. Insert the flexible card wire fully into the connector.
2. Push the connector open/close section to lock the flexible card wire.
1-6-2. Disconnecting/Connecting Fine-Wire Coaxial Cable
Note
• Be very careful when handling the fine-wire coaxial cable so that fine wires are not disconnected.
• When disconnecting the fine-wire coaxial cable, be sure to hold the connector. Do not attempt to pull the cable.
• Check that the contact surface of the fine-wire coaxial cable connector is not contaminated.

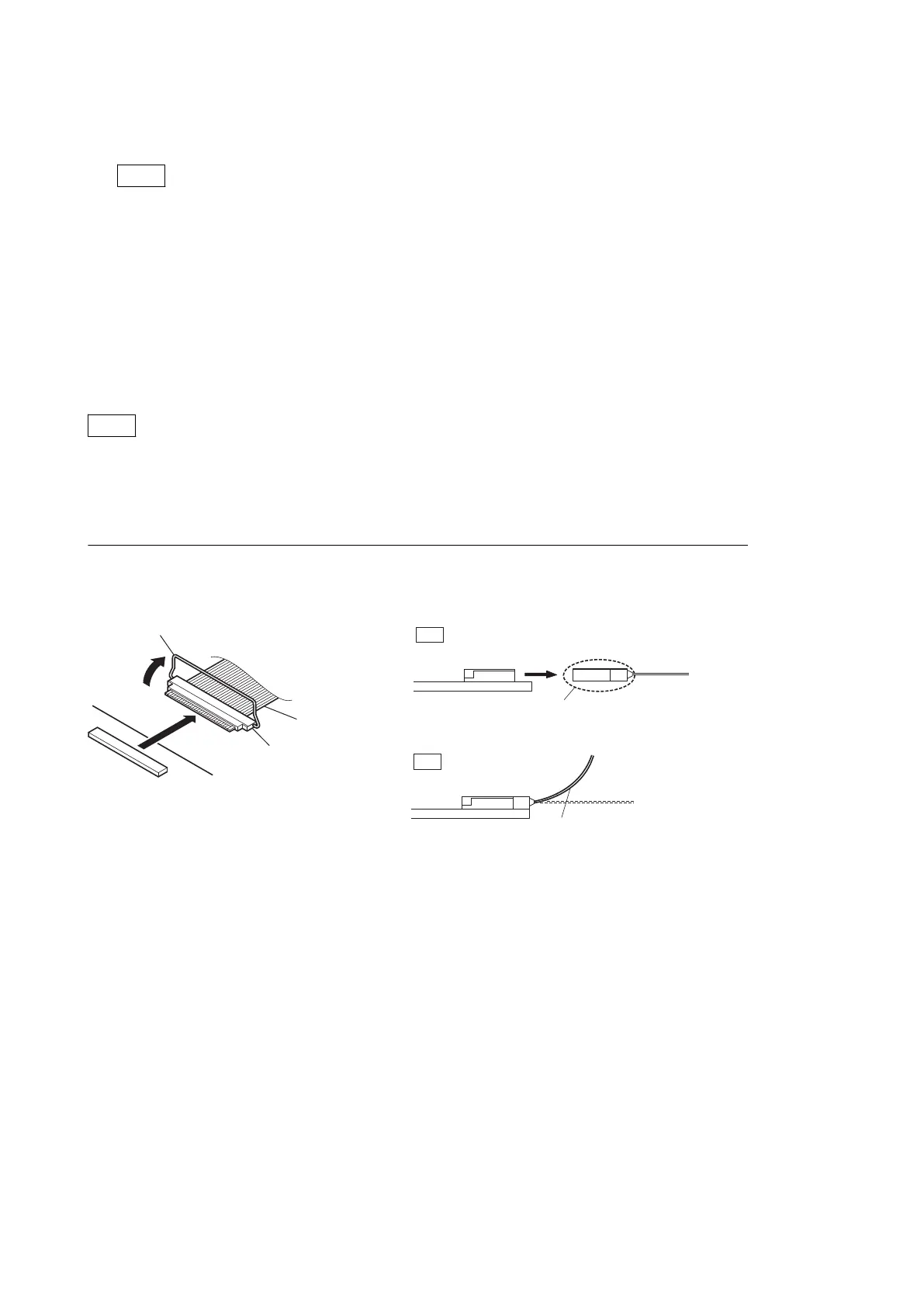

Type A
Disconnecting
Hold the connector to disconnect.
Do not attempt to disconnect by
pulling the cable.
OK
NG
A
Connector
Pull-bar
Fine-wire
coaxial cable
1. Raise the pull-bar in the direction of arrow A to unlock it.
2. Hold both sides of the fine-wire coaxial cable connector, and pull the connector straight to disconnect it.
HXCU-FB80
1-10
