3-13. CN-3972 Board
Preparation
1. Remove the cover. (Refer to “3-2. Cover”.)
2. Remove the AT-196 board. (Refer to “3-8. AT-196 Board and Lithium Battery”.)
3. Remove the DPR block. (Refer to “3-12. DPR-386 Board”.)
Procedure
1. Disconnect the flexible flat cable (10 core) from the connector (CN003) on the CN-3972 board.
2. Remove the two supplied hex screws, then remove the CN-3972 board.

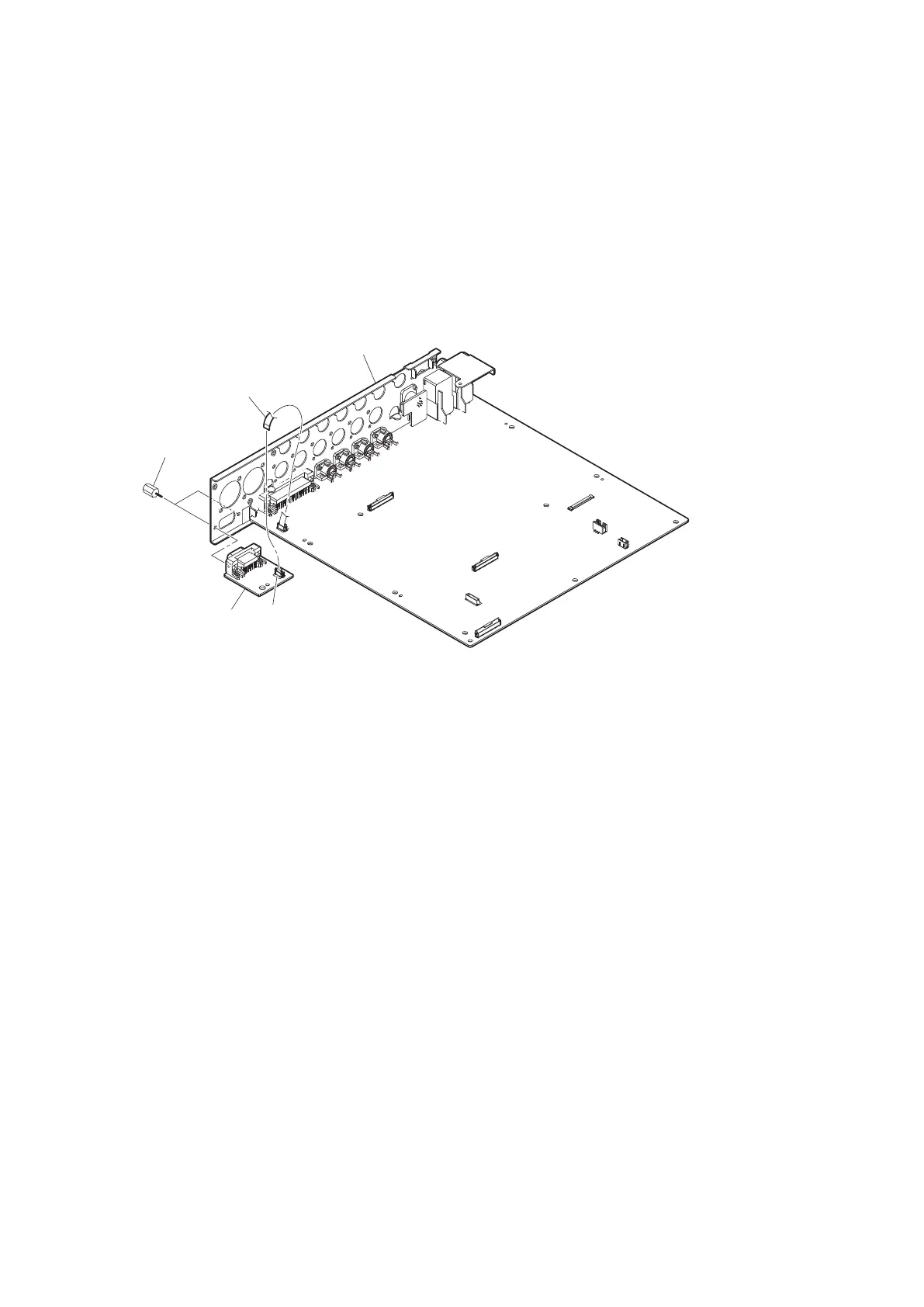

DPR block
Flexible flat cable
(10 core)
Supplied hex screws
CN-3972 board
CN003
3. Install the removed parts by reversing the steps of removal.
HXCU-FB80
3-19
