3-7. Switching Regulator (Small)
Preparation
1. Remove the cover. (Refer to “3-2. Cover”.)
2. Remove the PS-934 board. (Refer to “3-4. PS-934 Board”.)
Procedure
1. Remove the four screws, then remove the PS bracket.
2. Remove the insulating sheet PS-B.
3. Disconnect the two harnesses from the connectors (CN1 and CN51) on the switching regulator (small).
4. Remove the four screws, then remove the switching regulator (small).

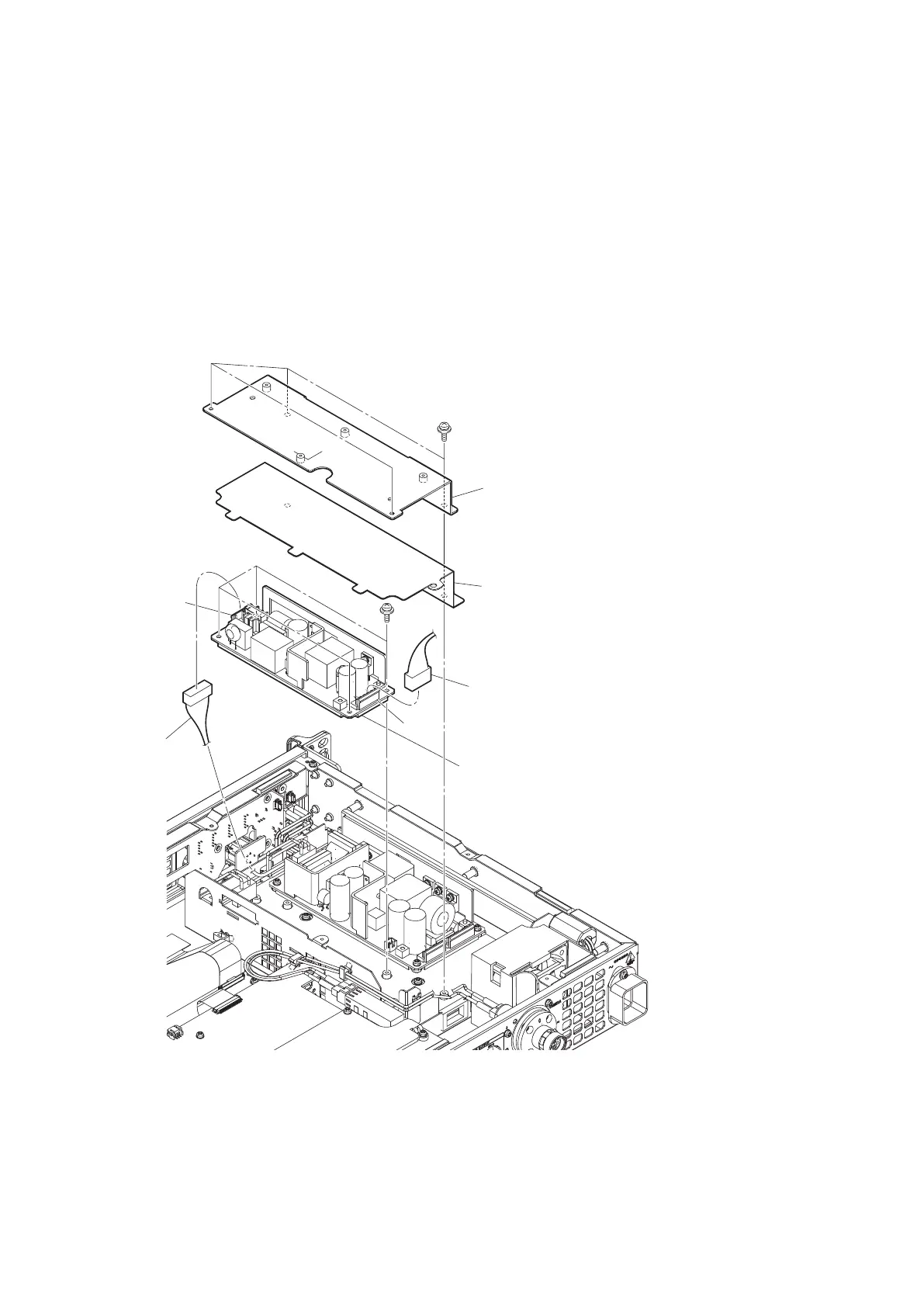

Switching regulator (small)
PSW
3 x 6
PSW
3 x 6
Harness
Harness
Insulating sheet PS-B
PS bracket
CN51
CN1
The illustration shows LEMO model.
5. Install the removed parts by reversing the steps of removal.
