Section 4
Electrical Alignment
4-1. Preparations
4-1-1. Equipment Required
• SD waveform/vector monitor
• Analog HD waveform monitor
• 3G/12G-SDI compatible waveform monitor
• Oscilloscope: Tektronix TDS460A or equivalent
• Frequency counter: Advantest TR5821AK or equivalent
• Audio oscillator: Tektronix SG-5010 or equivalent
• Audio analyzer
Related equipment
• HD color camera HXC-FB80
• Remote control panel RCP-1500 series
4-1-2. Precautions on Adjustments
• Warm up the unit for about 10 minutes before starting adjustments.
• All measuring equipment must have been calibrated.
• “4-1-4. Initial Settings” must have been completed.
• Adjustments for HXC-FB80 must have been completed.

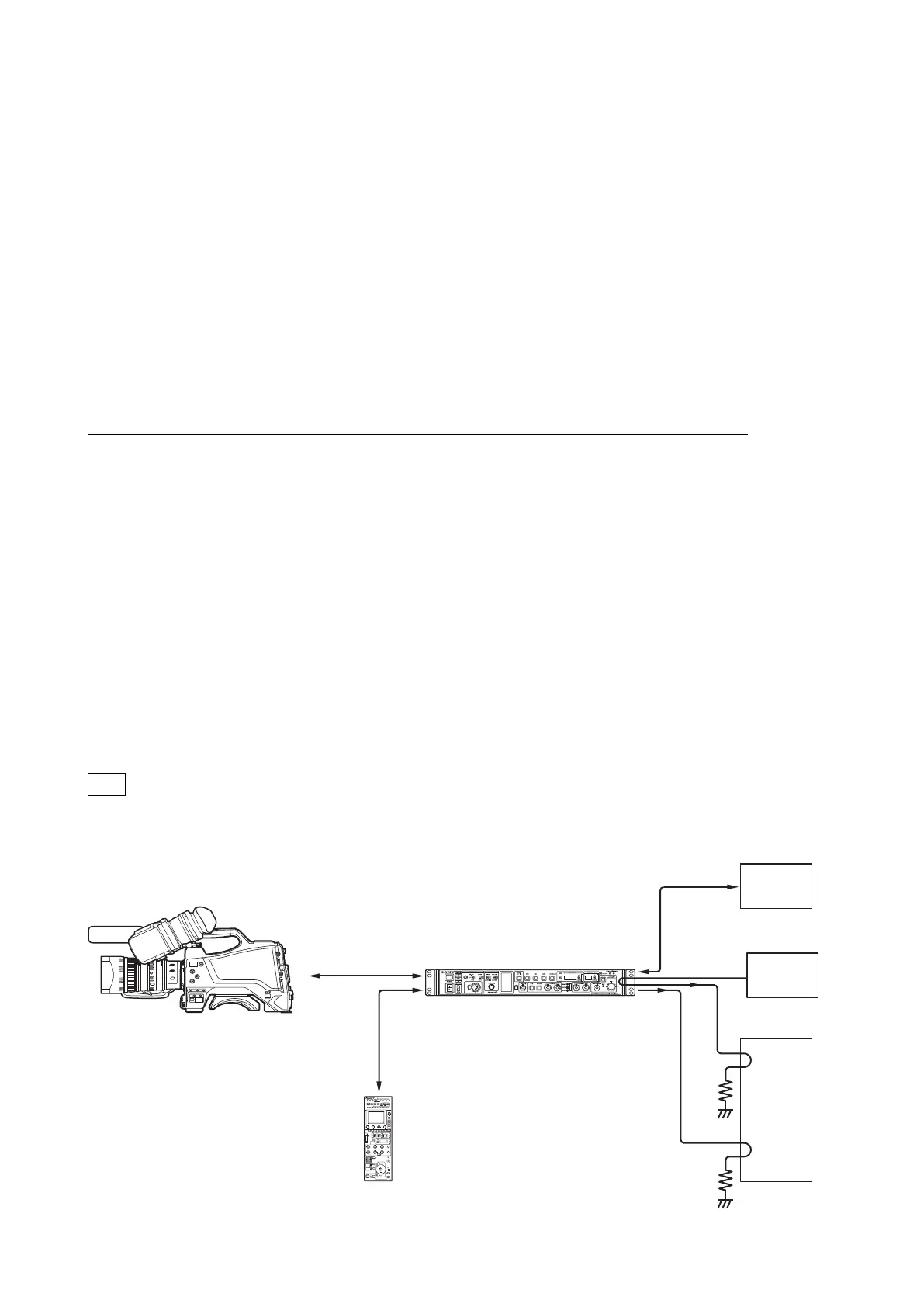

4-1-3. Connection of Equipment
Tip
Transmittable Optoelectrical composite cable: CCFN-25/50/100
75 Ω
75 Ω
Waveform
monitor
PIX/CN-3598
Signal
generator
Audio
oscillator
HD color camera
HXC-FB80
Optoelectrical
composite cable
CCA-5 cable
(max. 50 m)
4K/HD camera control unit
HXCU-FB80
REFERENCE
/DPR-386
Remote control panel
RCP-1500 series
HXCU-FB80
4-1
