3-12. DPR-386 Board
Preparation
1. Remove the cover. (Refer to “3-2. Cover”.)
2. Remove the AT-196 board. (Refer to “3-8. AT-196 Board and Lithium Battery”.)
3. Remove the CN-3958 board. (Refer to “3-10. CN-3958 Board”.)
Procedure
1. Remove the DPR block.
(1) Disconnect the flexible flat cable (45 core) from the connector (CN3) on the DPR-386 board.
(2) Disconnect the four harnesses from the connectors (CN002 and CN005 to CN007) on the PS-934 board.
(3) Open the clamper, then remove the three harnesses.
(4) Remove the harness from the cord clamper.
(5) Remove the six screws, then remove the two AT brackets.
(6) Remove the eight screws, then remove the DPR block in the direction of the arrow.

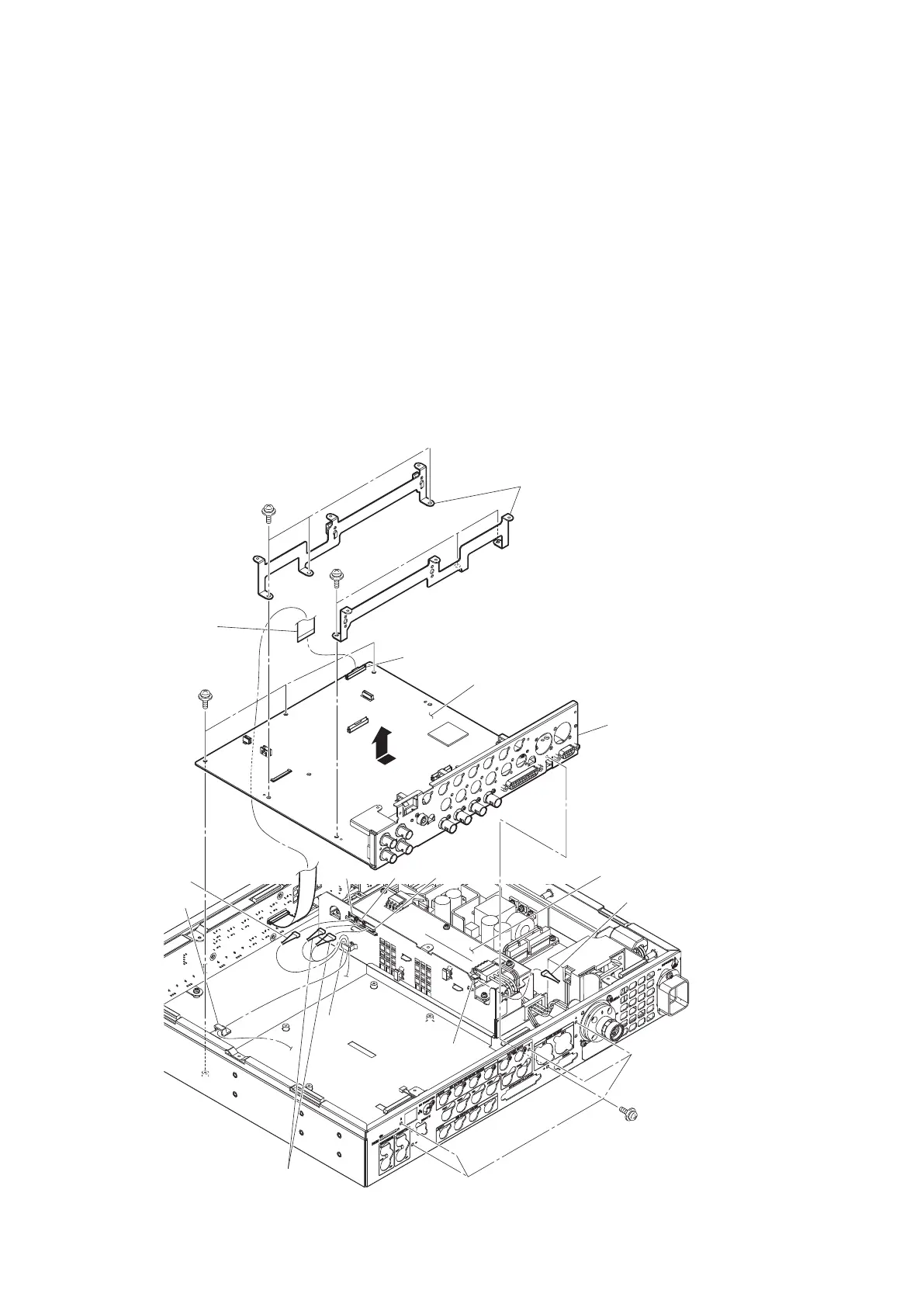

Harness
Harnesses
Clamper
Cord clamper
DPR-386 board
DPR block
PS-934 board
CN005
CN007
CN006CN002
AT brackets
Flexible flat cable
(45 core)
PSW
3 x 6
PSW
3 x 6
PSW
3 x 6
PSW
3 x 6
CN3
Harness
The illustration shows LEMO model.
