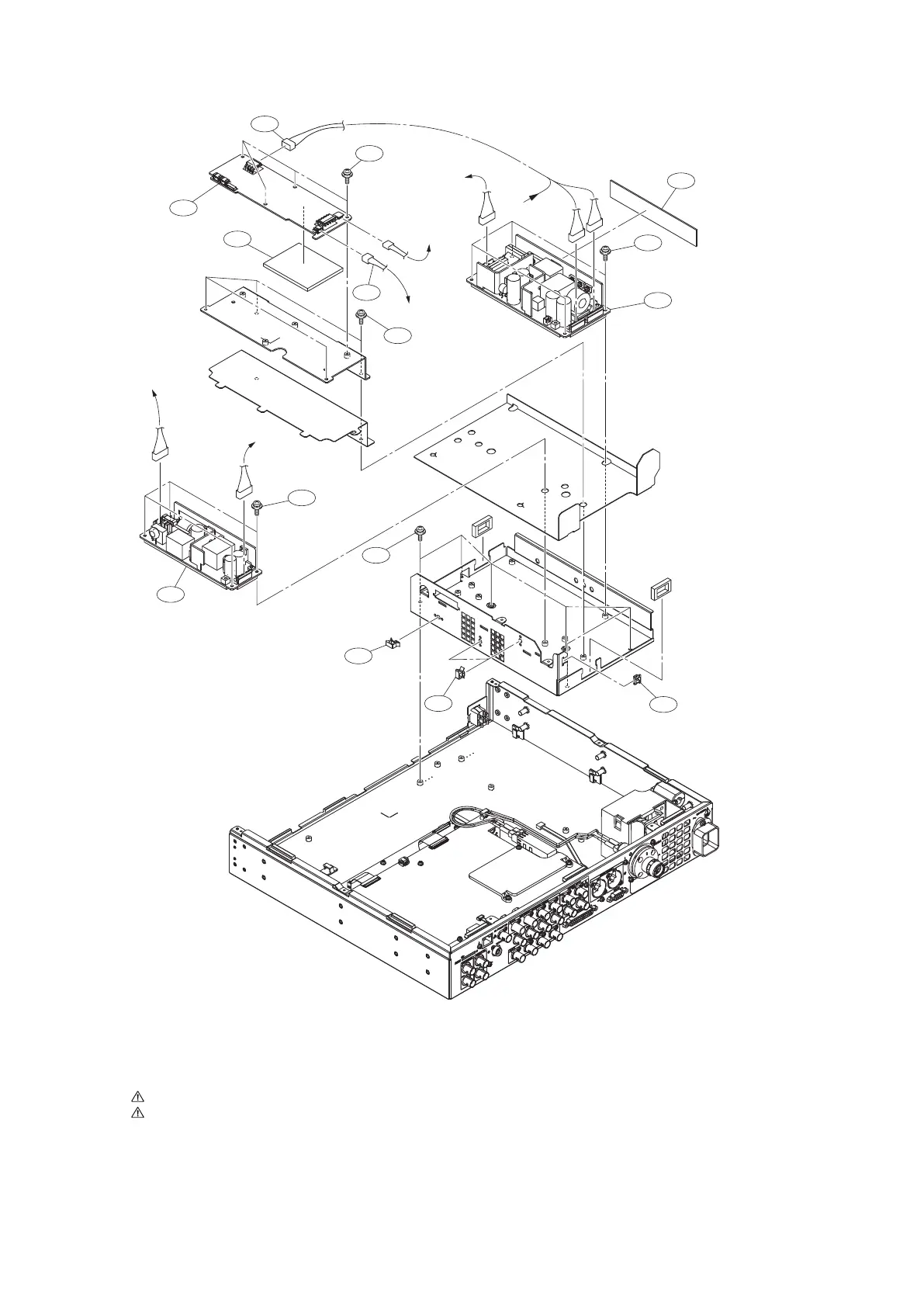

PS Block
a
a
To CN-3968 board
To Power switch
To DC fan
To Power switch
This illustration shows LEMO model.
107
101
105
107
102
107
107
106
106
108
103
104
109
107
110
No. Part No. SP Description
101 A-2195-920-A s PS-934 COMPL
102
1-474-700-11 s REGULATOR, SWITCHING
103
1-474-701-11 s REGULATOR, SWITCHING
104 1-967-974-11 s HARNESS, SUB (DC OUT)
105 1-971-941-11 s HARNESS, SUB (CCU DC OUT) SP
106 3-853-802-01 s CLAMP,REUSE
107 4-382-854-51 s SCREW (M3X6), P, SW (+)
108 4-641-552-01 o SADDLE, LOCK EDGE
109 4-731-146-01 s SHEET (PS-R1), ELECTRIC
No. Part No. SP Description
110 4-731-147-01 s SHEET (PS-R2), ELECTRIC
HXCU-FB80
8-3
To Next Page
