3-15. CN-3985 Board
Preparation
1. Remove the cover. (Refer to “3-2. Cover”.)
2. Remove the front panel assembly. (Refer to “3-3. Front Panel Assembly”.)
3. Remove the SW-1736 board. (Refer to “3-14. SW-1736 Board”.)
Procedure

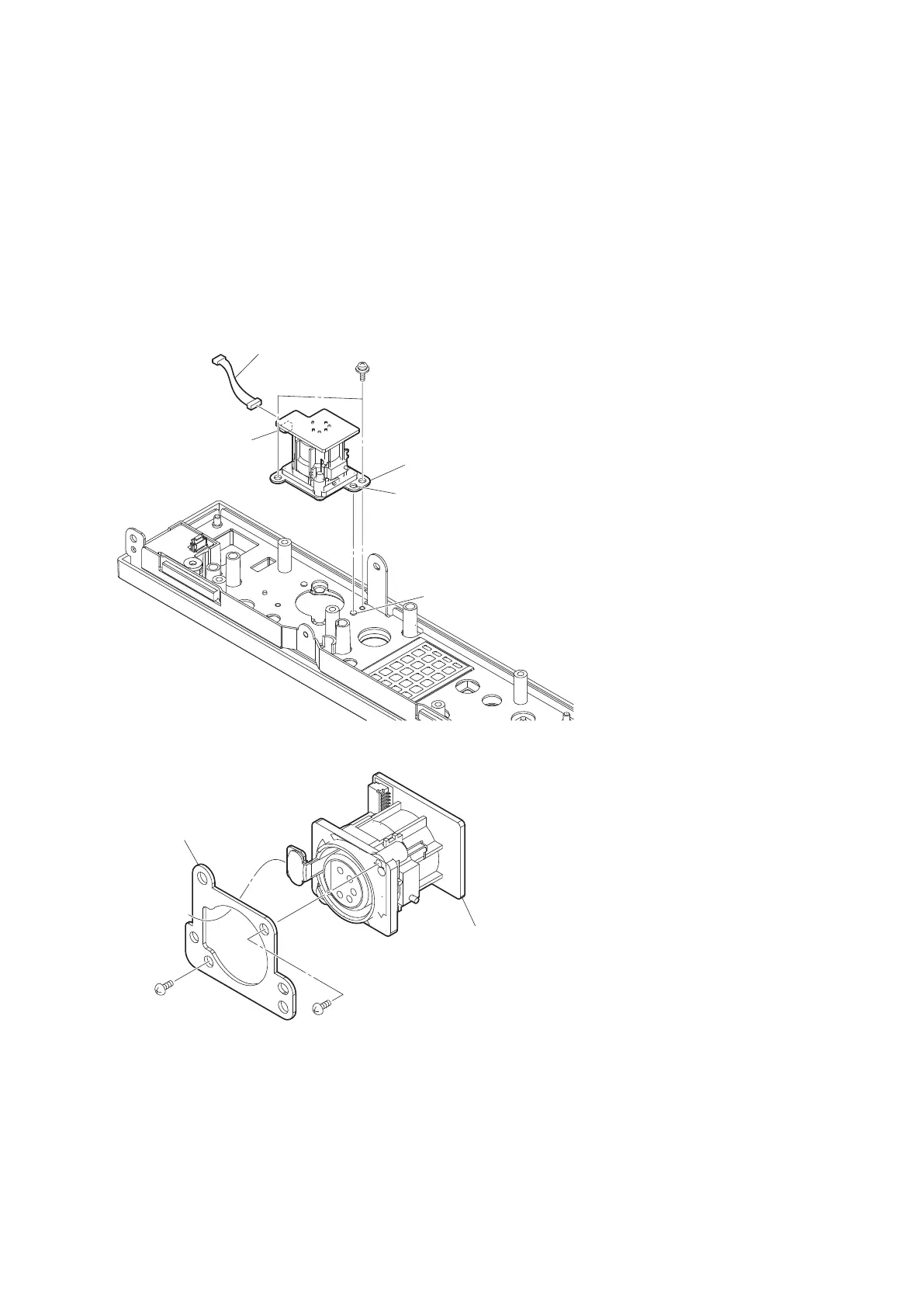

1. Remove the two screws, then remove the CN-3985 board.
2. Disconnect the harness from the connector (CN2) on the CN-3985 board.
CN-3985 board
Boss
Hole
CN2
PSW
3 x 6
Harness
3. Remove the two screws, then remove the INCOM plate from the CN-3985 board.
CN-3985 board
INCOM plate
BTP
3 x 10
BTP
3 x 10
4. Install the removed parts by reversing the steps of removal.
HXCU-FB80
3-22
To Next Page
