Sony HXCU-FB80 Service Manual

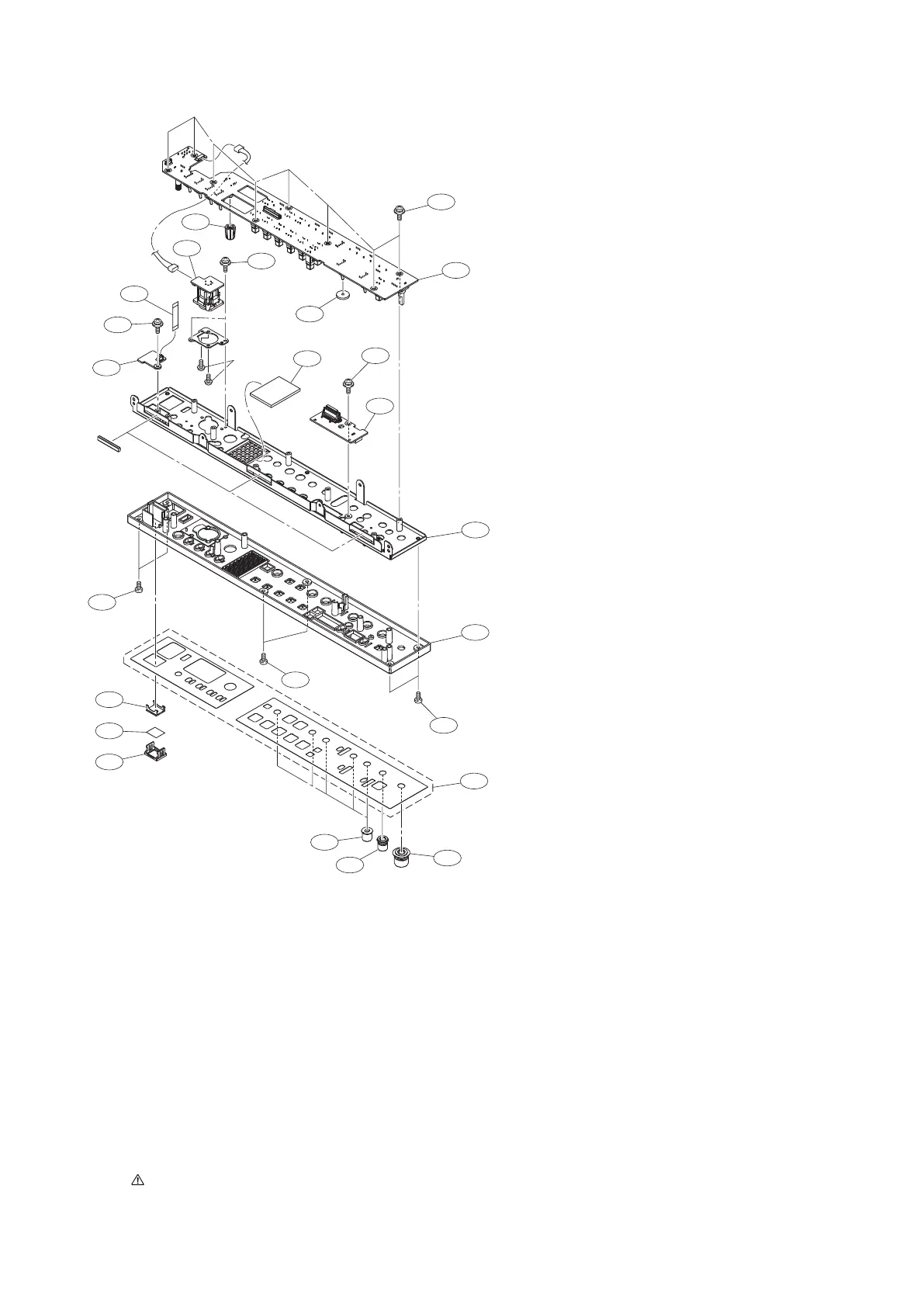

Front Panel
BTP
3 x 10
517
512
516
515
512
512
509
511
510
507
505
506
518
517
519
517
508
502
503
514
517
513
504
501
No. Part No. SP Description
501 A-2195-910-A s LED-544 MOUNT
502 A-2195-911-A s LED-545 MOUNT
503 A-2195-912-A s CN-3985 MOUNT
504 A-2195-921-A s SW-1736 COMPL
505 X-3679-298-2 s KNOB,VOLUME ASSY
506 X-3679-302-3 s KNOB,VOLUME ASSY
507 X-3704-947-2 s KNOB ASSY(S)
508 1-836-689-11 s CABLE, FLEXIBLE FLAT (10 CORE)
509 2-139-192-01 s FRAME, INDICATOR WINDOW
510 2-139-193-02 s WINDOW, INDICATOR
511 2-249-353-01 s COVER, LAMP
512 3-725-295-21 s SCREW, (+) (B3)
513 3-872-590-01 s PORONSHEET(POWER)
514 4-139-232-01 s KNOB, ROTARY ENCODER
515
!
4-299-616-03 s PLATE,FRONT
516 4-299-629-03 s PANEL,FRONT(U)
517 4-382-854-51 s SCREW (M3X6), P, SW (+)
No. Part No. SP Description
518 4-444-791-11 s SHEET,FRONT PANEL(F)
519 4-732-234-01 s FILTER
7-685-547-14 s SCREW +BTP 3X10 TYPE2 N-S
HXCU-FB80
8-8
